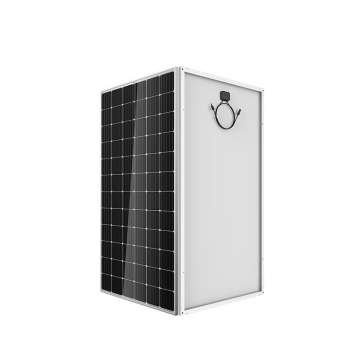

350 watt 72 cell mono solar panels for house
Product Specification:
- Place Of Origin: GUANGDONG,CHINA
- BrandName: TANFON
- MOQ: 1
350 watt mono solar panels Features
1) Nominal 24V DC for standard output.
2) High efficiency.
3) Outstanding low-light performance.
4) High transmission tempered glass.
5) Rugged design to withstands high wind pressure and snow load, easy installation.
6) Aesthetic appearance.
7) Design to meet unique demand of customer.
8) 25 year module output warranty.
| 350 watt 72 cell mono solar panels characteristics | |
| STC: lrradiance 1000W/m2, Module temperature 25℃, AM=1.5 | |
| Module Type | FS350 |
| Maximum power at STC(Pmax) | 350W |
| Optimum operating voltage(Vmp) | 38.8V |
| Optimum operating current(Imp) | 9.09A |
| Open-circuit voltage(Voc) | 47.9V |
| Short-circuit current(Isc) | 9.49A |
| Short-circuit current temperature coefficient | (0.065±0.015)%/℃ |
| Open-circuit voltage temperature coefficient | -(80±10)mV/℃ |
| Peak power temperature coefficient | -(0.5±0.05)%/℃ |
| NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) | 47±2℃ |
| Operating temperature | -40℃ to 85℃ |
| Maximum system voltage | 600V DC |
| Power tolerance | ±3% |
| Size | 1956*992*40mm |
350 watt mono solar panels with highest wattage
Project case
1.2MW mono solar panels roof grid tie project
Factory Pictures
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
