3-phase 30kw Solar System TANFON in Chad Military Base Project in 2016
3-phase 30kw Solar System TANFON in Chad Military Base Project in 2016
October 15, 2018 / Foshan Tanfon
Chad

3-phase 30kw Solar System TANFON in Chad Military Base Project in 2016

We are a professional solar energy system supplier for 11 years. We not only provide the suitable solar solution for our customers, but also our professional installation team support to provide installing service around the world. Our purpose” Quality first, customer first”

Renewable energy sources solar power system 30kw project installation in Chad, Africa.

solar energy project

Our customer this project is about power supply for the house of military base land, there are six to seven houses. Because it is in the remote areas, there is no power supply from the national power grid station. All household appliances rely on power generators and photovoltaic.

The 30kw three phase inverter solar panel system project design as follow:

a) 96 pieces 320W mono solar panel.

b) 2 pieces PV combiner

c) 1 piece 3 phase inverter 30KW 384V100A-380V 50Hz

d) 64 pieces 12V/200Ah gel battery

e) 1 set solar panel mounting rack

f) 1 set pv cables and battery cables

Installation way: 320W solar panel 96pcs, each 16pcs connect in series, 6 groups in parallel connect to H6T-384 PV combiner (six input one output), then connect to the controller(built-in the inverter). 200Ah 12V gel battery 64pcs, 32pcs connect in series, 2 groups in parallel, then connect to the three phase inverter hybrid built-in controller.

Our engineer went to Chad to guide the system installation. When arrived at the project installation, each part had not installed yet, batteries, solar panel, panel rack, inverter all have not been unpacked and were placed in the stock room.

solar power

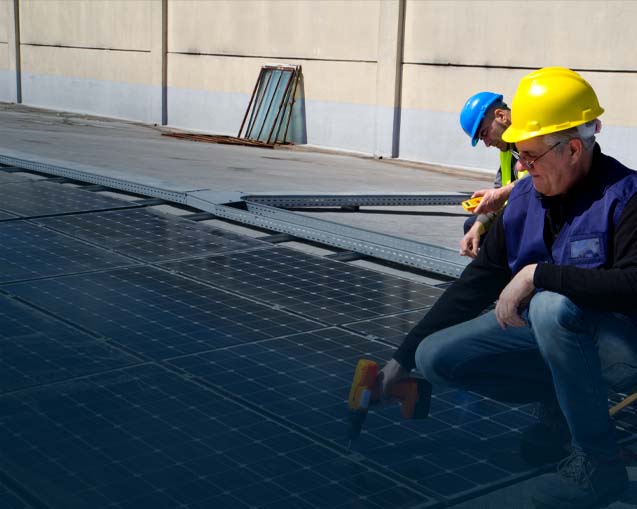

So our engineer and customer worked together to installed the solar panel. Outside is very hot, in the morning just can work 2 hours, the sunshine was very dry, very hot cannot work, so they have rest until afternoon nearset to dusk, then continue working. Because the appliances load is not complete, and the power supply system is incomplete, so in the everning can not work.

solar panel installation

what is solar power

Firstly, 6 to 7 workers were arranged to start transporting solar panels and brackets. After fininshing mounting the solar panel brackets and solar panel, arranged the handling of the batteries and the main machine hybrid inverter. Then debug the lightning protection PV combiner box to the hybrid inverter charging. Batteries 384VDC connect to hybrid inverter for testing. After that testing the voltage is without any problem and the wire polarity is correct, then connect the appliances load to work. And everything goes well and normal. Finally, a 60KW three-phase power supply from the diesel generator was connected to the inverter as a bypass operation, and all work smoothly.

advantages of solar energy

solar powered generator

...
How to install 30kw and 100kw solar energy system for factory use in Argentina
How to install 30kw and 100kw solar energy system for factory use in Argentina
October 14, 2018 / Foshan Tanfon
Argentina

How to install 30kw and 100kw solar energy system for factory use in Argentina



Mr.Pedro from Homaq S.A group .we have contact on wechat from October 2015.

Before order ,have have asking shanghai colleague contact us ,and visit us .



His order is :

TSP30KW  three phase solar power system :

96pcs 300w mono panel+1pc H4T PV combiner+1pc TSP30KW/384V  three phase inverter with controller+

96pcs 12V/200AH gel battery+1set panel rack+1set PV cable+battery cable

1set



TSP8KW three phase solar power system :

36pcs 250w mono panel+1pc H10T PV combiner+1pc TSP8KW/96V  three phase inverter with controller

24pcs 12V/200AH gel battery+1set panel rack+1set PV cable+battery cable

1set



SP8KW single phase solar power system :

36pcs 250w mono panel+1pc H10T PV combiner+1pc SP8KW/96V  three phase inverter with controller

24pcs 12V/200AH gel battery+1set panel rack+1set PV cable+battery cable

1set



SP5KW solar power system :

16pcs 350w mono panel+1pc H4T PV combiner+1pc 5KW/96V solar hybrid inverter with controller+

8pcs 12V/200AH gel battery+1set panel rack+1set PV cable+battery cable

1set



TSP100KW solar energy system:

288pcs 350w mono panel+3pcs H10T PV combiner+3pcs 100A/384V solar controller

1pc T100KW three phase inverter+192pcs 200AH gel battery+1set panel rack+

1set PV cable+battery cable

1set



This all system will install in ground ,so use ground rack;

In Argentina ,there have few kinds electricity power voltage ,in they area ,they use 200 Volts 50 Hz for simple phase, and 380 Volts 50 hz for three phase.

When they receive the goods ,he also have show us the video below:

After 2 months ,they start install ,and have make the video to us with Spanish,This is just a sample display of the solar system for advertising promotion.

Why customer trust TANFON and buy container solar energy system in first time cooperation?

A:1)customer said becouse they have see so many project TANFON install ,believe TANFON’s engineer team ,and quality product .

  1. have visit our factory and confirm we are solar energy system factory ,Can work more confidently.
  2. Choose TANFON your money is safe,your business in safe.

...
