2000w 24v solar hybrid inverter
2000w 24v solar hybrid inverter

Solar home lighting system inverter 2000w with charge controller

Solar home lighting system inverter 2000w 24vdc 110V-120VAC with MPPT solar charge controller   Tanfon wall type solar power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 3

Place Of Origin: foshan

BrandName: TANFON SOLAR

MOQ: 5pcs

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

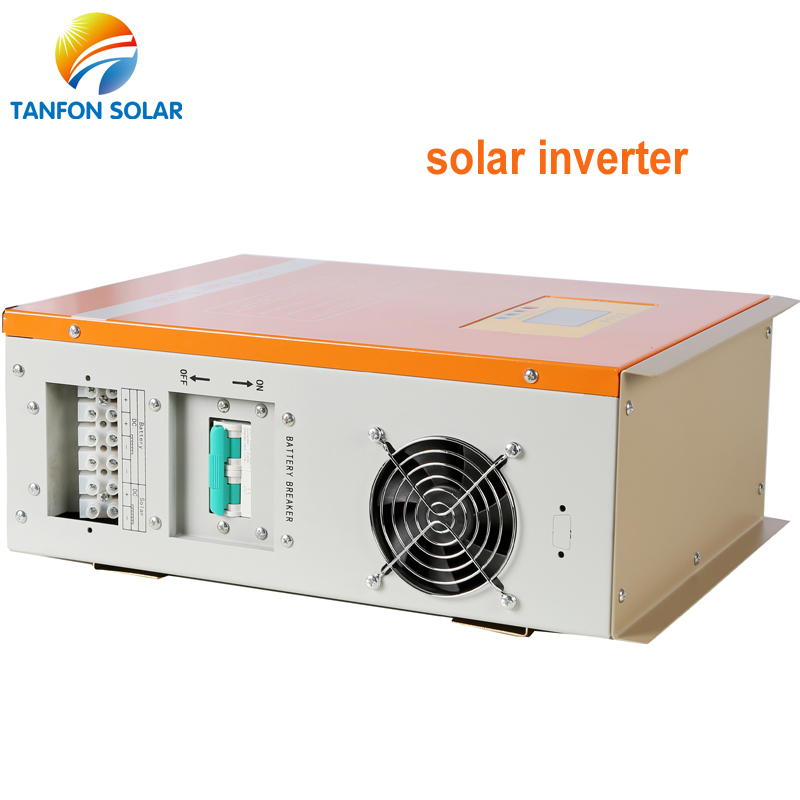

Solar home lighting system inverter 2000w 24vdc 110V-120VAC with MPPT solar charge controller



solar inverter 1000w 2000w 3000w 5000w 6000w

Tanfon wall type solar power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 6kw, other kinds inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.



what is wall-mounted power inverter Feature?

item function
capacity

TANFON inverter promise full KW capacity output,

Have service evidence to choose us to be safer

DSP

 the whole series controlled by program of DSP intelligent chip

LCD

The whole series with automatic AC charger and automatic AC mains switch function.Switch time within 5ms.

Continuous

Stable output voltage

No matter how low or how high the AC input voltage is ,with voltage stabilizer our inverter provides standard 110v or 220v stable output ,which keeps the loading works stably.wide stabilizing range of AC input optional.

Original imported MOS tube

Brand new and imported U.S brand infineon IR MOSFETs are used for the whole series

IR4768,IR3205,IR4310

transformer

Super load capacity:three times peak power of rate power

PCB

Two layers PCB board:real isolated input and output,they will not influence each other during operating.such design is in order to improve the stability of the inverter,and it is easy to detect faults and maintain

NW2000w solar home lighting system inverter data sheet:

Model

WSC1000W WSC2000W WSC3000W WSC5000W WSC6000W

Rated power(W)

1000W 2000W 3000W 5000W 6000W

Rated DC voltage(V)

24V 48V 48V 48V 48V

Line input

Input voltage(V)

145-280V, 90-127V

Charge current(A)

10-30A

Inverter output



Output voltage(V)

110V or 220VAC±5% &5V,12V DC

Output frequency

50Hz/60Hz±1%

Wave form

Pure Sine Wave, THD<4%(Full Load)

Solar input

Maximum voltage(V)

42V or 88V or 176V

Rated power(Wp)

1000W 2000W 3000W 5000W 6000W
Solar Controller

Charge current(A) 60A
MPPT range(V) 24v(20-34)48v(40-68)
Charging efficiency

90%-95%, Peak on 97%

Other        Over charge protective voltage of battery(V) 24V(27.4),48V(54.8)
Over charge recover-voltage of battery(V)

24V(27.4),48V(54.8)

Voltage drop between solar

module and battery(V)

≤0.5V

Voltage drop between loads

and battery(V)

≤0.25V

Start speed of cooling fan

Have

Environment Humidity

0-90% Maximum,non-condensable

Protective Functions Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
Control method

MPPT

Size &package size:D*W*H(mm) 290*125*430mm 355*185*470mm
 N.W&G.W(kg) 20KG/23KG 25KG/28K 30KG/33KG 32KG/35KG



Application: solar hybrid inverter with solar controller built-in, use for home solar system,school ,farm etc.



Need more other power and type design inverter, please send inquiry to us, we will reply as soon as possible within 12 hours.

solar inverter connect way



Why Choose TANFON Products?

1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.

welcome to Get more Our Thailand factory Test report feedback



factory partner in Thailand

Customer Feedback

after test our inverter buy quantity order

good quality 2000w MPPT solar inverter

2000w solar MPPT inverter

Customer Visiting TANFON factory:

customer visit inverter factory

FAQ

Q1.Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.

Q2.All products have a warranty?
A2.YES, All products are at least 2 years warranty.

Q3.What is the shipping way?
A3.DHL, UPS, TNT, EMS, FedEx, Ship by sea.

Q4. What is the payment method?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/MoneyGram/Alibaba can also be used.

Q5.Can we design packaing?
A5.YES. We can customer's own packing

Q6.Can we add our logo on products?
A6.YES.you can add your logo on products.

Q7.Can we customize product?
A7.YES.OEM&ODM.

Q8.Are there some optional function for your inverter?
A8.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.

Q9.what is TANFON inverter after sales service
A9.during the warranty ,ship free PCB by DHL or FEDEX.

check more service case,you will know more about TANFON.

Q10.what is your trade Asusurance
A10:100% product quality protection
        100% product on time shipment protection
        100% payment protection for your covered amount
 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!

Load the container order picture:



solar inverter quqnaity packing and shipment We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
