150kw low frequency three phase inverter with isolation


Product Specification:

  • Place Of Origin: foshan
  • BrandName: TANFON SOLAR
  • MOQ: 1pc
See Price

150kw low frequency three phase inverter with isolation

3phase inverter compare

Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter ,low frequency three phase inverter, controller, battery ect.

 low frequency three phase  inverter feature

Tanfon three phase inverter with IGBT material functions:

1. With AC reactor  (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristorcharging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. The Chinese/English language operation interface for choice.

8. Touching display

9. IGBT brand: Mitsubishi (import from Japan)

Thyristor charging brand: Simon Kang Brand(import from German)

10.  low frequency three phase inverter with transformer ,IGBT materials ,Isolation, output reactance,easy take hostipal's Surgical equipment

Low frequency three phase inverter power electric 150KW  picture

three phase inverter

Capacity: 1KW--200KW low frequency three phase inverter

1) Super wide input voltage: 285V-475V

2) Completely controlled by CPU, LCD automatic page turning display

3) Protection against output short-circuits; against overload, and when you throw off its load, it will turn on the unit automatically.

4) Working for single phase and three phases.

5) Also can be designed the hybrid typw, with charger built-in, its charging current is 10A----156A.

6) Make it with 3 pcs PCB box, it is more stable design.

7) Because the low frequency three phase  inverter has anti-inductive spare parts, it is easy to carry the precision equipment of the hospital.(3phase inverter more case, please log here)

Tanfon low frequency three phase inverter insist using high quality material
  • IGBT

  • AC reactor

  • AC filter capacitor

  • Simon Kang Brand(import from German)

  • Thyristorcharging IGBT converter

  • AC and DC fuse

  • Mitsubishi(import from Japan)

  150kw inverter

150KW power electric three phase inverter specification

TANFON low frequency Three Phase Inverter

Model 150K(low frequency three phase inverter)
Power 150000W
Power Factor 0.8
Input Phase 3 phase 4 wire and ground
Voltage Range 380V±20%(3 phase), phase voltage 220V
Frequency Range 45-65Hz
Rectifier 3 phase 6 pulses, 12 pulses is optional
Output Phase 3 phase 4 wire and ground
Wave form Pure sine wave
Crest Factor 3:01
Rated Voltage 380/400/415V optional ±1% for static load, 5% forfluctuant load
Phase Voltage setting 200-244VAC, pls confirm when order
Transient Response ±5%,10ms
Frequency 50/60 Hz ±0.05%
Total-harmonic distortion < 3% linear load, <5%(nonlinear load)
short circuit current Short current for 0.1s(200% current)
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal
Battery Battery Maintenance free lead-acid cell
DC Voltage 384V
Max Charge Current 6-30A adjustable
Bypass Type Static state +manual maintenance bypass
Input Phase 3 phase 4wire and ground
Input Voltage Range 15% - 25% (the front control panel selectable)
Transfer Time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency Whole unit >85%
Inverter 93
Remote Signaling Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Communication Interface RS232 (SNMP, modem optional)
Running Temperature 0-40 degree Celsius
Relative Humidity Less than 95% (without condensing)
Noise at 1 M Less than 60dB
Degree of protection IP20
Applicable Standards EN50091-1-EMC, EN50091-2LIV.A
Product Size(mm)&Weight(Kg)

1500*840*1800mm 1000KG

Package Size(mm)&Weight(Kg)

1650*1010*1880mm 1080KG



low frequency Three phase inverter for solar project

20kw power inverter

low frequency Three phase inverter feedback

single phase to 3phase inverter feedback

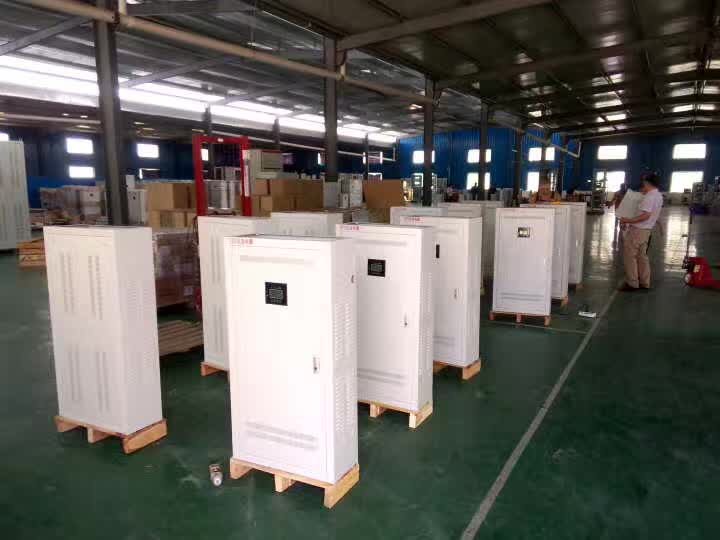

Tanfon low frequency three phase Inverter Factory

three phase inverter factory

Tanfon low frequency three phase Inverter Factory in Foshan, welcome to visit our factory.  (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)



Low frequency three phase inverter produce:

Low frequency three phase inverter packing:

three phase solar inverter quantity order

Tanfon Low frequency inverter certification:

solar

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
