Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind turbine hybrid power system,.
For solarwinds system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Why Choose Tanfon?
|TANFON WSH1KW hybrid power system: 250w solar + 600w wind|
Solar panel power: 250W + Wind turbine kit: 600W
Suitable for daily power consumption: 1.6-3.8KWH Allowable Max Loads power: 1000W

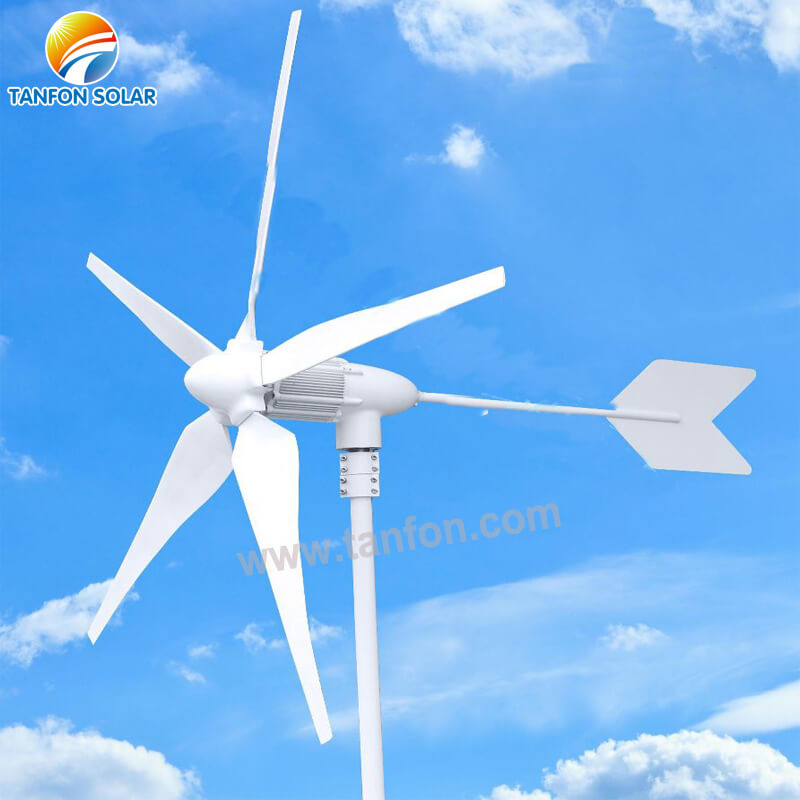

Windmill electric generator (Qty: 1pc)
Windmill electric generator Guy cable pole
Height: 3.6m tower
Wind turbine generator pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.
Easy to install
Solar Panel power(Qty: 1pc)
FS250W mono solar panel(poly optional)
Vmp: 30V Voc: 36V Imp: 8.67A
Size: 1640*992*40mm 25 years life time (CE RoHS ISO)
Coated steel Glass: 3.2mm Tem pered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%
A Grade SUNTECH cells of high efficiency 20%
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Solar wind turbine system controller (QTY: 1pc)
Input 250W solar power + 600W wind power
DC 48V input; MPPT intelligent control
Protection Function: Solar reverse charge protection, Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.
Solar wind turbine system Battery (QTY: 2pcs)
Capacity: 12V/150AH, full sealed wind power gel battery
Service life: 6-8 years Size: 483*170*219mm
Connect way: 4pcs connect in series connect to inverter

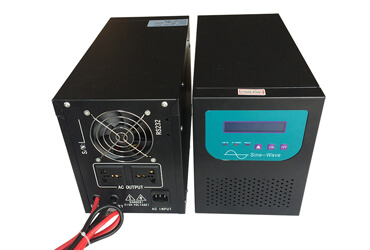

Solar wind turbine inverter (QTY: 1pc)
Rate output Power: 1KW pure sine wave
DC: 24v; AC: 110v or 220v
With AC charger build-in Protection against overload, short circuit, discharger, etc.
Double protection, import MOS tube and optocoupler
Solar wind turbine system Cables (QTY: 1 set)
1) 2pcs 16mm2*35CM battery cable connect
2pcs 16mm2*1M battery cable connect
2) 4mm2 PV cable 50M
3) terminals and MC4

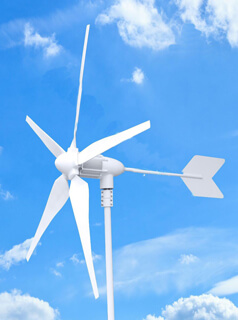

Solar wind turbine kits
Solar Wind Turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.
Solar Panel Power
|Solar PV panel characteristics|
|Maximum power at STC(Pmax)||250W|
|Optimum operating voltage(Vmp)||30V|
|Optimum operating current(Imp)||8.33A|
|Short-circuit current temperature coefficient||(0.065±0.015)%/℃|
|Open-circuit voltage temperature coefficient||-(80±10)mV/℃|
|Peak power temperature coefficient||-(0.5±0.05)%/℃|
|NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)||47±2℃|
|Operating temperature||-40℃ to 85℃|
|Maximum system voltage||600V DC|
|STC||Irradiance 1000W/m2, Module temperature 25℃, AM=1.5|
|TANFON Off Grid Solar Wind Turbine Hybrid System Project|

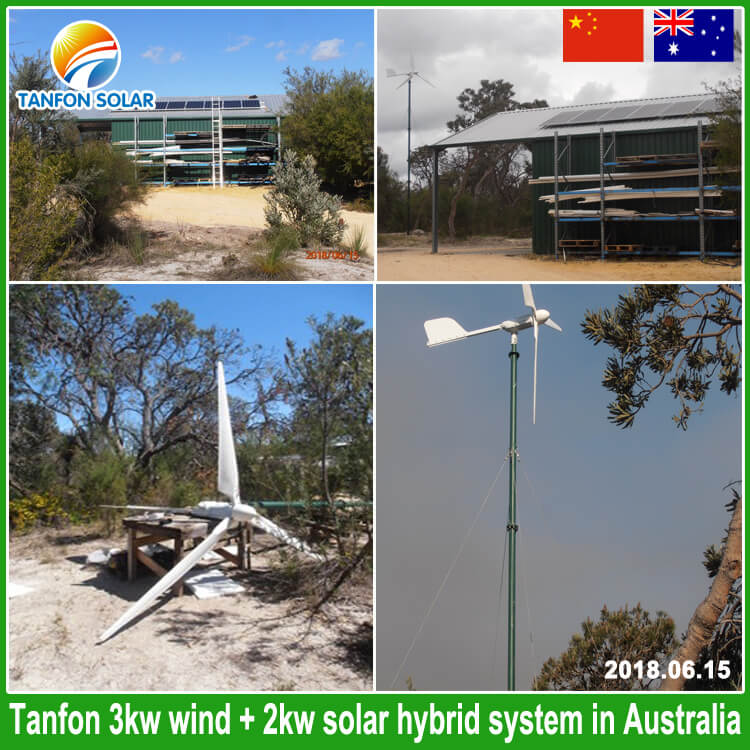

Tanfon 5kw off grid Solar Wind turbine hybrid system installation in Australia (3kw windmill electric generator and 2kw solar panel power system for home use)
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar wind hybrid system, solar and wind energy.
For solar wind hybrid system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.
|Solar wind turbine FAQ|
Q1: If I want to buy a Off grid solar wind turbine system, what details I need pay attention to?
A: See if the wind speed can reach the starting speed of the home wind turbine kit; the total power loads you want to carry.
Q2: For home use, which one is better?
A: Normally we sell 3kw & 5kw off grid solar wind turbine system for home use.
Q3: What kind of tower can i choose?
A: Windmill electric generator Guy cable tower & Stand Alone Tower optional
Q4: How many days for delivery?
A: The 1kw off grid solar wind turbine system normally for 10days. quantity order need about 25days.
Q5: What kind of package?
A: Off grid Solar wind turbine system products, Export Standard Packing: suitable for tough handing and transport
Q6: About the payment?
A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)
30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C
