Home Solar 1kw PV Panels Wind Hybrid Storage System with 1000w Win Power

Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: Tanfon Service Center
  • MOQ: 1 set,Accpet OEM &ODM
See Price

solar wind turbine windmill electric generator 1kw solarwinds

solar wind turbine

Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind turbine hybrid power system,.
For solarwinds system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why Choose Tanfon?


  • Each set solar power system has tested by power-off test of 100 times per hour.


  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.


  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.
TANFON WSH1KW hybrid power system: 250w solar + 600w wind

Solar panel power: 250W + Wind turbine kit: 600W

Suitable for daily power consumption: 1.6-3.8KWH    Allowable Max Loads power: 1000W

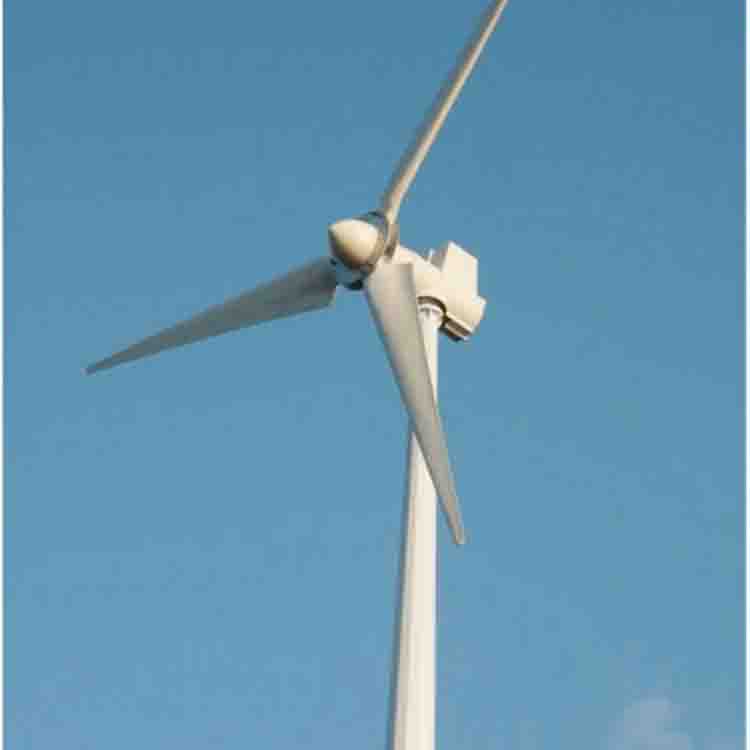

Windmill electric generator (Qty: 1pc)

solar wind turbine

Model FD-600
Rated power 600W
Starting wind speed 3m/s
Cut-in wind spped 3.5m/s
Rated wind speed 12m/s
Security wind speed 45m/s
Rated DC voltage 24V
Rated speed 650r/m
Rotor diameter 1850mm
Protection Electromagnetic torque control and electricity brake
Type 3phases permanent magnetism synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
Generator weight(kg) 23KG

Windmill electric generator Guy cable pole

Height: 3.6m tower

Wind turbine generator pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.

Easy to install

solarwinds pole

solar wind turbine

Solar Panel power(Qty: 1pc)

FS250W mono solar panel(poly optional)

Vmp: 30V    Voc: 36V      Imp: 8.67A

Size: 1640*992*40mm    25 years life time  (CE RoHS ISO)

Coated steel Glass: 3.2mm Tem pered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%

A Grade SUNTECH cells of high efficiency 20%

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack for solar wind turbine system

solar wind turbine controller

Solar wind turbine system controller (QTY: 1pc)

Input 250W solar power + 600W wind power

DC 48V input; MPPT intelligent control

Protection Function: Solar reverse charge protection, Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.

Solar wind turbine system Battery (QTY: 2pcs)

Capacity: 12V/150AH, full sealed wind power gel battery

Service life: 6-8 years  Size: 483*170*219mm

Connect way: 4pcs connect in series connect to inverter

gel battery for solar wind turbine system

solar wind turbine inverter

Solar wind turbine inverter (QTY: 1pc)

Rate output Power: 1KW pure sine wave

DC: 24v; AC: 110v or 220v

With AC charger build-in Protection against overload, short circuit, discharger, etc.

Double protection, import MOS tube and optocoupler

Solar wind turbine system Cables (QTY: 1 set)

1) 2pcs 16mm2*35CM battery cable connect

    2pcs 16mm2*1M battery cable connect

2) 4mm2 PV cable 50M

3) terminals and MC4

solar wind turbine cables

Solar wind turbine kits

 windmill electric generator

Solar Wind Turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

Solar Panel Power

solar wind turbine

What's more?

Coated tempered glass replace previous tempered glass, power can improve 5 to 10 watts.

Coated glass can effectively reflect the infrared, Reduce the working temperature of the component, thus reducing the power loss of the component and reducing the influence of the high temperature on the service life of the component raw material. At the same time a large number of UV absorption, Reduce UV damage in EVA and backplane raw materials. reduce UV on the EVA, the backplane of the raw material damage.

Solar PV panel characteristics
  Module Type   FS250-24v
  Maximum power at STC(Pmax)    250W
  Optimum operating voltage(Vmp)   30V
  Optimum operating current(Imp)   8.33A
  Open-circuit voltage(Voc)   36V
  Short-circuit current(Isc)   9.68A
  Short-circuit current temperature coefficient   (0.065±0.015)%/℃
  Open-circuit voltage temperature coefficient     -(80±10)mV/℃
  Peak power temperature coefficient   -(0.5±0.05)%/℃
  NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)      47±2℃
  Operating temperature      -40℃ to 85℃
  Maximum system voltage   600V DC
  Power tolerance   ±3%
  STC   Irradiance 1000W/m2, Module temperature 25℃, AM=1.5


TANFON Off Grid Solar Wind Turbine Hybrid System Project

Tanfon 5kw off grid Solar Wind turbine hybrid system installation in Australia (3kw windmill electric generator and 2kw solar panel power system for home use)

solar wind turbine
solar wind turbine system package

solar wind turbine

TANFON Company

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar wind hybrid system, solar and wind energy.
For solar wind hybrid system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

solarwinds energy

Solar wind turbine FAQ

Q1: If I want to buy a Off grid solar wind turbine system, what details I need pay attention to?

A: See if the wind speed can reach the starting speed of the home wind turbine kit; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 3kw & 5kw off grid solar wind turbine system for home use.

Q3: What kind of tower can i choose?

A: Windmill electric generator Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A: The 1kw off grid solar wind turbine system normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A: Off grid Solar wind turbine system products, Export Standard Packing: suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C
