solar power 5000w generator 3phase photovoltaic solar panels system

solar power 5000w generator 3phase photovoltaic solar panels system

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON SOLAR

MOQ: 1 set

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

solar power 5000w generator 3phase photovoltaic solar panels system



5000w solar power

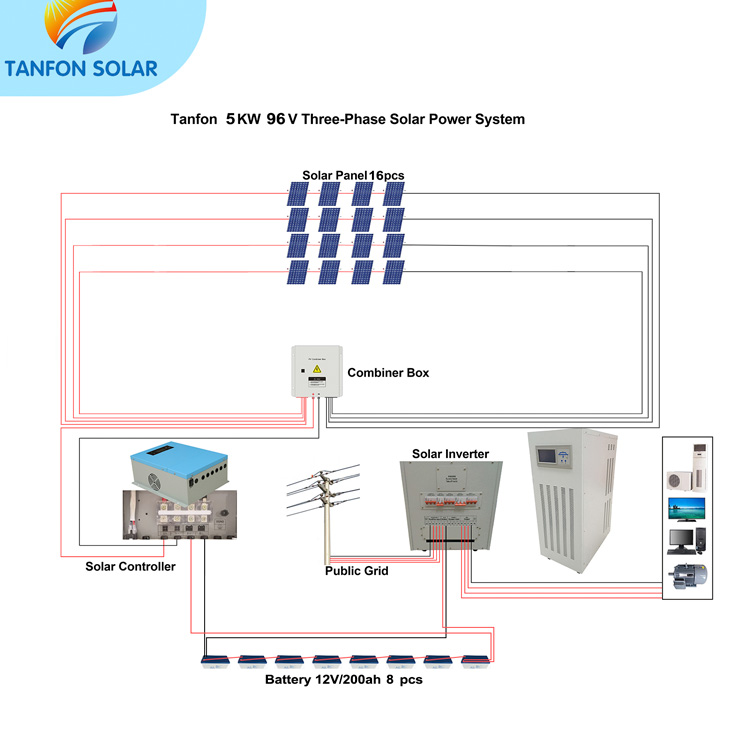

Solar Power System Three Phase Output Complete Kit Connection Diagram



Product Description





How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar power system?

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

Product Details



Three phase off grid solar power system TSP-5KW

solar panel mono 300w

Solar Panel (Quantity: 16 pieces)

FS350W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 1 piece)

Model: H4T-96v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

pv combiner 10 input 1 output

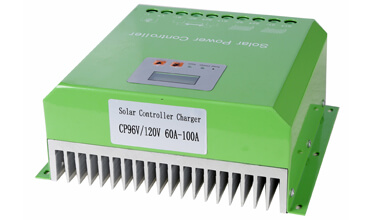

solar controller 100A

Solar Controller (Quantity: 1 piece)

MPPT controller model: 96v/60A

Charging efficiency; 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 16 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size:522*240*219mm

200Ah solar battery

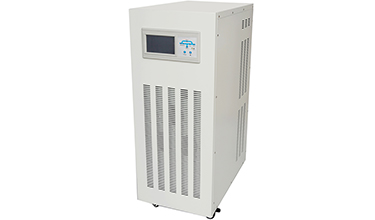

solar inverter

Solar Inverter (Quantity: 1 piece)

Pure sine wave inverter: 5kw, DC input: 96v

AC charger 10-30A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P: 220V/380VAC

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

7pcs 16mm2*35CM battery cable

2pcs 16mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

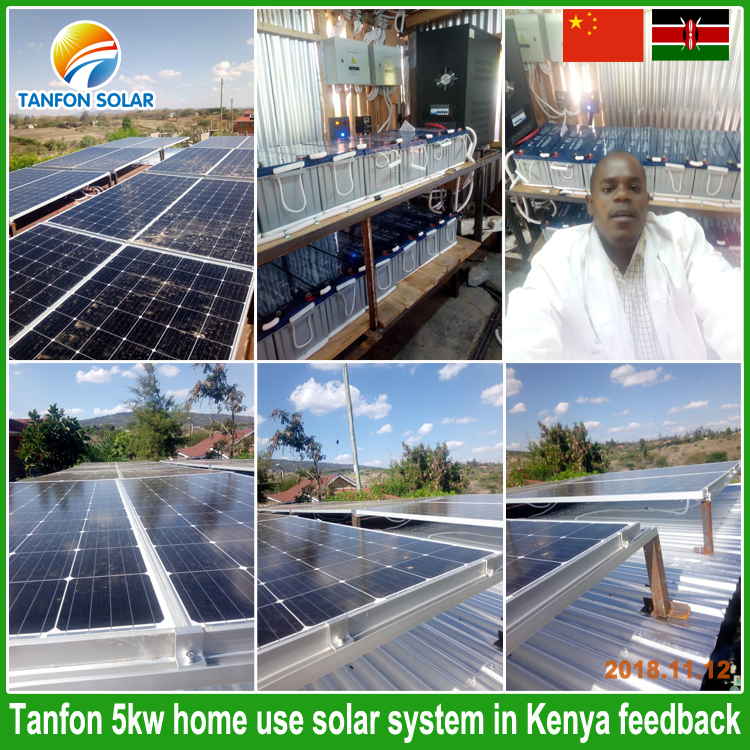

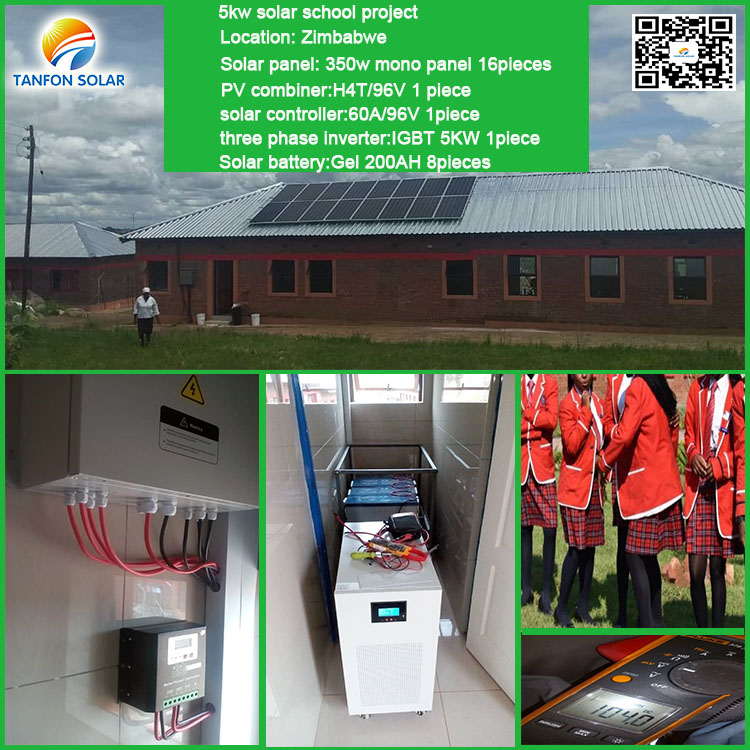

Solar Power System Projects

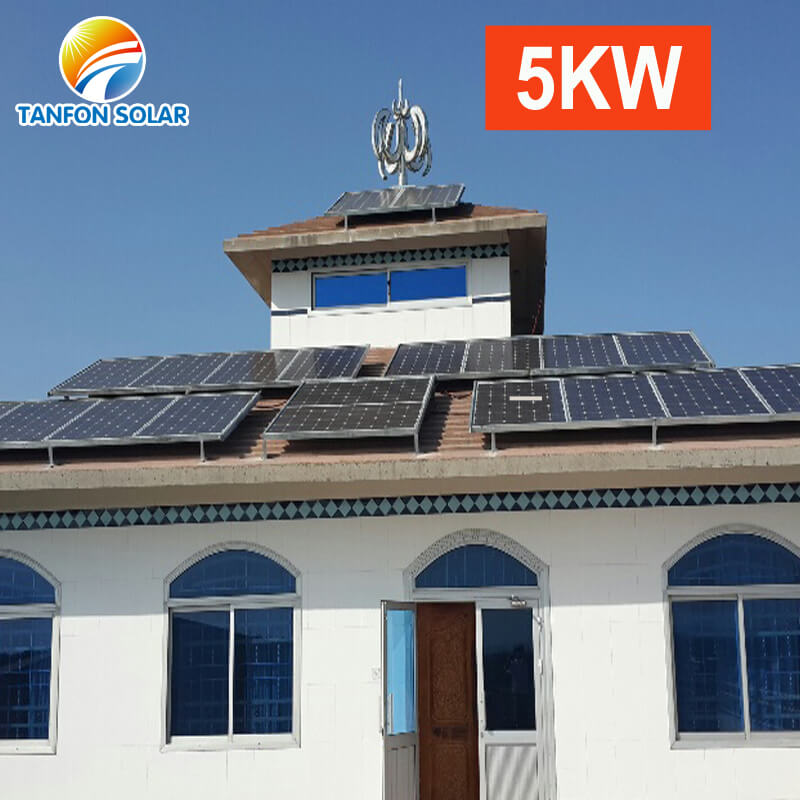

5kw three phase solar system

check here to know more about 5kw three phase solar power generator

5kw three phase solar system

Why Choose Tanfon?

5kV three phase energy

Quality:

Service:

Efficiency:

Solar Power System Feedback



6kw solar power system

Tanfon Factory Pictures



3 phase solar system

100kw solar system packaging

Solar Products FAQ



Q: What can be included for this system from TANFON?

A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 5kw system may be with different configuration.

Q: Who arranges the shipping?

A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
