Why Choose Tanfon?
30kw 3-phase solar system for government project, factory, farm, office, hotel, school used projects specification
Solar Panel (Quantity: 78 pieces)
FS380W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.25A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
PV combiner (Quantity: 1 piece)
Model: H6T-360v Multiple PV strings inputs
Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Solar Controller (Quantity: 1 piece)
MPPT controller model: 360v/100A
Charging efficiency: 90%-95%,
Charging mode, intelligent control.
Various protection functions

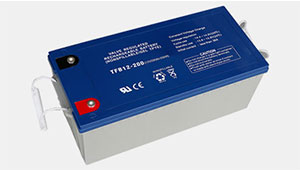

Full sealed Solar power gel battery,
Service life: 6-8 years ,
Quantity: 60 pieces
Solar Inverter (Quantity: 1 piece)
Pure sine wave inverter 30KW/360VDC input
Use copper transformer; Bypass function with AC charger;
Product size: 900*600*1380mm Weight:550KG
Output: 220V 380V 415V 50/60HZ
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Cables (Quantity: 1 set)
58pcs 16mm2*35CM battery cable
4pcs 16mm2*1M battery cable
4mm2 PV cable 200M
Terminals and MC4
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
We provide complete set solar power system that include all parts for customers, installation tool can be choose. Customers can easy install the system according to our detailed connect diagram and user's manual.
Tanfon Three Phase Inverter Advantage
Tanfon Solar Panel Advantage
check here to know more about off grid three phase solar power system 30kw
Coated tempered glass replace previous tempered glass, power can improve 5 to 10 watts.
Coated glass can effectively reflect the infrared, Reduce the working temperature of the component, thus reducing the power loss of the component and reducing the influence of the high temperature on the service life of the component raw material. At the same time a large number of UV absorption, Reduce UV damage in EVA and backplane raw materials. reduce UV on the EVA, the backplane of the raw material damage.
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !

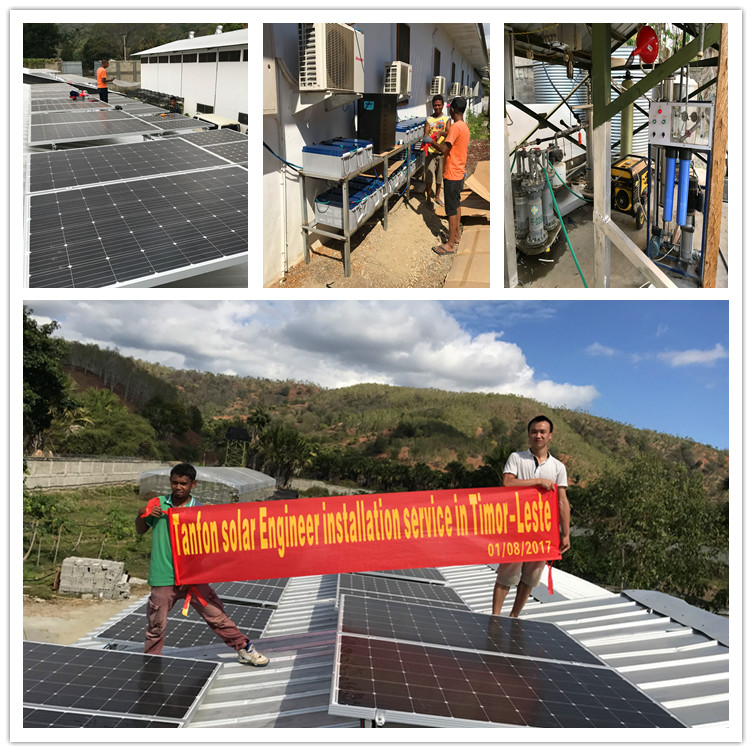

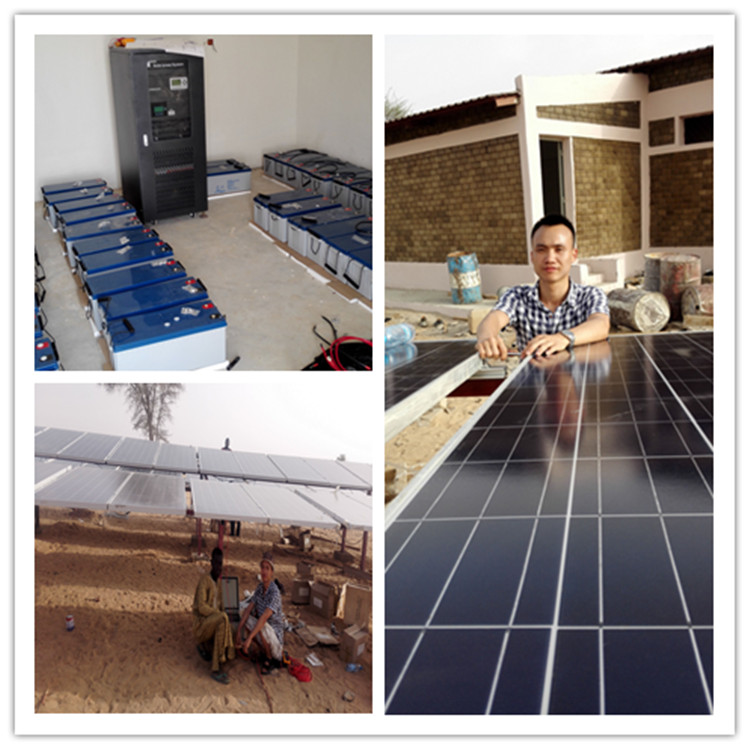

2) With a professional installation team, Have went to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation
Our colleagues also are from African Sales Elite, they are good at polyglot language, we can be better service for our customers from all over the world.
3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
4) We insist on using good quality raw material whenever and wherever.
We have offered many government projects in many countries. Our products are produced according to the quality of the government projects.
5) With customer’s’ praise as an assurance, Tanfon is a guaranteed brand.
6) Our company's philosophy is: one-stop solar energy service platform

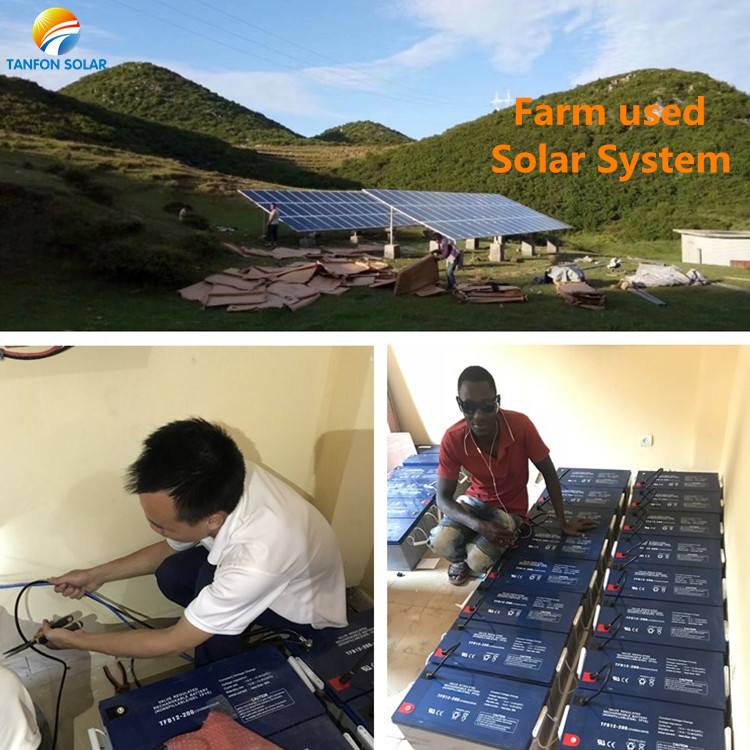

Solar system high efficiency working feedback.
TANFON SOLAR Advantage
a. Rich experienced.
Our company has over 12years experience in study, development, production and installation. Only if you have problem, we can solve it by the fastest speed.
b. Advanced technology.
We have the most advanced R&D team to make sure each product are in best performance, including solar street light, solar garden light, led street light etc.
We dare to promise you the best quality in China. Our QA & QC department operate the inspection strictly. ISO9001 management system was absolutely executed.
We are factory. Here we can guarantee you the best price.
e. Delivery time.
The production line is automatic. The work efficiency is high. Our transfer of personal is <1% per year. You won't be upset to let experienced worker to produce your goods, right?
f. After-sale service.
We have special after-sale service. Once you have problem with our solar lights, pls contact the sales. They will give feedback to the after-sale service department and engineer at once. We promise to give you a satisfied answer within 24h.
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
Q: What can be included for this system from TANFON?
A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
Q:what is TANFON solar system after sales service?
A: during the warranty ,Solar panel--ship free new one ;battery—ship the new one ,
Inverter/controller---ship free PCB by DHL or Fedex.
Q:what is your trade Assurance?
A:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
Customers visit Tanfon
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
