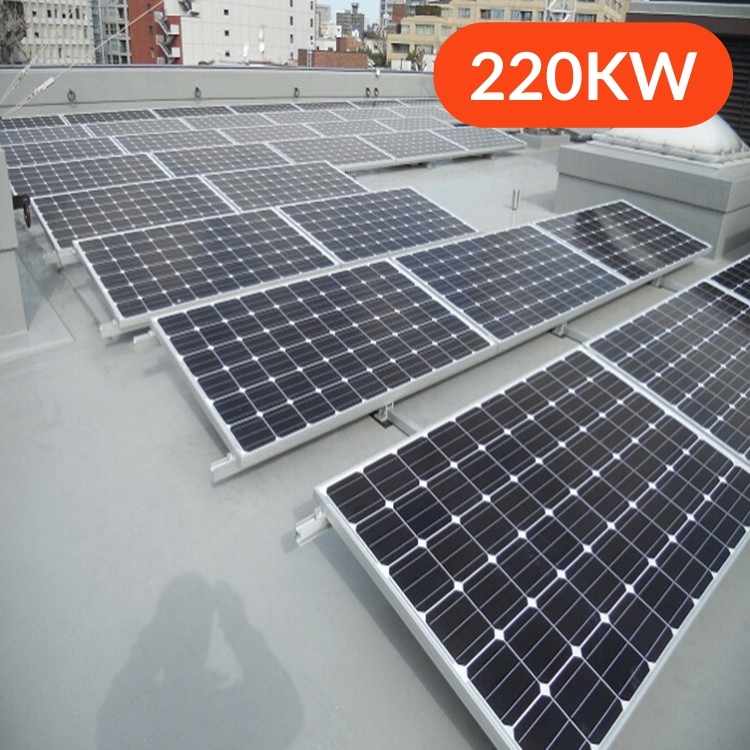

220KW Off Grid Solar Power System With Battery Storage Tanfon Solar Manufacturer since 2007, serving 160 countries, solar panel, solar inverter, solar battery. Home Solar System, Industrial &Commercial Solar System. Tanfo
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Solar Manufacturer
MOQ: 1 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
Tanfon Solar Manufacturer since 2007, serving 160 countries, solar panel, solar inverter, solar battery. Home Solar System, Industrial &Commercial Solar System.
Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.
For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification
For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project，solar goverment project etc)
we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Malaysia,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.
For our Global service in Thailand,Malaysia,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local
|Solar Energy Ssytem Product Details|
Solar Panel (Quantity: 520 pieces)
FS380W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.75A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
PV combiner (Quantity: 4 pieces)
Model: H10T-360v Multiple PV strings inputs
Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Solar Controller (Quantity: 4 pieces)
MPPT controller model: 360v/150A
Charging efficiency: 90%-95%,
Charging mode, intelligent control.
Various protection functions
Solar Battery (Quantity: 180 pieces)
Full sealed Solar power gel battery,
Service life: 6-8 years ,
Solar Inverter (Quantity: 1 piece)
Power Inverter: 220kw DC input: 360v
Output: 380v 220v 50Hz （3phase ）
Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Cables (Quantity: 1 set)
25mm2 battery cable 180pcs
6mm2 PV cable 800M
battery terminals and MC4
System cable 25mm2 200M
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
Why Choose Tanfon?
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
