24v 200ah lithium solar batteries storage system

24v lithium ion 200ah lithium solar batteries storage system   Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service. For the products, Each set solar power system has p

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

24v lithium ion 200ah lithium solar batteries storage system



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Malaysia,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Malaysia,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

Click View Solar System Installation Case

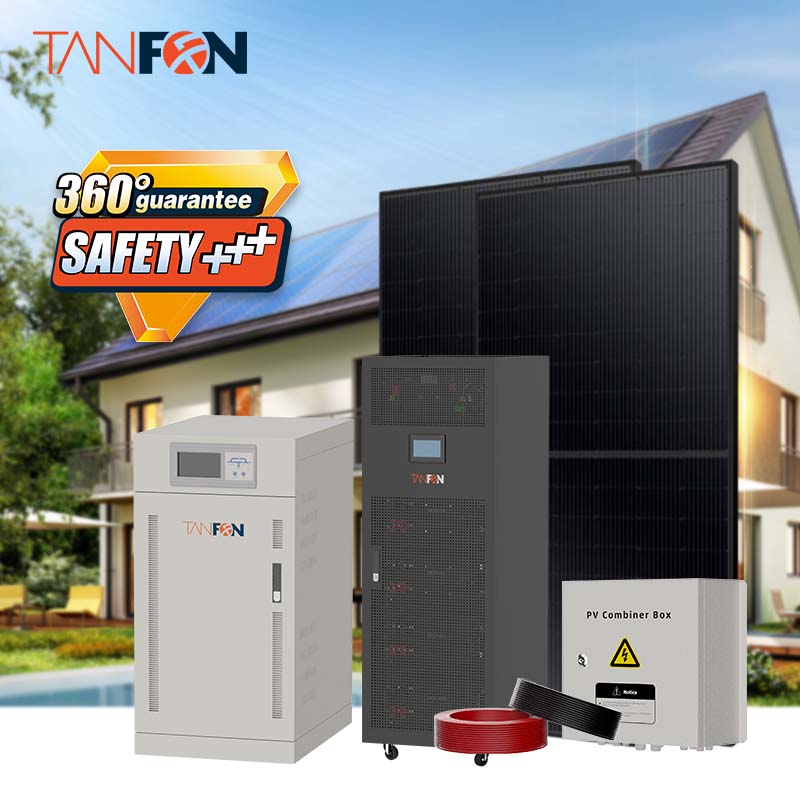

35KW Off Grid Solar Power Product Details



30KVA Off Grid Solar System

Solar Panel (Quantity: 85 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 1 piece)

Model: H6T-384v Multiple PV strings inputs

Simplify wiring between PV array and controller,

protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 400*425*145mm

30KVA Off Grid Solar System Price

30KW Off Grid Solar System Price

Solar power Controller (Quantity: 1 piece)

MPPT controller model: 360V/100A

Charging efficiency; 90%-95%,

charging mode, intelligent control,

various protection functions

Solar Inverter (Quantity: 1 piece)

Pure sine wave inverter:

35kw(full power single phase)

DC input: 360v       AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P: 220V 380V 415V 50/60HZ

Product Size: 785*580*1197mm

30KW Off Grid Solar System Price

Lithium Battery

Capacity: 24v 200ah

Full sealed Solar power lithium battery

Service life: 6-8 years ,

Size: 522*240*219mm

Solar Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

30KW Three phase Solar System

30KW Off Grid Solar System

solar power plant Cables (Quantity: 1 set)

62pcs 32mm2*35CM battery cable

4pcs 50mm2*1M battery cable

4mm2 PV cable 200M

Terminals and MC4



If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.



24v lithium ion 200ah lithium solar batteries storage system



30KW Three phase Solar System



solar system projects:



30KW Off Grid Solar System

Click Watch Solar Installation Case Video
