Three Phase Solar System
70KW 70KVA Solar System Price Off Grid Solar Power Panel With Battery Storage
  • 70KW 70KVA Solar System Price Off Grid Solar Power Panel With Battery Storage

70KW 70KVA Solar System Price Off Grid Solar Power Panel With Battery Storage


Product Specification:

  • Place Of Origin:
  • BrandName: TANFON
  • MOQ: 1 set,Accpet OEM &ODM
  • Certificate: ISO, ETL, TUV, CE, RoHS
  • Payment: T/T, L/C, Paypal, Western Union
See Price

 70KW 70KVA Solar System Price Off Grid Solar Power Panel With Battery Storage



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Malaysia,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Malaysia,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

Click View Solar System Installation Case



70KW Solar Power System Product Details

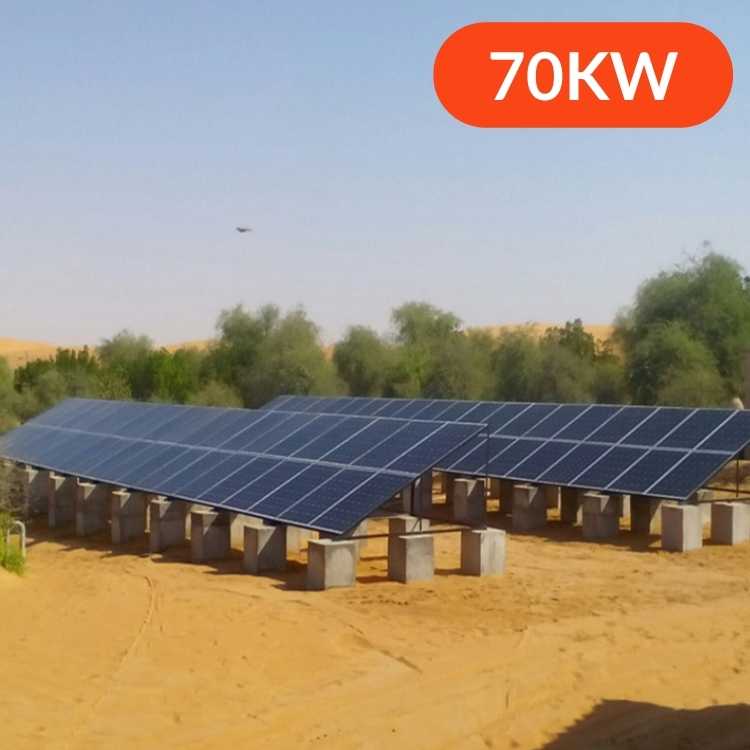

Off Grid Solar Power System 70KW With Battery Storage

solar panel mono 300w

Solar Panel (Quantity: 208 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 2 pieces)

Model: H8T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

PV combiner 8inputs

solar energy system

Solar Controller (Quantity: 2 pieces)

MPPT controller model: 360v/100A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 180 pieces)

Capacity: 2V/1000AH

Full sealed Solar power gel battery,

Service life: 8-10 years ,

Size: 479*175*338mm

solar off grid battery

30kw inverter 3 phase 380V output

Solar Inverter (Quantity: 1 piece)

Pure sine wave inverter 70KW/360VDC input

Use copper transformer; Bypass function with AC charger;

Product size: 1100*897*1478mm        Weight:650KG

Output: 220V 380V 415V 50/60HZ

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

180pcs 16mm2*35CM battery cable

16pcs 16mm2*1M battery cable

4mm2 PV cable 400M

25mm2 battery cable 100M

Terminals and MC4

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.



Get 70KVA Solar Power System Price Now



Solar Power System Projects





80kw solar project case

Please check here to know more cases about this 80kw

Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)

60kw three phase solar power system

Why Choose Tanfon?

3 phase solar system

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



Tanfon Factory Picture



3 phase solar system

100kw solar system packaging

Click Watch Solar Installation Case Video



Solar Products Certificate



solar products
