100kw Rural Off-Grid Solar System


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: Tanfon Service Center
  • MOQ: 1 set,Accpet OEM &ODM
See Price

100kw Rural Off-Grid Solar System

solar energy systemTanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system, water pump, street lights, CCTV.
2)Troubleshoot and reduce maintenance costs
3)Develop your branded APP to enhance competitiveness

Industrial power solution

Solar Power System Three Phase Output Complete Kit Connection Diagram

Industrial power solution 100KW

Product Description



 How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar power system?

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.



Product Details



100kw Rural Off-Grid Solar System

solar panel mono 300w

Solar Panel (Quantity: 260 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 2 pieces)

Model: H10T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

how to connect  solar panel

solar energy panel

Solar Controller (Quantity: 2 pieces)

MPPT controller model: 360v/150A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 180 pieces)

Capacity: 2V/1000AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 479*175*338mm

solar panel system

30kw inverter 3 phase 380V output

Solar Inverter (Quantity: 1 piece)

Power Inverter: 100kw     DC input: 360v

Output: 380v 220v 50Hz (3phase )

Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

25mm2 battery cable 180pcs

4mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

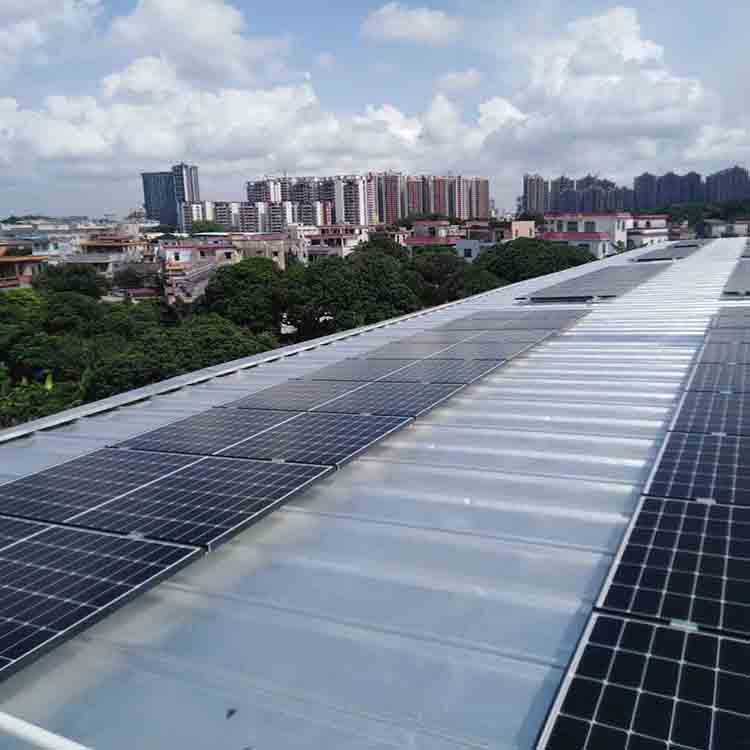

Solar Power System Projects



100kw solar energy system

check here to know more about 100kw Industrial power solution solar system

2 megawatt power solar system

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.

Tanfon Factory Picture



3 phase solar system

100kw solar system packaging

Solar Products FAQ



Q: What can be included for this system from TANFON?

A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.

Q: Who arranges the shipping?

A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.

Q:Will TANFON go to Global Exhibition?

A:we hope tanfon team also can meet with you in your country!
