Single Phase Solar System
30kw solar power system
  • 30kw solar power system
  • 30kw inverter 1phase output
  • 30kw solar system project

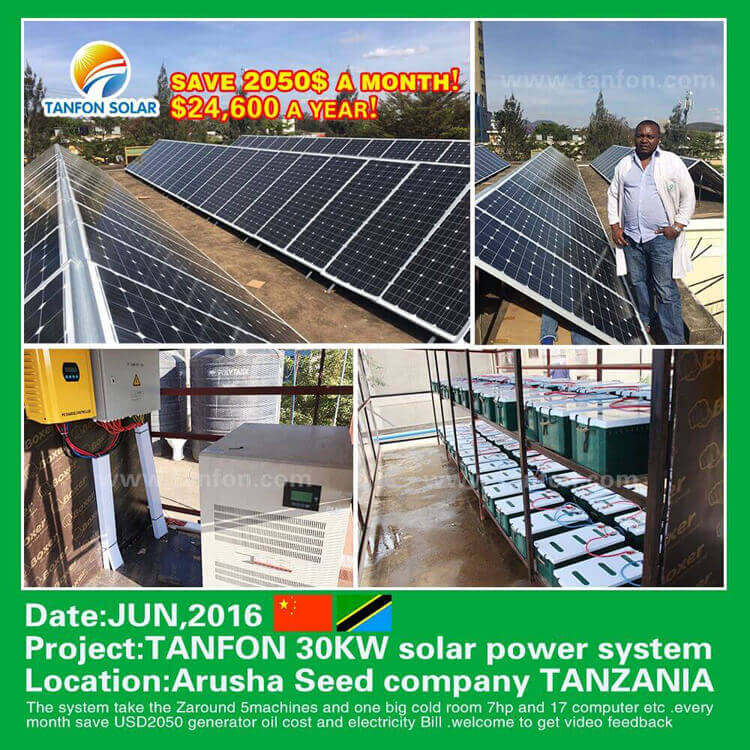

Single phase 30kw solar system roof brackets installed with 350w mono panel


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • Price: $22246-$33690
  • MOQ: 1 set
See Price

Single phase 30kw solar system roof brackets installed with 350w mono panel

30kw solar system single phase output

Product Description





How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar power system?

Off-grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

Product Details





What is included in my 30kw solar power kits?

Our kits provide all the components you need from start to finish.

solar panel mono 300w

Solar Panel (Quantity: 96 pieces)

FS350W mono solar panel(poly optional)

Vmp: 38.89V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 1 piece)

Model: H6T-384v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 400*425*145mm

pv combiner

solar controller

Solar Controller (Quantity: 1 piece)

MPPT controller model: 384V/100A

Charging efficiency; 90%-95%,

charging mode, intelligent control,

various protection functions

Solar Inverter (Quantity: 1 piece)

Pure sine wave inverter: 30kw(full power single phase)

DC input: 384v       AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P: 220V 380V 415V 50/60HZ

Product Size: 785*580*1197mm

30kw inverter

200Ah 12V solar battery

Solar Battery (Quantity: 64 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 522*240*219mm

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

62pcs 32mm2*35CM battery cable

4pcs 50mm2*1M battery cable

4mm2 PV cable 200M

Terminals and MC4

Is this 30kw solar system single phase output off grid?

Yes, this is 30kw biggest single phase output system, we also supply three phase 30kw system, more details please contact to us discuss.

What loads can be take by the off grid 30kw solar system?

Household appliances: Lights, fans, refrigerators, washing machines, air-conditioners, water pump, microwaves, etc.

30000W Solar System Home Appliances Load Reference
Load Name Load Rated Power QTY Total Rated Power
Lights 11W 60 660W
Fan 80W 40 3200W
Computer 150W 2 300W
Refrigerator(240L) 180W 2 360W
Printer 250W 2 500W
Fax machine 150W 1 150W
Washing machine 300W 2 600W
Electric stove 1000W 2 2000W
Microwave 1500W 2 3000W
Rice cooker 1000W 2 2000W
Electric cooker 300W 1 300W
Air conditioner(1HP) 750W 8 6000W
Air conditioner(3HP) 2250W 2 4500W
Satellite TV receiver/VCD 50W 4 200W
Color TV(32 inch) 150W 4 600W
Water Pump 200W 2 400W
Total 24470W

This example is just for reference. But your load can be less than 30kw

Remark: Refrigerator, air conditioner & water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first

If this 30kw solar system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

Solar Power System Projects



portable solar system solar generator system solar installation system

Events Room solar panel system for night market elertricity supply

Medical aid station solar system

Sales kiosk solar installation system

Container house installation solar system Apartment solar system Poultry farm solar system

Container house installation solar system

Apartment solar system

Poultry farm solar system

Rural community electricity supply solar power system Hotel used solar power system Solar Panel Power system for farm
Rural community electricity supply 20KW solar power system

Hotel used solar power system

Solar Panel Power system for farm

Solar power system for water treatment equipment Military base power supply solar system project solar power system for small motel

Solar power system for water treatment equipment

Military base power supply solar system project

solar power system for small motel with 6-8 bungalows in small islan



Tanfon Solar Products Feedback from Customers




30 kw solar power system

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.

Tanfon Factory Picture



3 phase solar system

100kw solar system packaging

Solar Products FAQ



Q: What 30kw home solar system can carry?

A: TV, COOKING matchine, air conditioners, fans, computers, lights, etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 12kw system may be with different configuration.

Q: Who arranges the shipping?

A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What is the package?

A: solar panel and battery pallet packing

PV combiner and hybrid inverter wooden box

Bracket and cable carton box packing

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
