home off grid solar panels system 8kwp 8kw complete set


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • Price: $7900-$8108
  • MOQ: 1 set
See Price

home off grid solar panels system 8kwp 8kw complete set

solar panels system 8kwp

Product Description





How the off grid solar panels system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar panels system?

Off-grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

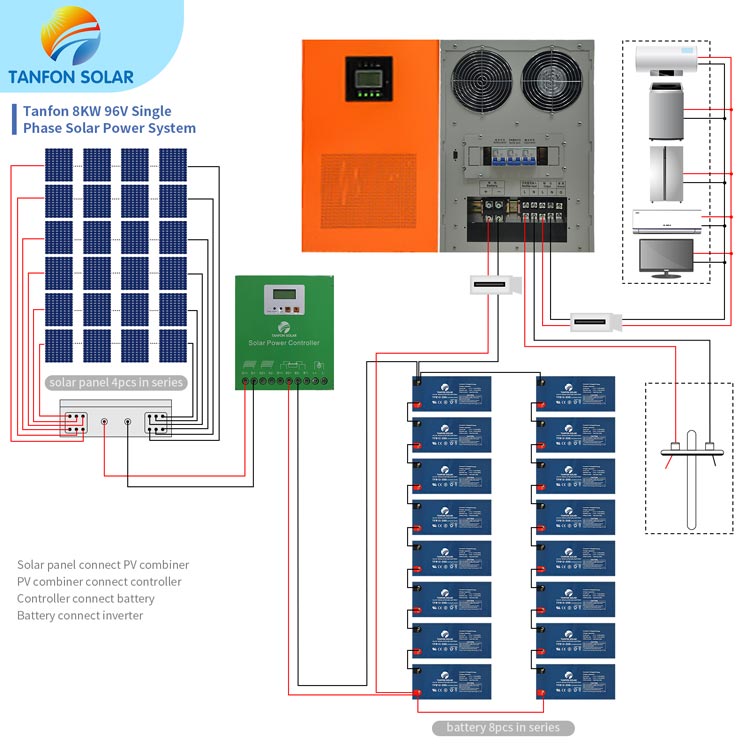

Off grid solar panels system product details





What is included in my 8kw off grid solar panels system?

Our kits provide all the components you need from start to finish.

solar panel mono 300w

Solar Panel

FS350W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Quantity: 24 pieces

PV combiner

Model: H6T-96v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 360*345*145mm

Quantity: 1 piece

pv combiner 10 input 1 output

5kw solar inverter

Solar Inverter

Inverter power: SC8kw/96v

MPPT Controller model: 96V/80A, AC charger: 15-20A

100% USA brand MOS materials

Double protection, easy after sales service

O/P: 110V, 220VAC and 5V/12VDC

Product size:590*470*730mm

Quantity: 1 piece

Solar Battery

Capacity: 12V/150AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 483*170*219mm

Quantity: 16 pieces

200Ah solar battery

solar panel mounting rack

Solar Panel Rack

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Quantity: 1 set

Cables

14pcs 32mm2*35CM battery cable

4pcs 50mm2*1M battery cable

4mm2 PV cable 150M

Terminals and MC4

Quantity: 1 set

pv cables

What loads can be take by the 8KW off grid solar panels system?

Household appliances: Lights, fans, refrigerator, washing machine, air-conditioner, water pump, microwave, etc.

8000W off grid solar panels system Home Load Reference
Load Name Load Rated Power QTY Total Rated Power
Lights 11W 12 132W
Fan 80W 4 320W
Computer 150W 2 300W
Refrigerator(200L) 120W 3 360W
Printer 250W 1 250W
Fax machine 150W 1 150W
Washing machine 300W 1 300W
Microwave 1500W 1 1500W
Electric cooker 300W 2 600W
Air conditioner(1.5HP) 1125W 3 3375W
Satellite TV receiver/VCD 25W 1 25W
Color TV(32 inch) 150W 2 300W
Water Pump 200W 1 200W
Total 7812W

This example is just for reference. But your load can be less than 8kw

Remark: Refrigerator, air conditioner &water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first

If this 8kw solar system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

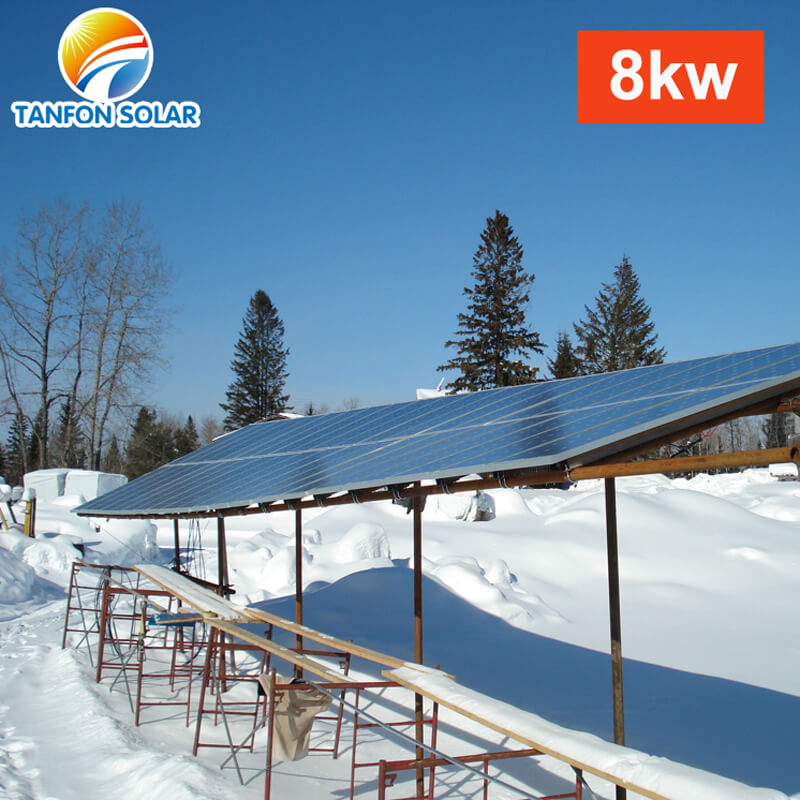

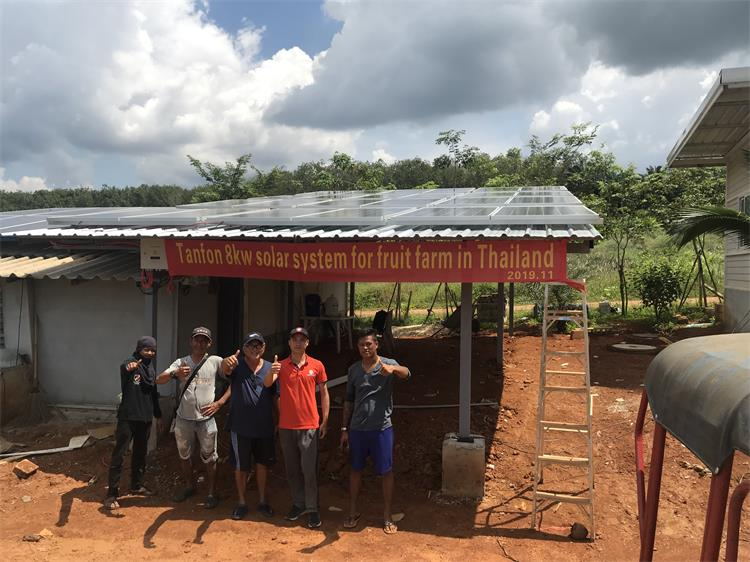

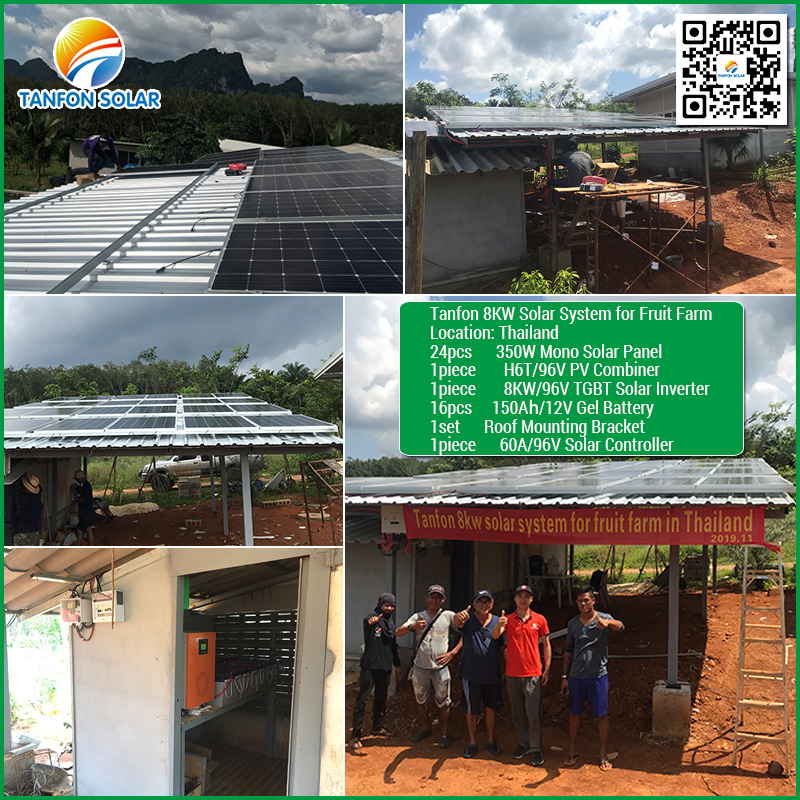

Off Grid Solar Panels System Projects



solar power system projects

solar power system airport used in Indonesia

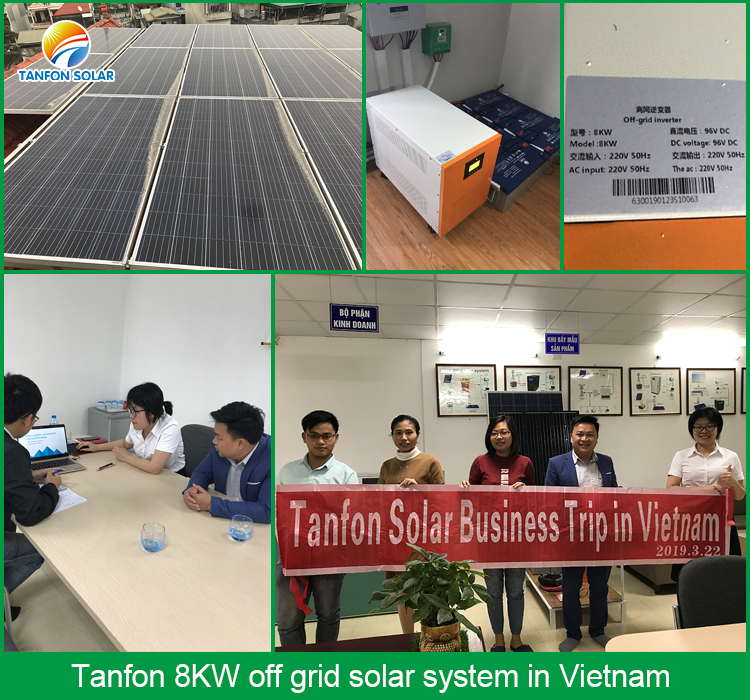

Off Grid Solar Panels System Feedback from Customers



10kw solar system

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.

Tanfon Off Grid Solar Panels System Factory Pictures



3 phase solar system

100kw solar system packaging

Off Grid Solar Panels System FAQ



Q: What 8kw home solar system can carry?

A: TV, COOKING matchine, air conditioner, fans, computers, lights, etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.

Q: Who arranges the shipping?

A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What is the package?

A: solar panel and battery pallet packing

PV combiner and hybrid inverter wooden box

Bracket and cable carton box packing

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
