solar inverter&system materials
solar inverter price
  • solar inverter price
  • solar inverter system

hybrid solar inverter with mppt charge controller 5kw dc ac inverter price


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 piece
See Price

hybrid solar inverter with mppt charge controller 5kw dc ac inverter price

solar inverter price

Tanfon power solar inverter, pure sine wave, with MPPT charge controller built-in solar inverter, off grid single phase model have power design 300w upto 10kw, only inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.

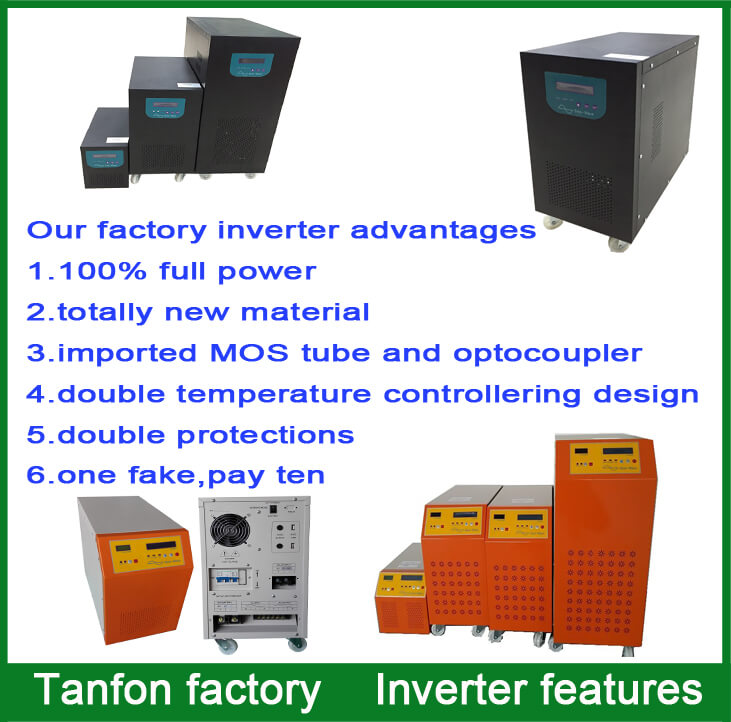

solar inverter price TANFON solar inverter advantage:
1. 100% Full Power
2. Import MOS tube Power Material
3. Double Powered Protection
4. Dual temperature control Protection
5. Battery and city power priority switch



solar inverter price



Solar inveter Feature
1  Combine with solar power controller and inverter hybrid function.
2  Completely controlled by CPU.output have 5V and 12V USB, can take LED light and mobile phone
3  Solar Inverter use copper transformer, pure sine wave output.
4  LCD displays, clearly to know the status.
5  Have bypass function and AC charger (UPS function)
6  Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc.
7  City grid power and solar power complementary. When there are not sunshine and battery power used off, inverter will charge from city power automatically to take the loads and charge battery, keep the solar power system working 24 hours, have switchcity power charge and solar power chargeyou can change any time.

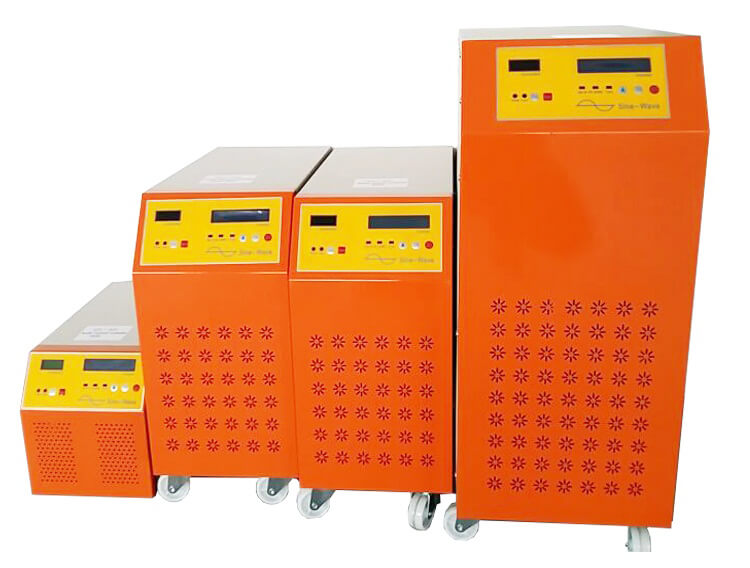

Hybrid Solar Inverter 2kw to 5kw front and back side design

solar inverter price



SC5KW hybrid solar inverter data sheet
Model SC5000
Rated power(W) 5000W
Rated DC voltage(V) 48V and 96V optional
Line input Input voltage(V) 145-280V, 90-127V
Charge current(A) 10-30A
Inverter output Output voltage(V) 110V or 120V or 220V or 230V or 240VAC±5%, &5V,12V DC port
Output frequency 50Hz/60Hz±1%
Wave form Pure Sine Wave, THD<4%(Full Load)
Solar input Maximum voltage(V) (48v)88v; (96v)176v
Rated power(Wp) 5000Wp
Solar Controller Charge current(A) 60A
MPPT range(V) 48V(40-68), 96V(80-136)
Charging efficiency 90%-95%, Peak on 97%
Other Over charge protective voltage of battery(V) 48V(57.2V); 96V(114V)
Over charge recover-voltage of battery(V) 48V(54.7V); 96V(109.6)
Voltage drop between solar
module and battery(V)
≤0.5V
Voltage drop between loads
and battery(V)
≤0.25V
Start speed of cooling fan Have
Environment Humidity 0-90% Maximum,non-condensable
Protective Functions Protection against anti-charge at night;
Battery over charge;over discharge protection; Joint-reversed of solar modules
Control method MPPT
Size :D*W*H(mm) 465*220*480
N.W&G.W(kg) 43/50

Need more other power design inverter, please send inquiry to us, we will reply as soon as possible within 12 hours.

solar inverter price

TANFON solar inverter

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.
Solar Inverter Feedback from Customer

solar inverter

TANFON solar inverter factory workshop

solar inverter price

Solar inverter for Solar system connection for reference:

solar inverter price

Packing:

solar inverter hybrid 300w to 1000w, 1pc use one carton box packing, over 1000w power inverter, 1pc use one wooden box packing.

solar inverter

Solar Inverter FAQ
Q1. Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.
Q2. Solar inverter have a warranty?
A2. YES, All products are at least 2 years warranty.
Q3. What is the shipping way of solar inverter?
A3. DHL, UPS, TNT, EMS, FedEx, Ship by sea.
Q4. What is the payment method of dolar inverter?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / Alibaba can also be used.
Q5. Can we add our logo on solar inverter products?
A6. YES. you can add your logo on products.
Q6. Can we customize product?
A7. YES. OEM&ODM.
Q7. Are there some optional function for your solar inverter?
A8. Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.
Q9. what is TANFON solar inverter after sales service
A9.during the warranty, ship free PCB by DHL or FEDEX.
Q10. what is your trade Asusurance
A10:100% product quality protection
        100% product on time shipment protection
        100% payment protection for your covered amount
 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!

solar inverter

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

With us, your business in safe, your money in safe!
