Solar battery generator portable system 300W DC and AC output


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

Solar battery generator portable system 300W DC and AC output

solar battery generator



Solar battery generator ( Solar power inverter combined PV controller & battery )

solar battery generatorsolar battery generator

Solar battery generator features
1. Solar power controller and inverter with AGM free maintenance battery together
2. Completely controlled by CPU.
3. Inverter use copper transformer, pure sine wave output.
4. Have 5V, 12V DC output.
5. Two LCD displays, clearly to know the status.
6. Have bypass function and AC charger (UPS function)
7. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc.

Capacity:

Portable solar DC power system 4.5Ah to 55Ah

portable solar DC&AC power system 100w to 1500w

inverter controller and battery all in one box max capacity can be designed 5000w.

solar battery generator system

300W solar inverter controller battery hybrid box
Model SCB300W
Rated power(W) 300W
Rated DC voltage(V) 12V
Line input Input voltage(V) 165-275V
Charge current(A) 25A
Inverter output AC Output voltage(V) 220VAC±5%
DC output voltage(V) 5V&12V
Output frequency 50Hz/60Hz±1%
Wave form Pure Sine Wave, THD<4%(Full Load)
Solar input Maximum voltage(V) 21V
Rated power(Wp) 300Wp
Charge current(A) 20A
MPPT range(V) 12V-25V
Charging efficiency 90%-95%, Peak on 97%
Battery Capacity(AH) 55AH*1PC or 100AH*1PC
Over charge protective voltage(V) 14.3V
Over charge recover voltage(V) 13.7V
Over discharge alarm voltage(V) 20V
Over discharge recover voltage of battery(V) 12.5V
other Voltage drop between solar module and battery(V) ≤0.3V
Voltage drop between loads and battery(V) ≤0.15V
Start speed of cooling fan Have
Environment Humidity 0-90% Maximum,non-condensable
Protective Functions Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
Control method MPPT
Product Size :D*W*H(mm) 343*225*443mm
Package size 420*290*490mm
N.W./G.W.(kg) 25/28mm



Solar battery generator application

Home lighting, fans working, camping lighting, outdoor party lighting, ect.

Portable solar DC power system, portable solar DC&AC power system, inverter controller and battery all in one box

solar battery generator system



Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.
Solar Battery Generator Feedback

solar battery generator

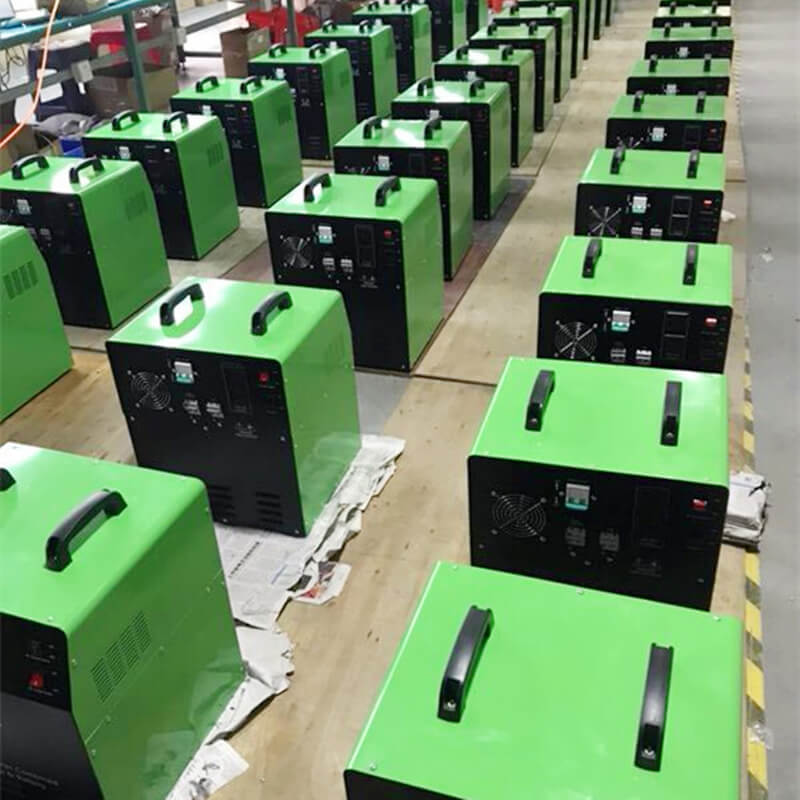

Tanfon Factory Solar battery generator producing pictures

3000 sets solar battery generator order producing

solar battery generator factory

Solar battery generator Package

solar battery generator package

Tanfon Inverter Factory in Foshan, welcome to visit our factory.  (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)

Solar battery generator 40' container loading

solar battery generator loading container

Solar battery generator Certificate

solar battery generator certificate

Solar Battery Generator FAQ

Q1. Are you factory?

A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.

Q2. How long is solar battery generator products warranty?

A2.YES, All products are at least 2 years warranty.

Q3.What is the shipping way of solar battery generator?

A3. Ship by sea.

Q4. What is the payment method?

A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / MoneyGram /Alibaba can also be used.

Q5.Can we design packaing?

A5.YES.We can customer's own packing

Q6.Can we add our logo on products?

A6.YES.you can add your logo on products.

Q7.Can we customize product?

A7.YES.OEM&ODM.

Q8.what is TANFON solar battery generator inverter after sales service

A9.during the warranty, ship free PCB by DHL or FEDEX.

Q9.what is your trade Asusurance

A10:100% product quality protection

        100% product on time shipment protection

        100% payment protection for your covered amount

 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
