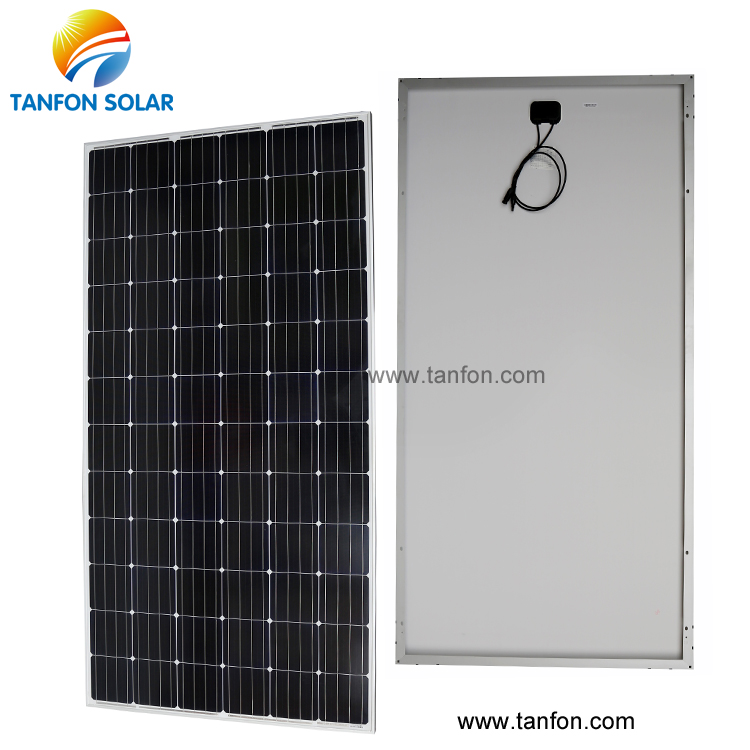

pv panels 300w 350 watts mono price solar system set


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 2 pieces
See Price

pv panels 300w 350 watts mono price solar system set

pv panels

Why Choose Tanfon?



Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



pv panels







300W pv panels Features

  1. Nominal 24V DC for standard output.
  2. High efficiency.
  3. Outstanding low-light performance.
  4. High transmission tempered glass.
  5. Rugged design to withstands high wind pressure and snow load, easy installation.
  6. Aesthetic appearance.
  7. Design to meet unique demand of customer.
  8. 25 year module output warranty.



pv panels 300 watts characteristics
STC: lrradiance 1000W/m2, Module temperature 25℃, AM=1.5
Module Type FS300-24v
Maximum power at STC(Pmax)  300W
Optimum operating voltage(Vmp) 37.04V
Optimum operating current(Imp) 8.09A
Open-circuit voltage(Voc) 45.57V
Short-circuit current(Isc) 9.74A
Short-circuit current temperature coefficient (0.065±0.015)%/
Open-circuit voltage temperature coefficient   -(80±10)mV/
Peak power temperature coefficient -(0.5±0.05)%/
NOCT (Air 20; Sun 0.8kW/m wind 1m/s)    47±2
Operating temperature     -40 to 85
Maximum system voltage 600V DC
Power tolerance  ±3%
Size 1956*992*40mm



Photovoltaic solar panels 300w

 pv panels

300W pv panels bracket supply:

Slope Roof,  Flat roof or Ground (optional), various material roof panel rack can be suppiled.

Structure: Anodized Aluminum and Stainless Steel.

Including complete fittings.

wind load: 55m/s, snow load: 1.5kn/m2

pv panels bracket

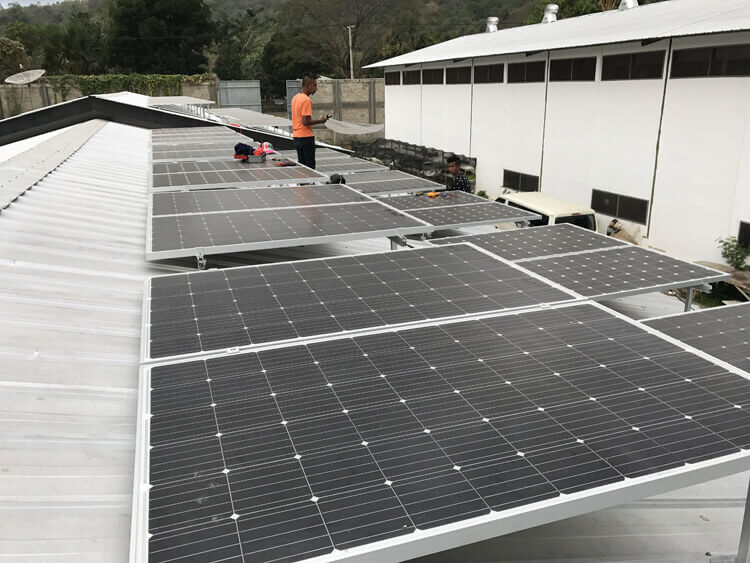

1.2MW mono pv panels grid tie solar system project

photovoltaic pv panels 1.2M system



pv panels



300W pv panels Factory Pictures

pv panels factory



pv panels



pv panels packaging



pv panels company





We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
