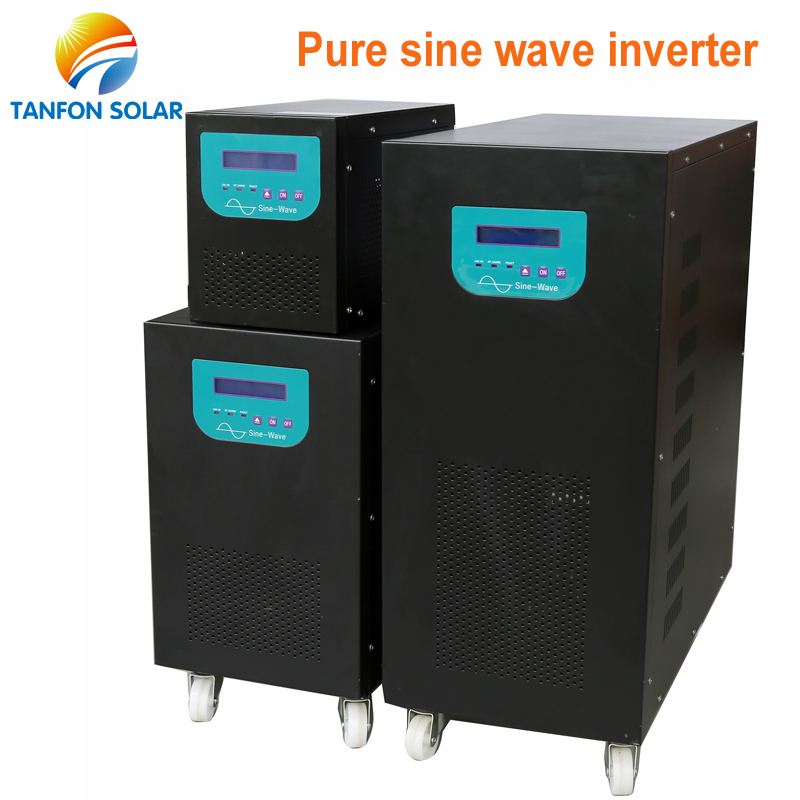

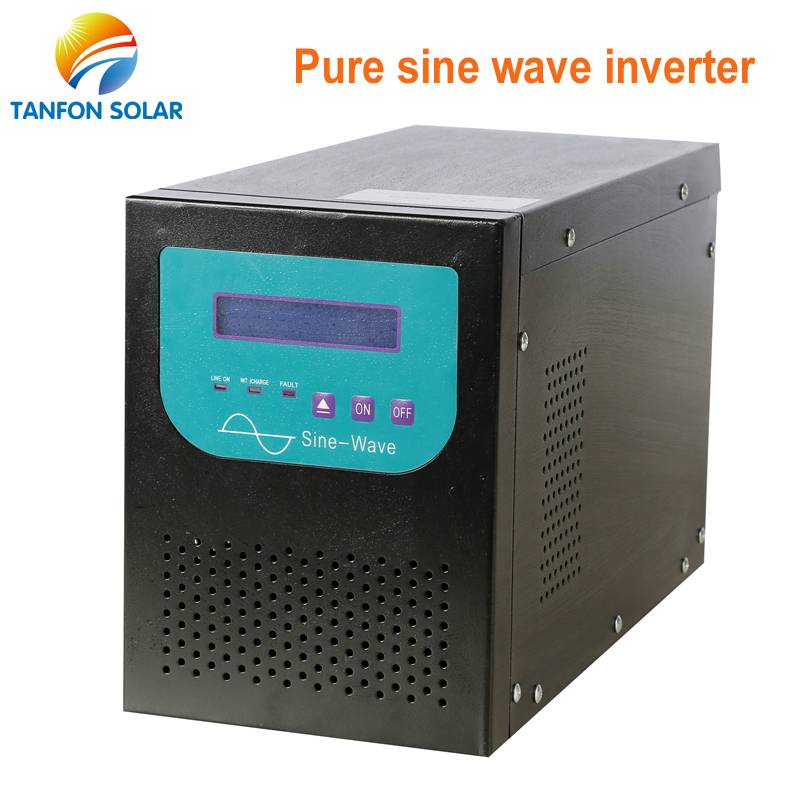

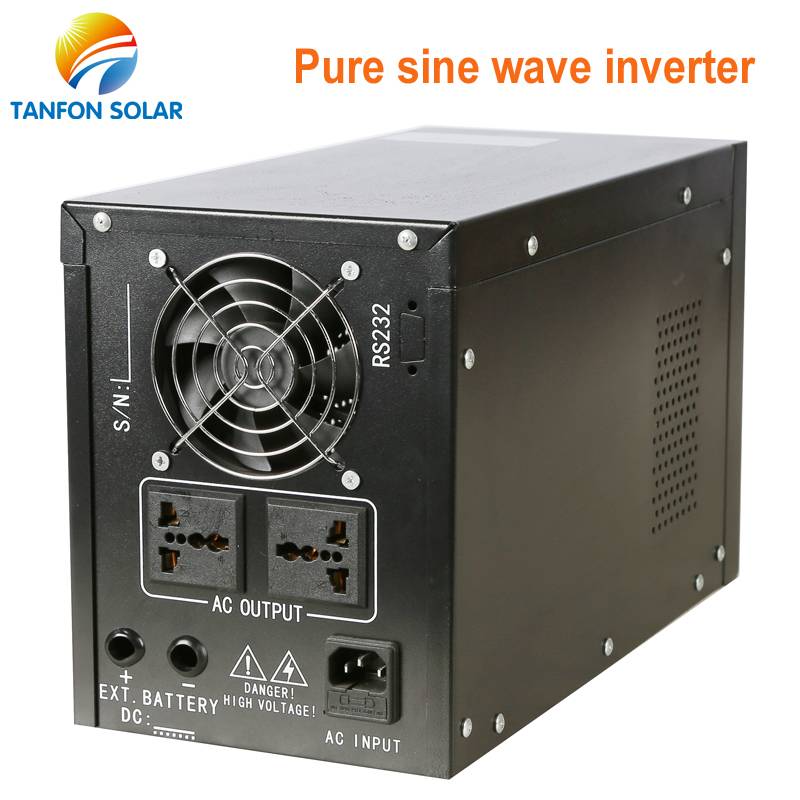

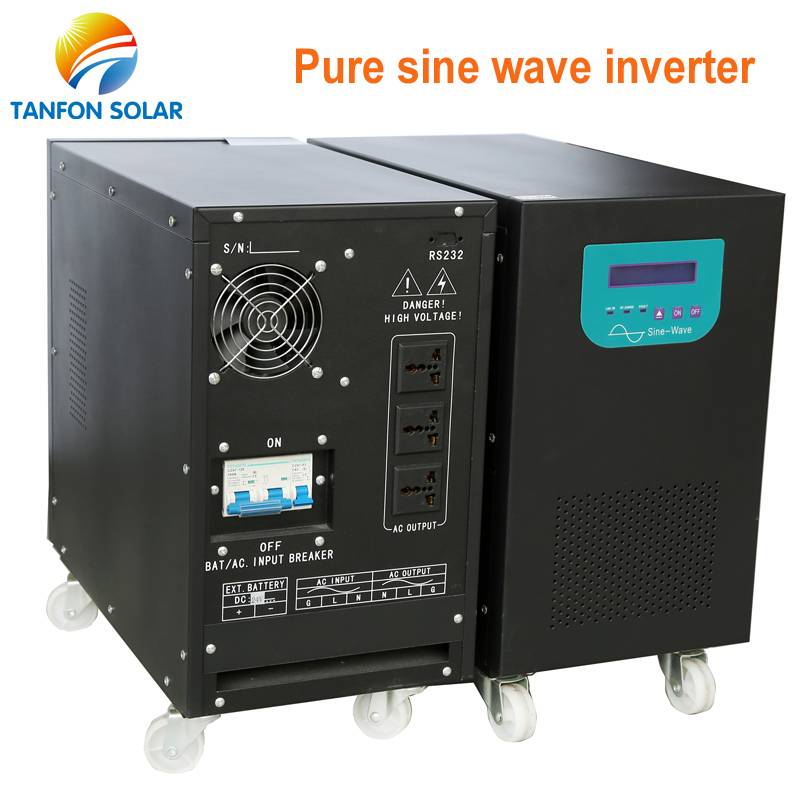

Power Inverter dc to ac 220v or 110v pure sine wave off grid


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 piece
See Price

Power Inverter dc to ac 220v or 110v pure sine wave off grid


pure sine wave inverter for home used

home power inverter 220v ac output


Pure sine wave power inverter; Solar inverter, Wind inverter, Home inverter, Household inverter

Foshan Tanfon Energy Technology Co.,LTD which a manufacturer for solar system products, wind turbine system products.

inverter with CE certification; 18 months warranty for normal voltage products

(our factory sincerely hope can have good cooperation with you in the feature)



Competitive advantage:


 power inverter for solar system and wind system

v Used copper transfromer

LCD display

100% full power

Totally new material, imported MOS tube and optocoupler

Double protections, double temperature controllering design

Bypass function and with AC charger;

18 months warranty;

CE, RoHS, ISO9001 certification

Pure Wave Inverter Feature:

  • Super wide input voltage: 145V---280VAC;
  • Completely controlled by CPU,
  • Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
  • Functions that when the AC comes in, it will start the unit automatically.
  • With charger built-in, its charging current is 10A----30A.
  • Different DC volage: 12V, 24V, 36V, 48V, 96V, 192V, 240V for optional
  • Output pure sine wave: 220V+-3%.
  • It can drive impactive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner
  • It's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
  • ATM inverter, RS232 software, SNMP card for optional.



Working way below optional:

1.the city power priority: when it have city power, inverter will work bypass output, city power take the load directly; when  have both city power and sun power, inverter will charge 2 kinds power to battery.

when city power failed, just charge solar power to battery .

2.battery power priority: when it have sun power, just charge sun power to battery, and take the load, when it has not sun power, inverter will use battery power take the load.

when battery power is lower, inverter will automatically use bypass function to take the load, and charge to battery at the same time.



300W to 20kw pure sine wave inverter data sheet:

Model

TF300W

TF500W

TF700W

Capacity(W)

300W

500W

700

DC voltage(V)

12/24

12/24

12/24

Input voltage(V)

160-265VAC

Input frequency

45-65HZ

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

9.8/19

9.8/19

9.8/19

Over voltage protection(V)

15/30

15/30

15/30

Recharge current

5-10A

5-10A

5-10A

Unit size(mm)

348*122*200

348*122*200

370*122*200

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity



Model

TF1K

TF1.5K

TF2K

Capacity(W)

1000

1500

2000

DC voltage(V)

24/48

24/48

24/48

Input voltage(V)

160-265VAC

Input frequency

45-65HZ

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

19/39

19/39

19/39

Over voltage protection(V)

30/60

30/60

30/60

Recharge current

10-15A

10-15A

10-15A

Unit size(mm)

388*145*210

446*175*300

446*175*300

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity



Model

TF3K

TF4K

TF5K

TF6K

Capacity(W)

3000

4000

5000

6000

DC voltage(V)

48

48/96

48/96

48/96

Input voltage(V)

160-265VAC

Input frequency

45-65HZ

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

39/78

39/78

39/78

39/78

Over voltage protection(V)

60/120

60/120

60/120

60/120

Recharge current

15-25A

15-25A

15-25A

20-30A

Unit size(mm)

473*220*386

473*230*490

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity



Model

TF10K

TF15K

TF20K

TF30K

Capacity(W)

10000

15000

20000

30000

DC voltage(V)

96

96/240

240/384

384

Input voltage(V)

160-265VAC

Input frequency

45-65HZ

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

78

78/216

216/322

322

Over voltage protection(V)

120

120/272

272/480

480

Recharge current

20-30A

30-40A

without

without

Unit size(mm)

560*280*680

560*320*700

900*600*1380

900*600*1380

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity



inverter off grid power use for solar system

power inverter advantage

We promise our best quality and after sales service, make TANFON as your most valuable cooperator in China.
