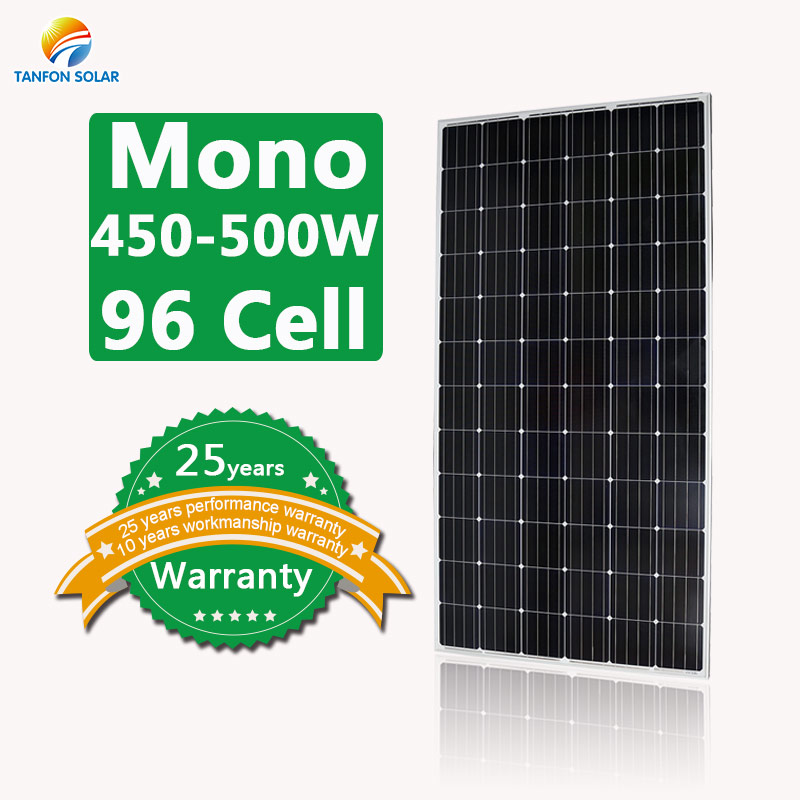

450W 480W 500W high efficiency solar panels
  • 450W 480W 500W high efficiency solar panels

450W 480W 500W mono 96 cell high efficiency solar panels


Product Specification:

  • Place Of Origin: Guangdong, China
  • BrandName: TANFON
  • MOQ: 1000watt
See Price

350 watt 72 cell mono solar panels for house



450W - 500W high efficiency solar panels features

1) Nominal 36V DC for standard output.

2) High efficiency.

3) Outstanding low-light performance.

4) High transmission tempered glass.

5) Rugged design to withstands high wind pressure and snow load, easy installation.

6) Aesthetic appearance.

7) Design to meet unique demand of customer.

8) 25 year module output warranty.



450W - 500W high efficiency solar panels features electrical characteristics

Maximum power at STC(Pmax)

450W

460W

470W

480W

490W

500W

Optimum operating voltage(Vmp)

47.88V

48.01V

48.23V

48.45V

48.45V

48.63V

Optimum operating current(Imp)

9.4A

9.59A

9.75A

9.93A

10.12A

10.28A

Open-circuit voltage(Voc)

58.57V

58.71V

58.83V

58.89V

58.91V

58.95V

Short-circuit current(Isc)

9.73A

9.78A

9.86A

10.04A

10.67A

10.87A

Short-circuit current temperature coefficient

(0.065±0.015)%/℃

Open-circuit voltage temperature coefficient

-(80±10)mV/℃

Peak power temperature coefficient

 -(0.5±0.05)%/℃

NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)

47±2℃

Operating temperature

-40℃ to 85℃

Maximum system voltage

 1000V DC

Power tolerance

±3%

STC: lrradiance 1000W/m2,Module temperature 25℃,AM=1.5



450W - 500W high efficiency solar panels with highest wattage

solar panels for house

96 cell high efficiency solar panels specification

Cell

 Mono solar cell

No. of cell and connection

96

Dimension of module

1956mm×1300mm×50mm

Weight

33kg

Specifications are subject to change without notice at any time.
