48V 3000W 5000W Solar inverter charger solar panel battery inverter


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 piece
See Price

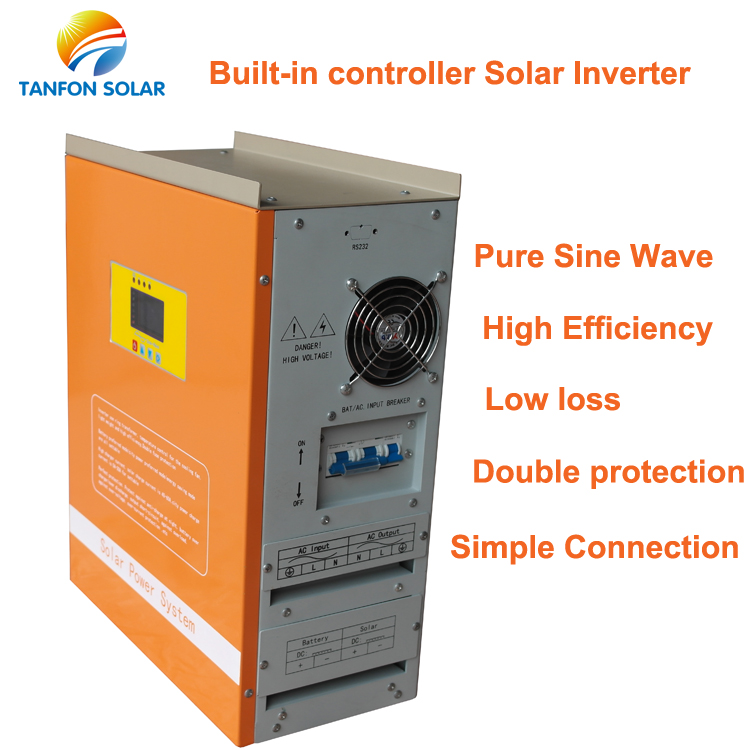

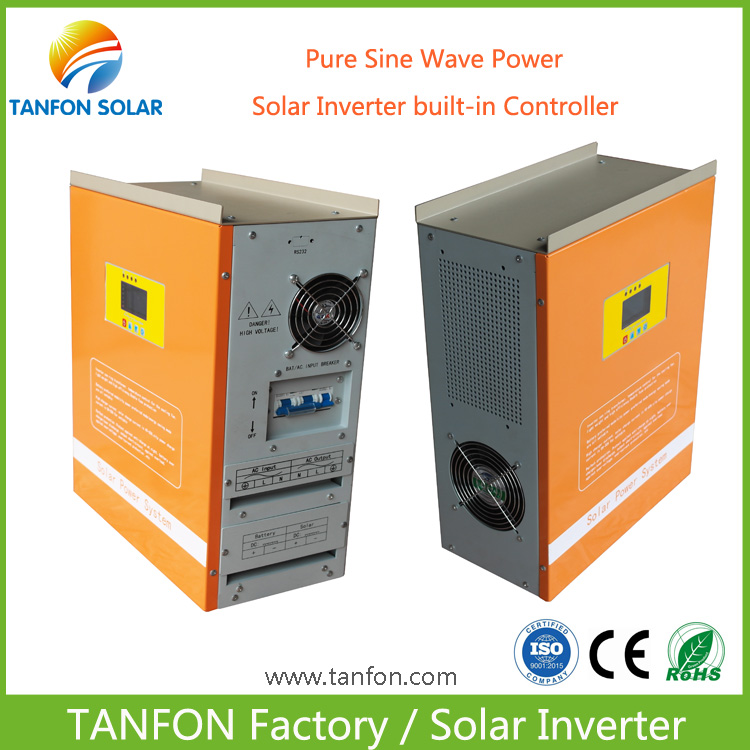

48V 3000W 5000W Solar inverter charger solar panel battery inverter

QQ20180508193919

Tanfon power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 10kw, only inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.

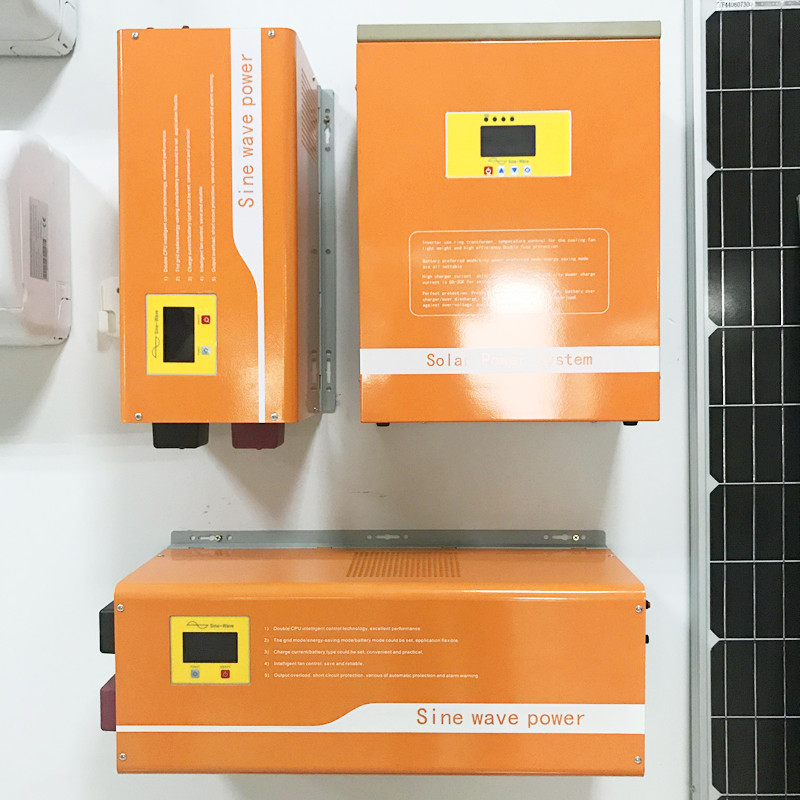

wall-mounted pure sine wave inverter Feature:

1. Combine with solar power controller and inverter hybrid function.

2. Completely controlled by CPU, LCD displays.

3. Inverter use ring transformer, temperature control for the cooling fan, light weight and high efficiency,Double fuse protection

4. Battery preferred mode/city power preferred mode/energy saving mode are all settable

5. High charger current. solar charge current is 40-60A,city power charge current is 0A-30A for settable.

6. Can start without battery, wide range of input voltage(145-275VAC), accurate output and full automatic voltage stabilization.

7. Have bypass function and AC charger (UPS function)

8. Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.

9. Welcome to join us as our agents/distributors from all over the world!

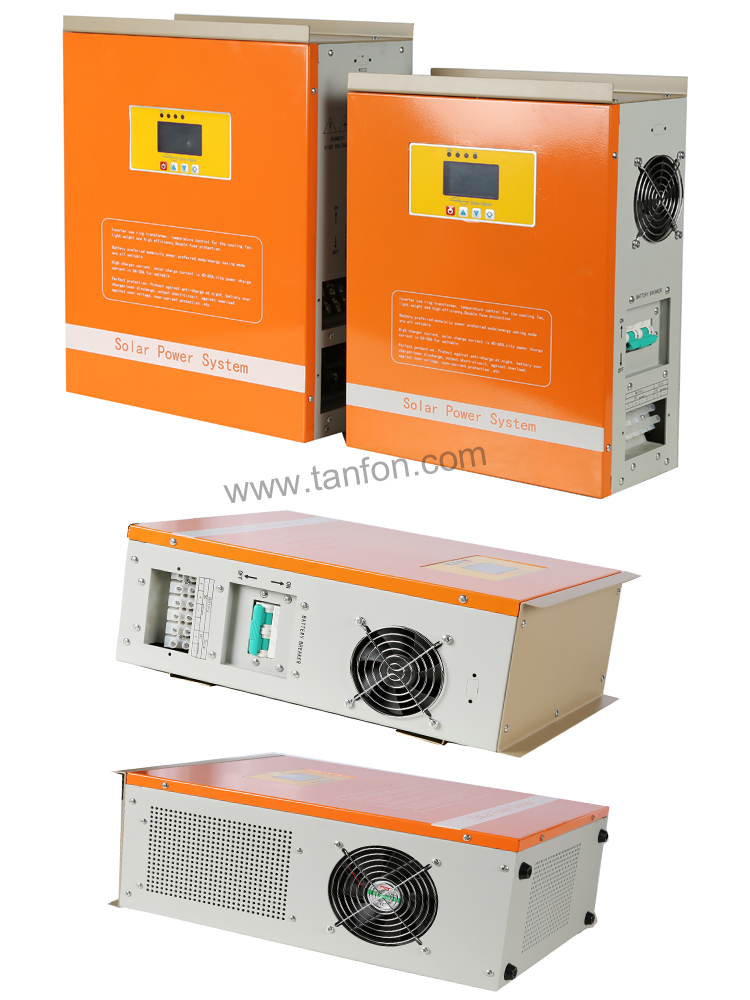

NW1KW to NW6KW pure sine wave inverter wall-installed type data sheet:

Model

WSC1000W WSC2000W WSC3000W WSC5000W WSC6000W

Rated power(W)

1000W 2000W 3000W 5000W 6000W

Rated DC voltage(V)

24V 48V 48V 48V 48V

Line input

Input voltage(V)

145-280V, 90-127V

Charge current(A)

10-30A

Inverter output



Output voltage(V)

110V or 220VAC±5% &5V,12V DC

Output frequency

50Hz/60Hz±1%

Wave form

Pure Sine Wave, THD<4%(Full Load)

Solar input

Maximum voltage(V)

42V or 88V or 176V

Rated power(Wp)

1000W 2000W 3000W 5000W 6000W
Solar Controller

Charge current(A) 60A
MPPT range(V) 24v(20-34)48v(40-68)
Charging efficiency

90%-95%, Peak on 97%

Other        Over charge protective voltage of battery(V) 24V(27.4),48V(54.8)
Over charge recover-voltage of battery(V)

24V(27.4),48V(54.8)

Voltage drop between solar

module and battery(V)

≤0.5V

Voltage drop between loads

and battery(V)

≤0.25V

Start speed of cooling fan

Have

Environment Humidity

0-90% Maximum,non-condensable

Protective Functions Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
Control method

MPPT

Size &package size:D*W*H(mm) 290*125*430mm 355*185*470mm
 N.W&G.W(kg) 20KG/23KG 25KG/28K 30KG/33KG 32KG/35KG



Application: solar hybrid inverter with solar controller built-in, use for home solar system

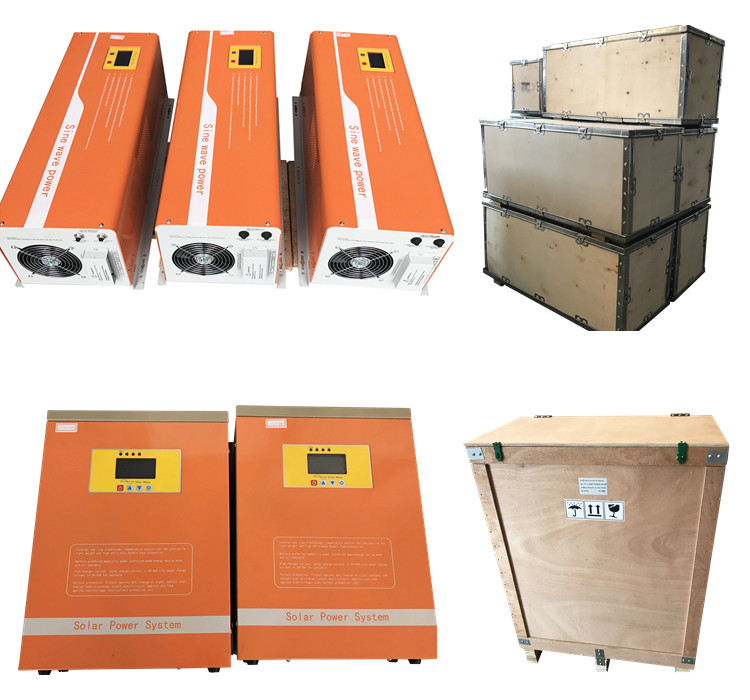

Packing:

1pc use one carton box packing



Need more other power and type design inverter, please send inquiry to us, we will reply as soon as possible within 12 hours.

TANFON  .jpg



Why Choose TANFON Products?

1) TANFON  has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !

2) With a professional installation team, Have went to Egypt,  Chad, Nigeria, Ghana, Doha, Pakistan for installation

3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation

4) We insist on using good quality raw material whenever and wherever.

5) With customer’s’ praise as an assurance,Tanfon is a guaranteed brand.

6) Our company's philosophy is: one-stop solar energy service platform



partner in Thailand

Customer Feedback

1_





Our Factory Pictures

Tanfon Factory






Customer Visiting

08

17.07.14





Tanfon Solar energy system provide installation support

_20170804150107

FAQ

Q1.Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.

Q2.All products have a warranty?
A2.YES, All products are at least 2 years warranty.

Q3.What is the shipping way?
A3.DHL, UPS, TNT, EMS, FedEx, Ship by sea.

Q4. What is the payment method?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/MoneyGram/Alibaba can also be used.

Q5.Can we design packaing?
A5.YES. We can customer's own packing

Q6.Can we add our logo on products?
A6.YES.you can add your logo on products.

Q7.Can we customize product?
A7.YES.OEM&ODM.

Q8.Are there some optional function for your inverter?
A8.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.

Q9.what is TANFON inverter after sales service
A9.during the warranty ,ship free PCB by DHL or FEDEX.

Q10.what is your trade Asusurance
A10:100% product quality protection
        100% product on time shipment protection
        100% payment protection for your covered amount
 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
