Why Choose Tanfon?
250 watt monocrystalline solar panel Features
1) Nominal 24V DC for standard output.
2) High efficiency.
3) Outstanding low-light performance.
4) High transmission tempered glass.
5) Rugged design to withstands high wind pressure and snow load, easy installation.
6) Aesthetic appearance.
7) Design to meet unique demand of customer.
8) 25 year module output warranty.
|24V 250W solar panel characteristics|
|STC: lrradiance 1000W/m2, Module temperature 25℃, AM=1.5|
|Maximum power at STC(Pmax)||250W|
|Optimum operating voltage(Vmp)||30V|
|Optimum operating current(Imp)||8.33A|
|Short-circuit current temperature coefficient||(0.065±0.015)%/℃|
|Open-circuit voltage temperature coefficient||-(80±10)mV/℃|
|Peak power temperature coefficient||-(0.5±0.05)%/℃|
|NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)||47±2℃|
|Operating temperature||-40℃ to 85℃|
|Maximum system voltage||600V DC|
Mono solar panel (Poly for optional)
250 watt monocrystalline solar panel rack supply:
Slope Roof, Flat roof or Ground (optional), various material roof panel rack can be suppiled.
Structure: Anodized Aluminum and Stainless Steel.
Including complete fittings.
wind load: 55m/s, snow load: 1.5kn/m²

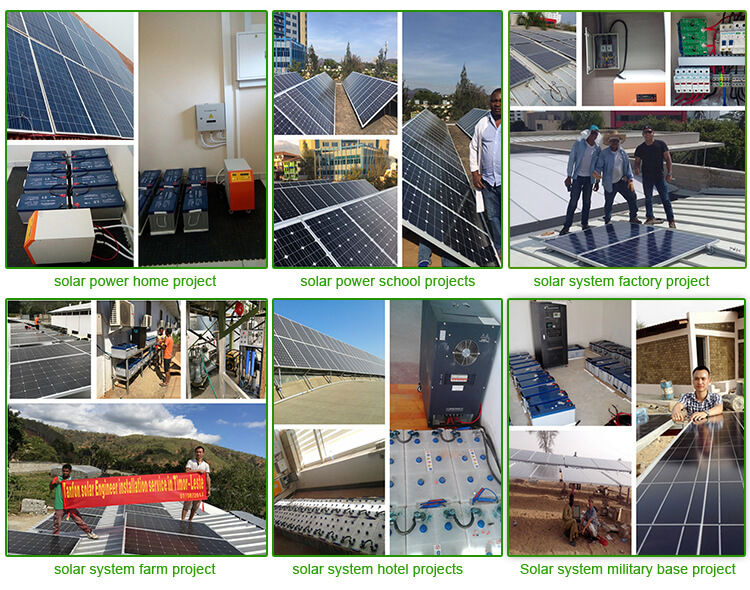

2MW mono solar panel grid tie project in US
250 watt solar panel Factory Pictures
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
