20kw inverter pure sine wave
  • 20kw inverter pure sine wave

20kw inverter 3 phase solar inverter three phase dc to ac power


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

20kw inverter 3 phase solar inverter three phase dc to ac power

IGBT inverter

Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter (single phase and three phase), controller, battery ect.

3 phase pure sine wave solar inverter feature

Tanfon three phase inverter with IGBT material functions:

1. With AC reactor  (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristorcharging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. The Chinese/English language operation interface for choice.

8. Touching display

9. IGBT brand: Mitsubishi (import from Japan)

Thyristor charging brand: Simon Kang Brand(import from German)

10. 1KW-10kw(MOS ,48V,96V,120v),10KW-250KW(IGBT,192V,240V,384V)

3 phase inverter product picture

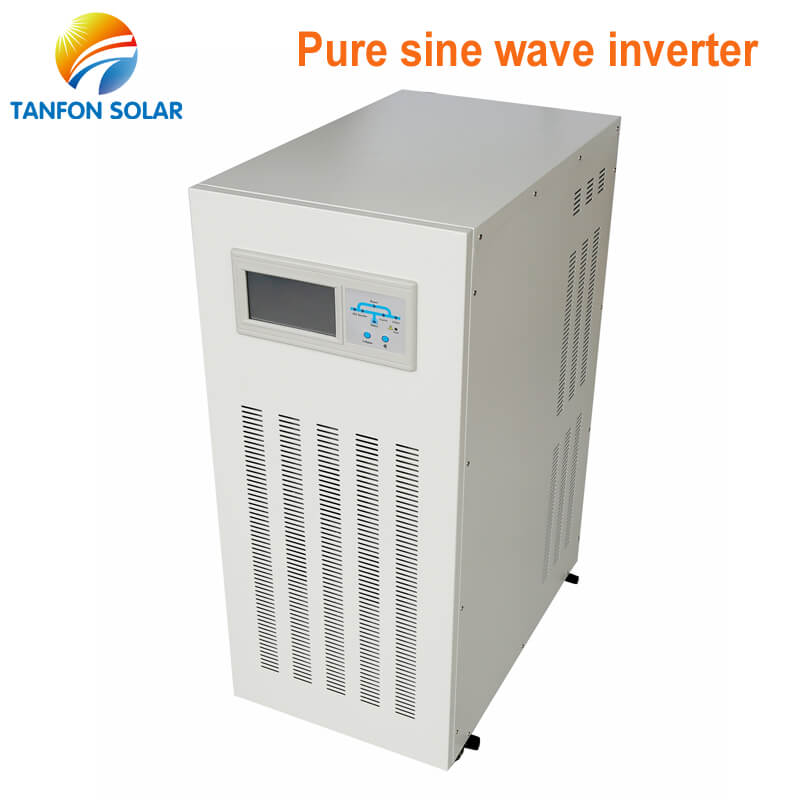

Three phase inverter 15kw and 20kw ( 3 phase solar inverter )

 20kw inverter 3 phase

Three phase inverter 30kw-250kw ( 3 phase solar inverter )

three phase inverter

Capacity: 1KW--100KW

1) Super wide input voltage: 285V-475V

2) Completely controlled by CPU, LCD automatic page turning display

3) Protection against output short-circuits; against overload, and when you throw off its load, it will turn on the unit automatically.

4) Working for single phase and three phases.

110V/220V single phase; 240v/380v/415V/440V option.

5) Also can be designed the hybrid typw, with charger built-in, its charging current is 10A----156A.

6) Different DC voltage: 24V, 48V, 96V, 192V, 240V, 384V for optional

7) Make it with 3 pcs PCB box, it is more stable design.

8) This kind inverter can take pump or lift, and other industrial use

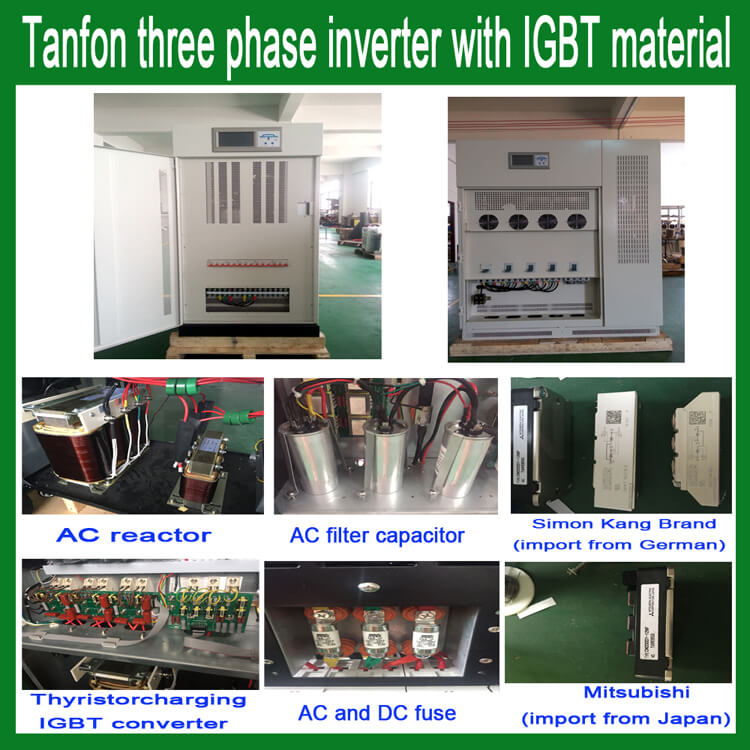

Tanfon three phase inverter insist using high quality material



  • IGBT

  • AC reactor

  • AC filter capacitor

  • Simon Kang Brand(import from German)

  • Thyristorcharging IGBT converter

  • AC and DC fuse

  • Mitsubishi(import from Japan)

 three phase power inverter

15KW Three phase solar inverter specification



Off Grid Power Pure Sine Wave Three Phase Inverter

Model 20K
Power 20000W
Power Factor 0.8
Input Phase 3 phase 4 wire and ground
Voltage Range 380V±20%(3 phase), phase voltage 220V
Frequency Range 45-65Hz
Rectifier 3 phase 6 pulses, 12 pulses is optional
Output Phase 3 phase 4 wire and ground
Wave form Pure sine wave
Crest Factor 3:01
Rated Voltage 380/400/415V optional ±1% for static load, 5% forfluctuant load
Phase Voltage setting 200-244VAC, pls confirm when order
Transient Response ±5%,10ms
Frequency 50/60 Hz ±0.05%
Total-harmonic distortion < 3% linear load, <5%(nonlinear load)
short circuit current Short current for 0.1s(200% current)
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal
Battery Battery Maintenance free lead-acid cell
DC Voltage 384V
Max Charge Current 6-30A adjustable
Bypass Type Static state +manual maintenance bypass
Input Phase 3 phase 4wire and ground
Input Voltage Range 15% - 25% (the front control panel selectable)
Transfer Time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency Whole unit >85%
Inverter 93
Remote Signaling Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Communication Interface RS232 (SNMP, modem optional)
Running Temperature 0-40 degree Celsius
Relative Humidity Less than 95% (without condensing)
Noise at 1 M Less than 60dB
Degree of protection IP20
Applicable Standards EN50091-1-EMC, EN50091-2LIV.A
Product Size(mm)&Weight(Kg) 730mm*456mm*1165mm, 190Kg
Package Size(mm)&Weight(Kg)

850mm*570mm*1200mm, 215Kg



Three phase solar inverter for solar system project



20kw solar system

20kw power inverter

Three phase solar system feedback

three phase solar inverter 30kw

Tanfon Inverter Factory

China inverter factory

Tanfon Inverter Factory in Foshan, welcome to visit our factory.  (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)

China solar energy factory

solar system package

solar

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
