Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind hybrid system, solar and wind energy.
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Why Choose Tanfon?
|TANFON WSH2KW hybrid power system: 500w solar + 1000w wind|
Solar panel power: 1000W + Wind turbine kit: 1000W
Suitable for daily power consumption: 4.8-9KWH Allowable Max Loads power: 2KW
Home wind turbine kit (Qty: 1pc)
Free stand tower
Height: 5m tower Weight: 65KG
Wind turbine generator pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.
Easy to install
Solar Panel power(Qty: 2pcs)
FS250W mono solar panel(poly optional)
Vmp: 30V Voc: 36V Imp: 8.67A
Size: 1640*992*40mm 25 years life time (CE RoHS ISO)
Coated steel Glass: 3.2mm Tem pered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%
A Grade SUNTECH cells of high efficiency 20%
Solar power PV combiner (Qty: 1pc)
Model: H4T-48v Multiple PV strings inputs
Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Off grid solar wind hybrid system controller (QTY: 1pc)
Input 500W solar power + 1000W wind power
DC 48V input; MPPT intelligent control
Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.
Off grid solar wind hybrid system Battery (QTY: 4pcs)
Capacity: 12V/150AH, full sealed wind power gel battery
Service life: 6-8 years Size: 483*170*219mm
Connect way: 4pcs connect in series connect to inverter
Off grid solar wind hybrid system inverter (QTY: 1pc)
Rate output Power: 2KW pure sine wave
DC: 48v; AC: 110v or 220v
With AC charger build-in Protection against overload, short circuit, discharger, etc.
Double protection, import MOS tube and optocoupler
Off grid solar wind hybrid system Cables (QTY: 1 set)
1) 4pcs 16mm2*35CM battery cable connect
2pcs 16mm2*1M battery cable connect
2) 4mm2 PV cable 50M, 6mm2 wind cable 50M
3) terminals and MC4
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Home wind turbine kits
Home Wind Turbine Kit Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.
Solar Panel Power
|Solar PV panel characteristics|
|Maximum power at STC(Pmax)||250W|
|Optimum operating voltage(Vmp)||30V|
|Optimum operating current(Imp)||8.33A|
|Short-circuit current temperature coefficient||(0.065±0.015)%/℃|
|Open-circuit voltage temperature coefficient||-(80±10)mV/℃|
|Peak power temperature coefficient||-(0.5±0.05)%/℃|
|NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)||47±2℃|
|Operating temperature||-40℃ to 85℃|
|Maximum system voltage||600V DC|
|STC||Irradiance 1000W/m2, Module temperature 25℃, AM=1.5|
|TANFON Off Grid Solar Wind Hybrid System Project|

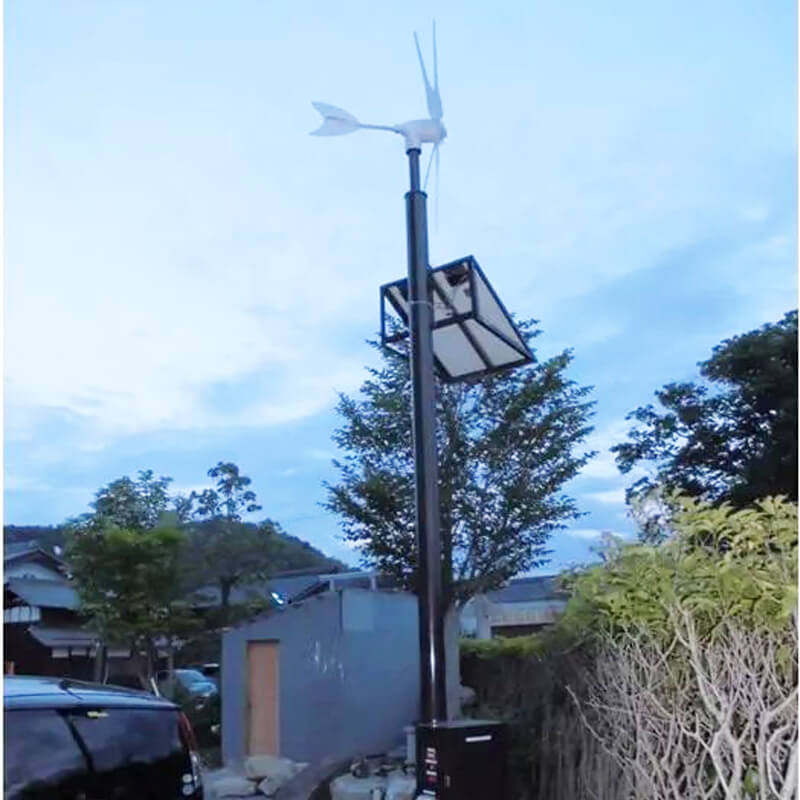

Tanfon 5kw off grid Solar Wind hybrid system installation in Philipplines (3kw home wind turbine kit and 2kw solar panel power system for home use)
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar wind hybrid system, solar and wind energy.
For solar wind hybrid system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.
Q1: If I want to buy a Off grid solar wind hybrid system, what details I need pay attention to?
A: See if the wind speed can reach the starting speed of the home wind turbine kit; the total power loads you want to carry.
Q2: For home use, which one is better?
A: Normally we sell 3kw & 5kw off grid solar wind hybrid system for home use.
Q3: What kind of tower can i choose?
A: Home Wind turbine kit Guy cable tower & Stand Alone Tower optional
Q4: How many days for delivery?
A: The 1kw off grid solar wind hybrid system normally for 10days. quantity order need about 25days.
Q5: What kind of package?
A: Off grid Solar wind hybrid system products, Export Standard Packing: suitable for tough handing and transport
Q6: About the payment?
A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)
30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C
