50kw wind power generator with full set parts

  Factory introduce: Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar &wind hybrid system(on grid and off grid systems). For win

Place Of Origin: foshan

BrandName: TANFON

MOQ: 1 set

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

 wind power generator

Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar &wind hybrid system(on grid and off grid systems).
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why choose TANFON wind products?

1. Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
2. Good quality, best price and better technical support and service, make Tanfon energy technology Co.,Ltd as your most valuable cooperator in China.

    (1)Generator use magnetic saturation technology, 20years designed life;

    (2)Low start wind speed;

    (3)Easy to install, it has small volume;

    (4)Anti-twist device, generator can whirl in each direction;

    (5)Anti strong wind, blade use reinforce engineering plastic material;

3. We insist on using good quality raw material whenever and wherever.

4. With customer’s’ praise as an assurance,Tanfon is a guaranteed brand.

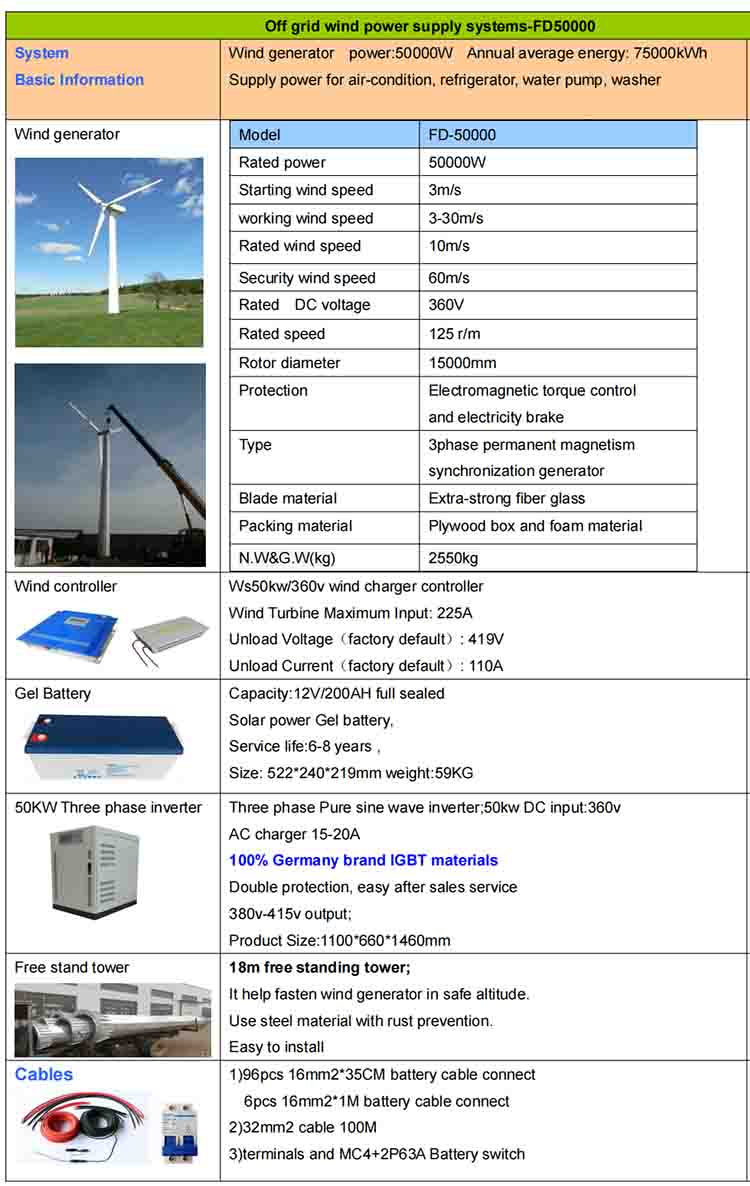

Off grid wind power supply systems-FD50000

System

Basic Information

Wind generator  power:50000W  Annual average energy: 75000kWh

Supply power for air-condition, refrigerator, water pump, washer

Total cost USD66271 ,total volume:27.5CBM /weight:11922KG

Wind generator





Model

FD-50000

Rated power

50000W

Starting wind speed

3m/s

working wind speed

3-30m/s

Rated wind speed

10m/s

Security wind speed

60m/s

Rated  DC voltage

360V

Rated speed

125 r/m

Rotor diameter

15000mm

Protection

Electromagnetic torque control

and electricity brake

Type

3phase permanent magnetism

synchronization generator

Blade material

Extra-strong fiber glass

Packing material

Plywood box and foam material

N.W&G.W(kg)

2550kg



QTY

1pc



Wind controller



Ws50kw/360v wind charger controller

Wind Turbine Maximum Input: 225A

Unload Voltage(factory default): 419V

Unload Current(factory default): 110A

QTY

1pc

Gel Battery



Capacity:12V/200AH full sealed

Solar power Gel battery,

Service life:6-8 years ,

Size: 522*240*219mm weight:59KG

QTY

90pcs





50KW Three phase inverter



Three phase Pure sine wave inverter;50kw DC input:360v

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

380v-415v output;

Product Size:1100*660*1460mm

QTY

1pc



Free stand tower



18m free standing tower;

It help fasten wind generator in safe altitude.

Use steel material with rust prevention.

Easy to install

QTY

1set



Cables



1)96pcs 16mm2*35CM battery cable connect

6pcs 16mm2*1M battery cable connect

2)32mm2 cable 100M

3)terminals and MC4+2P63A Battery switch

QTY

1set





Wind Generator Parts

 wind turbine kit

Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

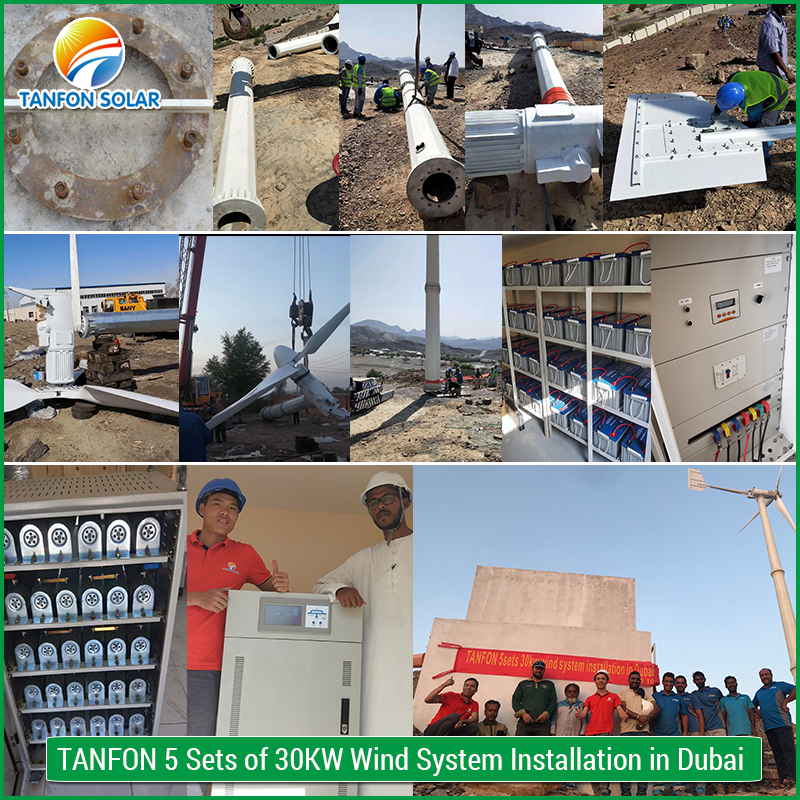

TANFON Wind Power Generator Project

wind generator installation

wind turbine project

Wind Power Generator Packaging

wind turbine

Tanfon engineer went to guide Wind turbine system installation in Senegal (5kw wind turbine system for home use)

wind power system

20KW wind Power System installed in Kenya

50kw wind turbine

TANFON Company

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar &wind hybrid system(off grid systems).
For wind system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

TANFON wind power

FAQ

Q1: If I want to buy a wind generator system, what details i need pay attention to?

A: See if the wind speed can reach the starting speed of the wind turbine; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 3kw & 5kw for home use.

Q3: What kind of tower can i choose?

A:Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A:Normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A:Export Standard Packing:suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C

Certification supports us

wind generator certificate

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

Quality is our culture, with us, your business in safe, your money in safe.
