20kw wind turbine prices permanent magnet generator project


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

20kw wind turbine prices permanent magnet generator project

wind turbine system 20kw

Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar &wind hybrid system(on grid and off grid systems).
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why choose TANFON wind products?

1. Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
2. Good quality, best price and better technical support and service, make Tanfon energy technology Co.,Ltd as your most valuable cooperator in China.

    (1)Generator use magnetic saturation technology, 20years designed life;

    (2)Low start wind speed;

    (3)Easy to install, it has small volume;

    (4)Anti-twist device, generator can whirl in each direction;

    (5)Anti strong wind, blade use reinforce engineering plastic material;

3. We insist on using good quality raw material whenever and wherever.

4. With customer’s’ praise as an assurance,Tanfon is a guaranteed brand.

TANFON off-grid wind power supply system-FD20000

Wind generator power: 20000W        Annual average energy: 50000kWh

Total volume: 9.2CBM                      Total weight: 6827KG

Wind Generator (QTY: 1 piece)

20kw wind generator

Model FD-20000
Rated power 20KW
Starting wind speed 3m/s
Working wind spped 3-30m/s
Rated wind speed 10m/s
Security wind speed 60m/s
Rated DC voltage 384V
Rated speed 150r/m
Rotor diameter 10000mm
Protection Electromagnetic torque control and electricity brake
Type 3phases permanent magnetism synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
Generator weight(kg) 1150KG

Free stand tower

Height: 12m tower      Weight: 3150KG

It helps fasten wind generator in safe altitude. Use steel material with rust prevention.

Easy to install

Wind turbine generator system with pole

wind controller

Wind controller (QTY: 1 piece)

Ws20kw/384v wind charger controller

Wind Turbine Maximum Input: 165A

Unload Voltage(factory default): 419V

Unload Current(factory default): 80A

Gel Battery (QTY: 32 pieces)

Capacity: 12V/200AH, full sealed wind power gel battery

Service life: 6-8 years  Size: 522*240*219mm

Connect way: 32pcs connect in series connect to solar hybrid inverter

200Ah gel battery for wind power system

20kw wind inverter

Off-Grid inverter (QTY: 1 piece)

TF20KW/384V pure sine wave three phase wind inverter (import MOS from USA ,IR brand)

380v-415v output

Protection against overload, short circuit, anti-reverse, discharge, etc.

Cable (QTY: 1 set)

64pcs 16mm2*35CM battery cable connect

2pcs 16mm2*1M battery cable connect

25mm2 cable 100M

Battery terminals

cables for wind power system

Wind Generator Parts

 wind turbine kit

Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

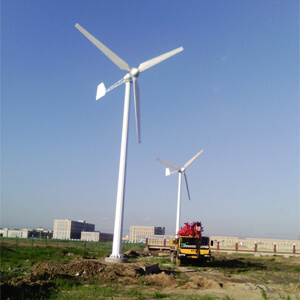

TANFON Wind Power Generator Project

wind generator installation

wind turbine project

Wind Power Generator Packaging

wind turbine

Tanfon engineer went to guide Wind turbine system installation in Senegal (5kw wind turbine system for home use)

wind power system

20KW wind Power System installed in Kenya

20kw wind generator

TANFON Company

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar &wind hybrid system(off grid systems).
For wind system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

TANFON wind power

FAQ

Q1: If I want to buy a wind generator system, what details i need pay attention to?

A: See if the wind speed can reach the starting speed of the wind turbine; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 3kw & 5kw for home use.

Q3: What kind of tower can i choose?

A:Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A:Normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A:Export Standard Packing:suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C
