Solar Pumping System
solar submersible water pump 3 hp
  • solar submersible water pump 3 hp
  • solar submersible water pump 3 hp
  • solar submersible water pump 3 hp
  • solar submersible water pump 3 hp
  • solar submersible water pump 3 hp

Tanfon 2.2kw solar submersible water pump 3 hp


Product Specification:

  • Place Of Origin: Guangdong,China
  • BrandName: TANFON
  • MOQ: 1 set
See Price

About solar submersible water pump

solar submersible water pump

It consists of a submersible pump, pump inverter, cable, solar panels and etc.
Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sunshine.

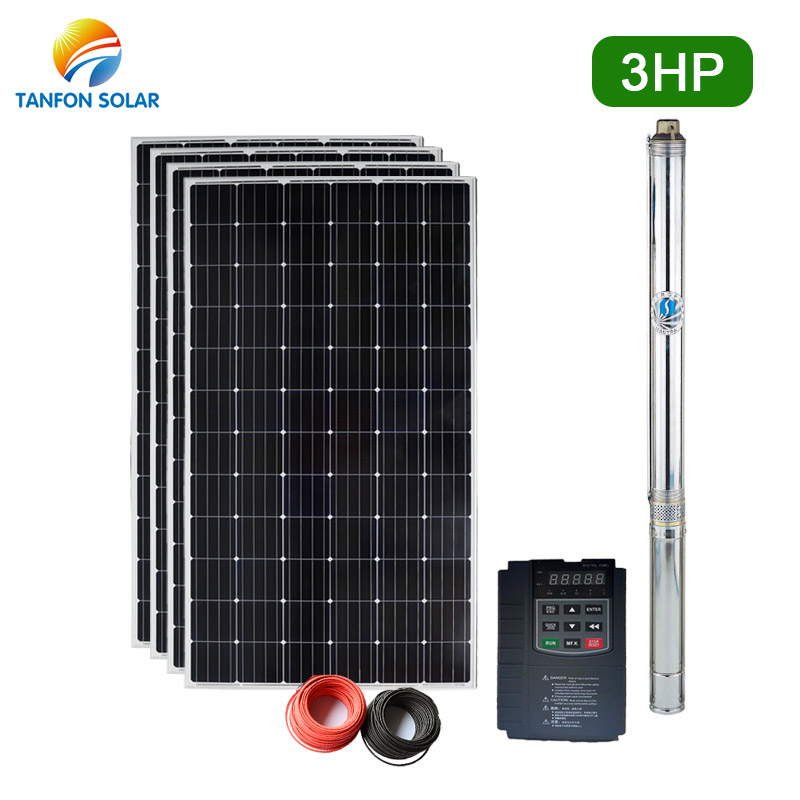

TANFON 3HP 2.2KW solar submersible water pump

solar panel mono 300w

Solar Panel (10pcs)

FS350W mono solar panel(poly optional)

Vmp: 38.39V   Voc: 47.13V    Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Pump Inverter (1 piece)

SPI100-2S-4B
Solar input votage:310V
MPPT controller: 450V-700V
MPPT effeiceny: 99.99%
Thunder protection,water full protection
Output:220V single phase

solar pump inverter

solar panel mounting rack

Solar Panel Rack (1set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Cables (1set)

7pcs 32mm2*35CM battery cable

2pcs 50mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

pv cables

solar pump

Pump (1piece)

Submersible water pump

50HZ,220V single phase

Body: AISI304

Impeller: AISI304

Suitable for well and river

3 hp 2.2kw solar submersible water pump head & capacity

4SP3-32 2.2KW 176m 1.2m³/h   154m 2.4m³/h 141m 3m³/h 123m 3.6m³/h  99m 4.2m³/h 68m 4.8m³/h
4SP5-22 2.2KW 117m 2.4m³/h 109m 3.6m³/h 95m 4.8m³/h 84m 5.4m³/h 67m 6m³/h 46m 6.6m³/h
4SP5-25 2.2KW 133m 2.4m³/h 124m 3.6m³/h 108m 4.8m³/h 95m 5.4m³/h 76m 6m³/h 53m 6.6m³/h
4SP8-12 2.2KW 67m 3.6m³/h 64m 4.8m³/h 59m 6.6m³/h 52m 8.4m³/h 40m 10.2m³/h 23m 12m³/h
4SP8-14 2.2KW 78m 3.6m³/h 74m 4.8m³/h 69m 6.6m³/h 60m 8.4m³/h 46m 10.2m³/h 27m 12m³/h
4SP14-7 2.2KW 44m 3m³/h 42m 6m³/h 39m 9m³/h 34m 12m³/h 28m 15m³/h 19m 18m³/h

If this 3 hp 2.2kw solar submersible water pump configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

solar pump project

solar submersible water pump project

why tanfon

solar submersible water pump - service

Quality:

  • Each set solar panel water pump has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



solar submersible water pump - factory

solar submersible water pump - tanfon factory

solar submersible water pump - packing

solar submersible water pump - Certificates
