4kw solar irrigation system 5.5hp agriculture solar pump


Product Specification:

  • Place Of Origin: Guangdong,China
  • BrandName: TANFON
  • MOQ: 1 set
See Price

About solar powered irrigation pump

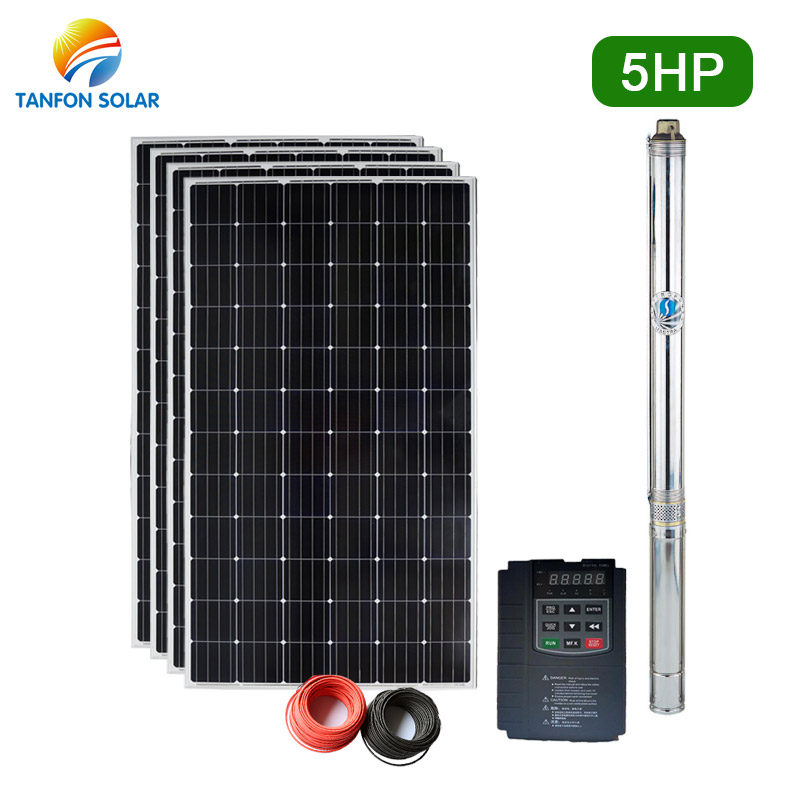

4kw solar irrigation system

It consists of a submersible pump, pump inverter, cable, solar panels and etc.
Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sunshine.

TANFON 4HP 3KW solar powered irrigation pump

solar panel mono 300w

Solar Panel (18pcs)

FS340W mono solar panel(poly optional)

Vmp: 38.39V   Voc: 47.13V    Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Pump Inverter (1 piece)

EP20-4T-5.5G
Solar input votage:310V
MPPT controller: 450V-700V
MPPT effeiceny: 99.99%
Thunder protection,water full protection
Output:220V single phase

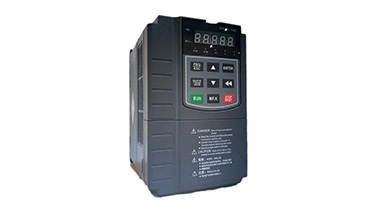

solar pump inverter

solar panel mounting rack

Solar Panel Rack (1set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Cables (1set)

7pcs 32mm2*35CM battery cable

2pcs 50mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

pv cables

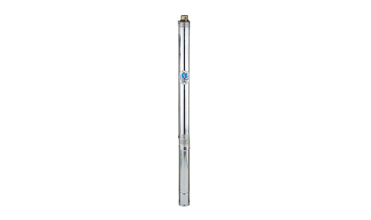

solar pump

Pump (1piece)

Submersible water pump

50HZ,220V single phase

Body: AISI304

Impeller: AISI304

Suitable for well and river

4kw solar irrigation system head & capacity

4SP5-38 4KW 202m 2.4m³/h 188m 3.6m³/h 163m 4.8m³/h 144m 5.4m³/h 116m 6m³/h 80m 6.6m³/h
4SP5-40 4KW 213m 2.4m³/h 198m 3.6m³/h 172m 4.8m³/h 152m 5.4m³/h 122m 6m³/h 84m 6.6m³/h
4SP5-44 4KW 234m 2.4m³/h 218m 3.6m³/h 189m 4.8m³/h 167m 5.4m³/h 134m 6m³/h 92m 6.6m³/h
4SP8-21 4KW 118m 3.6m³/h 111m 4.8m³/h 103m 6.6m³/h 90m 8.4m³/h 69m 10.2m³/h 40m 12m³/h
4SP8-24 4KW 134m 3.6m³/h 127m 4.8m³/h 118m 6.6m³/h 103m 8.4m³/h 79m 10.2m³/h 46m 12m³/h
4SP14-13 4KW 82m 3m³/h 77m 6m³/h 72m 9m³/h 64m 12m³/h 51m 15m³/h 35m 18m³/h

If this 4kw solar irrigation system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

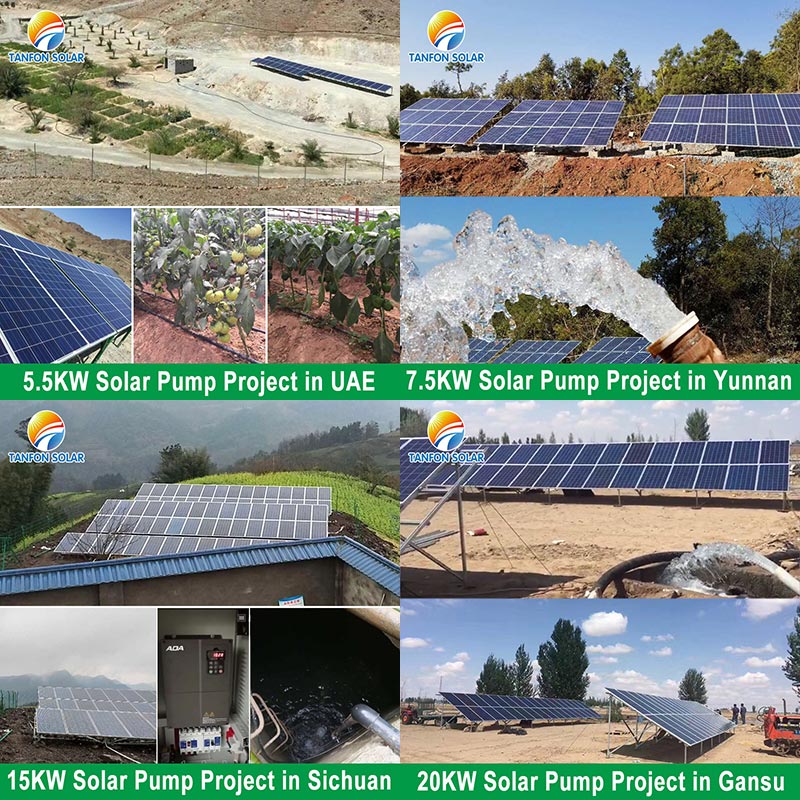

solar pump project

4kw solar irrigation system project

why tanfon

4kw solar irrigation system - service

Quality:

  • Each set solar irrigation system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



4kw solar irrigation system - factory

4kw solar irrigation system - tanfon factory

4kw solar irrigation system - packing

4kw solar irrigation system - Certificates
