Solar Pumping System
solar powered irrigation pump
  • solar powered irrigation pump
  • solar powered irrigation pump
  • solar powered irrigation pump
  • solar powered irrigation pump
  • solar powered irrigation pump

Tanfon 4hp solar powered irrigation pump 3kw system


Product Specification:

  • Place Of Origin: Guangdong,China
  • BrandName: TANFON
  • MOQ: 1 set
See Price

About solar powered irrigation pump

solar powered irrigation pump

It consists of a submersible pump, pump inverter, cable, solar panels and etc.
Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sunshine.

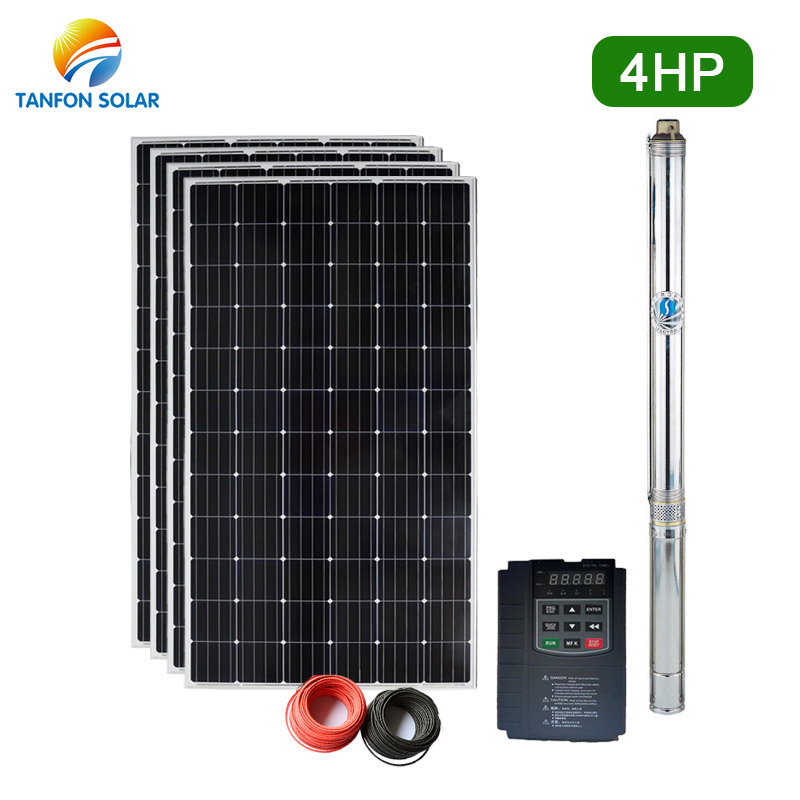

TANFON 4HP 3KW solar powered irrigation pump

solar panel mono 300w

Solar Panel (16pcs)

FS280W mono solar panel(poly optional)

Vmp: 38.39V   Voc: 47.13V    Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Pump Inverter (1 piece)

EP20-4T-4.0G
Solar input votage:310V
MPPT controller: 450V-700V
MPPT effeiceny: 99.99%
Thunder protection,water full protection
Output:220V single phase

solar pump inverter

solar panel mounting rack

Solar Panel Rack (1set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Cables (1set)

7pcs 32mm2*35CM battery cable

2pcs 50mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

pv cables

solar pump

Pump (1piece)

Submersible water pump

50HZ,220V single phase

Body: AISI304

Impeller: AISI304

Suitable for well and river

4hp 3kw solar powered irrigation pump head & capacity

4SP3-39 3.0KW 215m 1.2m³/h   187m 2.4m³/h 172m 3m³/h 149m 3.6m³/h   121m 4.2m³/h 83m 4.8m³/h
4SP3-44 3.0KW 242m 1.2m³/h   211m 2.4m³/h 194m 3m³/h 169m 3.6m³/h   136m 4.2m³/h 94m 4.8m³/h
4SP5-33 3.0KW 176m 2.4m³/h 164m 3.6m³/h 142m 4.8m³/h 125m 5.4m³/h 101m 6m³/h 69m 6.6m³/h
4SP8-18 3.0KW 101m 3.6m³/h 95m 4.8m³/h 88m 6.6m³/h 77m 8.4m³/h 59m 10.2m³/h 34m 12m³/h
4SP14-10 3.0KW 63m 3m³/h 60m 6m³/h 55m 9m³/h 49m 12m³/h 40m 15m³/h 27m 18m³/h

If this 4hp 3kw solar powered irrigation pump configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

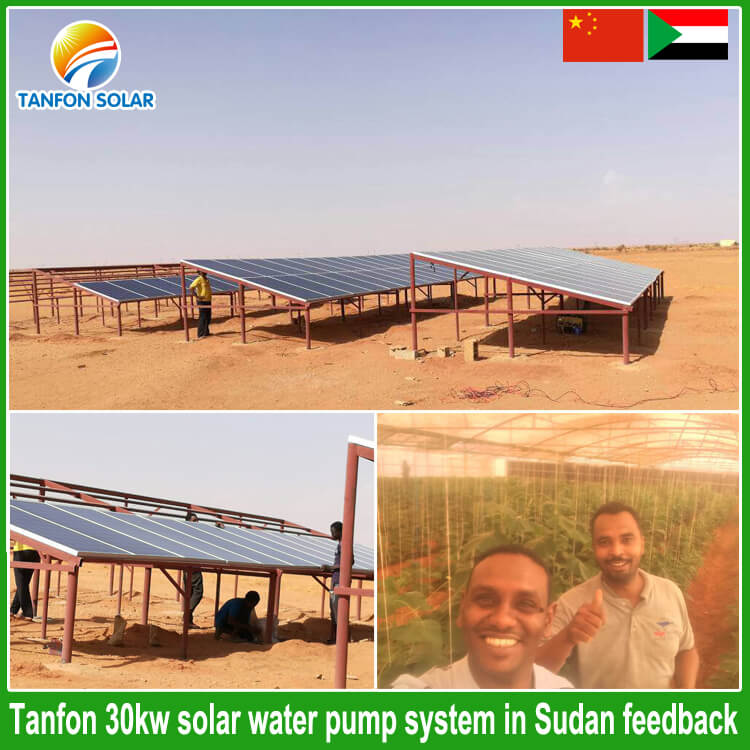

solar pump project

solar powered irrigation pump project

why tanfon

solar powered irrigation pump - service

Quality:

  • Each set solar powered irrigation pump has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



solar powered irrigation pump - factory

solar powered irrigation pump - tanfon factory

solar powered irrigation pump - packing

solar powered irrigation pump - Certificates
