Solar Pumping System
2hp solar water pump
  • 2hp solar water pump
  • 2hp solar water pump
  • 2hp solar water pump

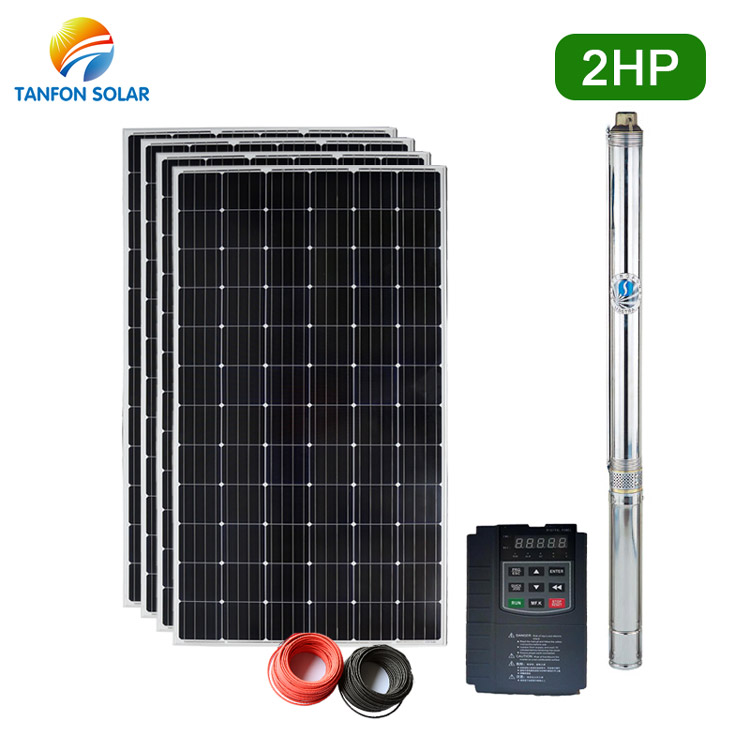

Tanfon 2HP 1.5KW small solar panel water pump


Product Specification:

  • Place Of Origin: Guangdong,China
  • BrandName: TANFON
  • MOQ: 1 set
See Price

Solar panel water pump

2HP small solar panel water pump

It consists of a submersible pump, pump inverter, cable, solar panels and etc.
Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sunshine.

TANFON 2HP 1.5KW solar pump

solar panel mono 300w

Solar Panel

FS350W mono solar panel(poly optional)

Vmp: 38.39V   Voc: 47.13V    Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

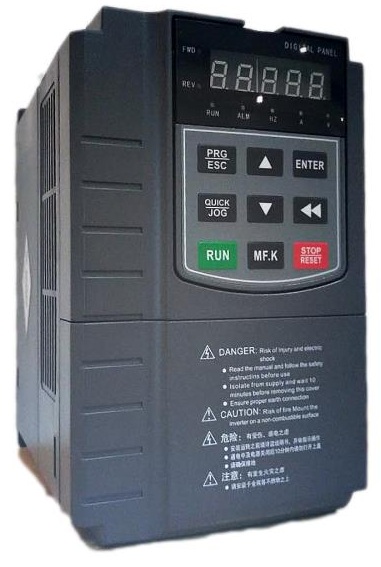

Pump Inverter

SPI100-2S-2.2B
Solar input votage:310V
MPPT controller: 450V-700V
MPPT effeiceny: 99.99%
Thunder protection,water full protection
Output:220V single phase

solar pump inverter

solar panel mounting rack

Solar Panel Rack

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Cables

7pcs 32mm2*35CM battery cable

2pcs 50mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

pv cables

solar pump

Pump

Submersible water pump

50HZ,220V single phase

Body: AISI304

Impeller: AISI304

Suitable for well and river

2HP 1.5kw solar water pump head & capacity

Item No. Power Head & Capacity
4SP3-22 1.5KW 121m 1.2m³/h   106m 2.4m³/h 97m 3m³/h 84m 3.6m³/h 68m 4.2m³/h 47m 4.8m³/h
4SP3-25 1.5KW 138m 1.2m³/h 120m 2.4m³/h 110m 3m³/h 96m 3.6m³/h 78m 4.2m³/h 54m 4.8m³/h
4SP5-17 1.5KW 90m 2.4m³/h 84m 3.6m³/h 73m 4.8m³/h 65m 5.4m³/h 52m 6m³/h 36m 6.6m³/h
4SP8-10 1.5KW 56m 3.6m³/h 53m 4.8m³/h 49m 6.6m³/h 43m 8.4m³/h 33m 10.2m³/h 19m 12m³/h
4SP14-5 1.5KW 32m 3m³/h 30m 6m³/h 28m 9m³/h 25m 12m³/h 20m 15m³/h 14m 18m³/h

If this 2HP 1.5kw solar water pump configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

solar pump project

solar pump project

why tanfon

Quality:

  • Each set solar panel water pump has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



2hp solar water pump - factory

2HP solar water pump - tanfon factory

2HP solar water pump - packing

2HP solar water pump - Certificates
