Three Phase Solar System
150kw solar power system
  • 150kw solar power system
  • 150kw inverter

solar energy electricity 3 phase 150kw solar panel system cost


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar energy electricity 3 phase 150kw solar panel system cost

30kw solar power system

Solar Power System Three Phase Output Complete Kit Connection Diagram

Product Description





How the off grid solar system working?
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.

What's the difference between off grid and on grid solar power system?

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

Solar Energy Ssytem Product Details



Three phase off grid solar power system TSP-150KW

solar panel mono 300w

Solar Panel (Quantity: 400 pieces)

FS360W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.37A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 4 pieces)

Model: H6T-384v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

how to connect  solar panel

solar controller

Solar Controller (Quantity: 4 pieces)

MPPT controller model: 384v/110A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 128 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 522*240*219mm

200Ah solar battery

30kw inverter 3 phase 380V output

Solar Inverter (Quantity: 1 piece)

Power Inverter: 150kw     DC input: 384v

Output: 380v 220v 50Hz (3phase )

Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

25mm2 battery cable 128pcs

6mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

Solar electricity installation projects



portable solar system solar generator system solar installation system

Events Room solar panel system for night market elertricity supply

Medical aid station solar system

Sales kiosk solar installation system

Container house installation solar system Apartment solar system Poultry farm solar system

Container house installation solar system

Apartment solar system

Poultry farm solar system

Rural community electricity supply solar power system Hotel used solar power system Solar Panel Power system for farm
Rural community electricity supply 20KW solar power system

Hotel used solar power system

Solar Panel Power system for farm

Solar power system for water treatment equipment Military base power supply solar system project solar power system for small motel

Solar power system for water treatment equipment

Military base power supply solar system project

solar power system for small motel with 6-8 bungalows in small islan

Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)

60kw three phase solar power system

2 megawatt power solar system

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.

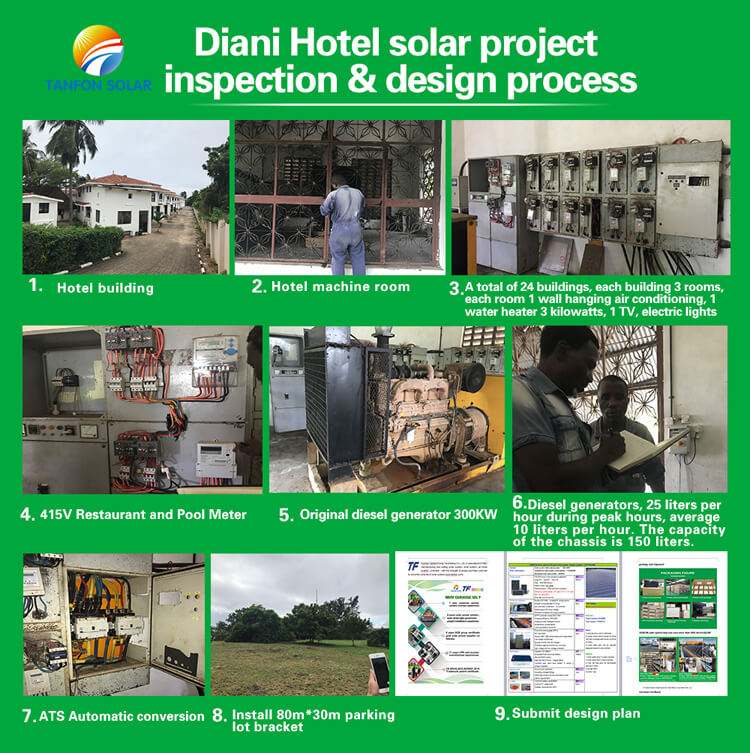

solar energy system design

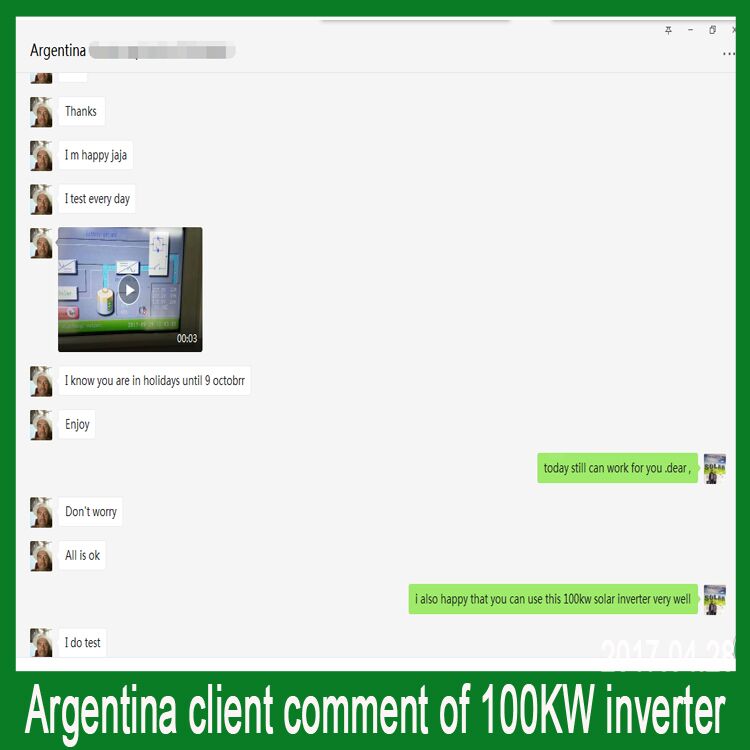

Solar power system feedback

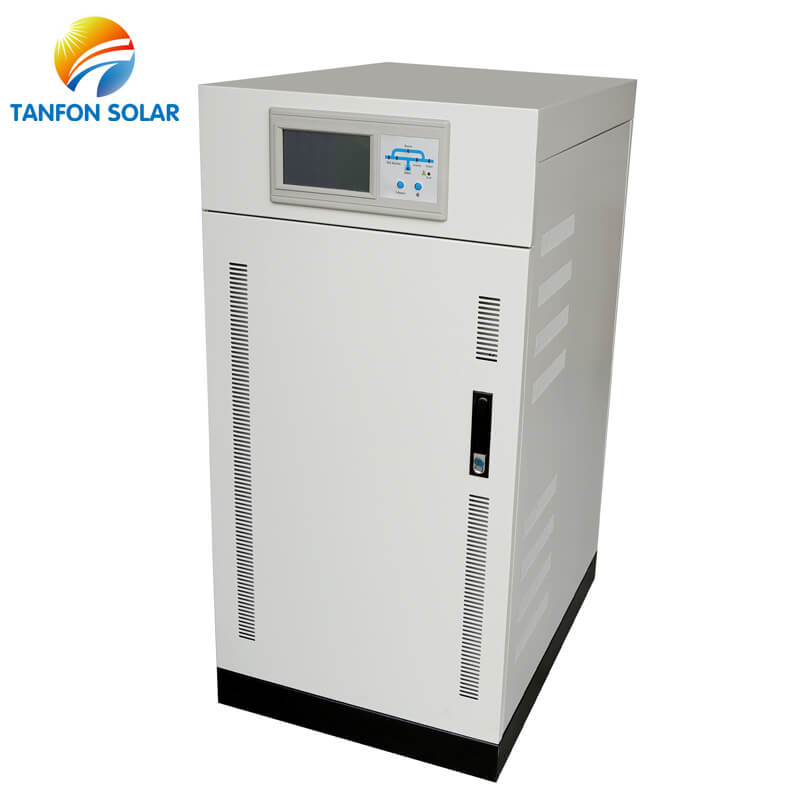

100kw solar inverter

Tanfon Factory Picture

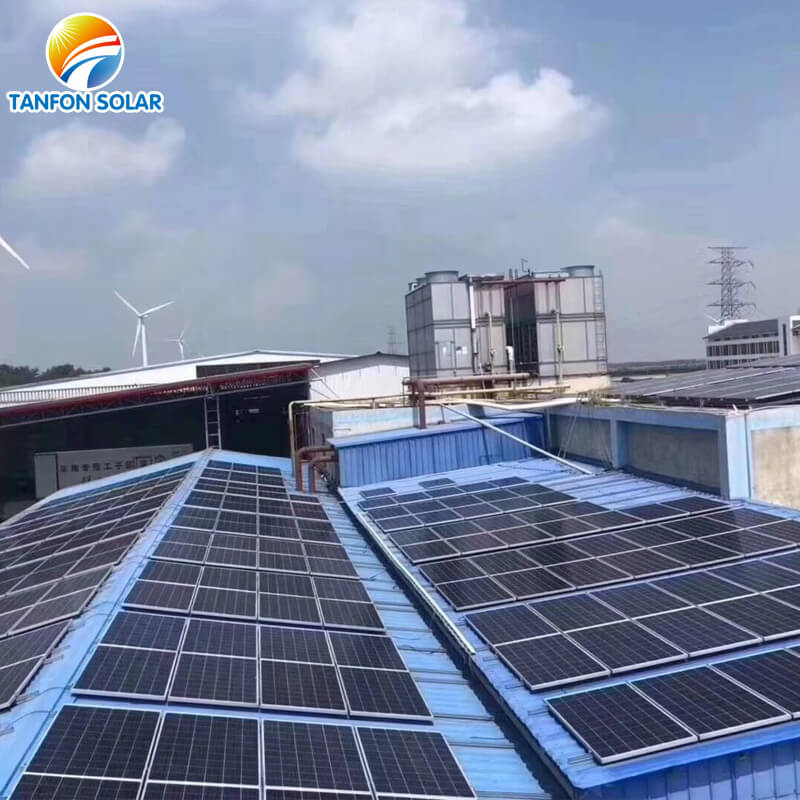

3 phase solar system

100kw solar system packaging

Solar Products FAQ



Q: What can be included for this system from TANFON?

A:This system includes: Solar panels, PV array combiner, Solar inverter, Solar controller, Gel free maintenance battery, Solar panel rack, cables.,etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 150kw system may be with different configuration.

Q: What is the 150KW solar system complete set package?

A: solar panel and battery pallet packing

PV combiner and hybrid inverter wooden box

Bracket and cable carton box packing

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
