Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system, water pump, street lights, CCTV.
2)Troubleshoot and reduce maintenance costs
3)Develop your branded APP to enhance competitiveness

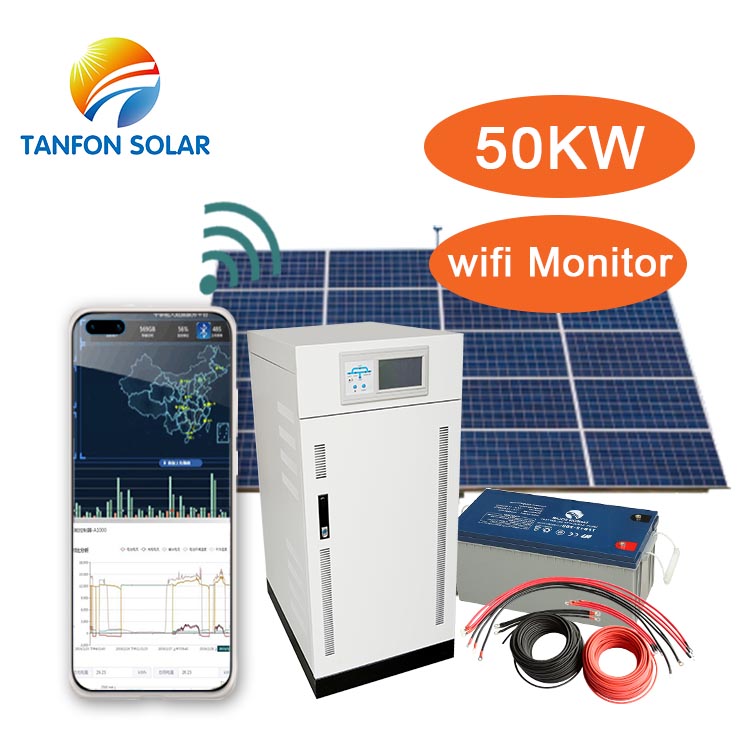

50kW 3 phase solar system for a beach lodge
How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.
What's the difference between off grid and on grid solar power system?
Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
|Solar Energy Ssytem Product Details|
550kW 3 phase solar system for a beach lodge
Solar Panel (Quantity: 130 pieces)
FS380W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.25A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
PV combiner (Quantity: 2 pieces)
Model: H6T-360v Multiple PV strings inputs
Simplify wiring between PV array and controller,
protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Solar Controller (Quantity: 2 pieces)
MPPT controller model: 360v/80A
Charging efficiency: 90%-95%,
Charging mode, intelligent control.
Various protection functions
Solar Battery (Quantity: 90 pieces)
Full sealed Solar power gel battery,
Service life: 6-8 years ,
Solar Inverter (Quantity: 1 piece)
Solar three phase Inverter power:T50kw/360v
Low voltage: 324V High voltage: 426V
Charging efficiency; 90%-95%, with AC charger built-in, Protection against short-circuit,
Output: 220V 380V 415V 50/60HZ
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Cables (Quantity: 1 set)
84pcs 16mm2*35CM battery cable
6pcs 16mm2*1M battery cable
4mm2 PV cable 300M
Terminals and MC4
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
|Three Phase 50KW solar power system connection diagram|
380W solar panel 130pcs, 13pcs connect in series, 10 groups in parallel connect to H6T-360 PV combiner(ten input one output), then connect to two solar controller, controller connect to the batteries, 200Ah 12V gel battery 90pcs, 30pcs connect in series, 3 groups in parallel, then connect to the three phase inverter.
|Solar Power System Projects|
Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)
Why Choose Tanfon?
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
|Solar power system feedback|
|Tanfon Factory Picture|
|Solar Products FAQ|
Q: What can be included for this system from TANFON?
A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
Q: What can Tanfon supply?
A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
|Solar Products Certificate|
