complete kit home house solar plant BR



Solar Energy Ssytem Product Details

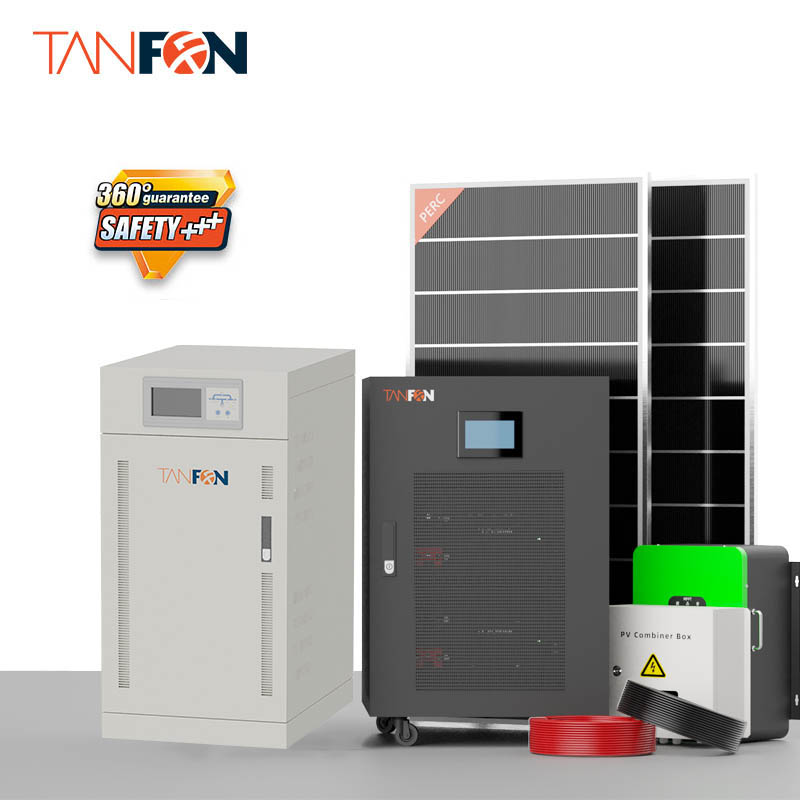

Three Phase Off Grid 40KW Solar Power System

Solar panel
TFD600W half cell solar panel(LonGi N type TopCon Solar Cell)
Vmp:42.85V Voc:51.30V Imp:14.00A Isc:14.7A
182*91cells*144pcs (6*24) Efficiency: 22.38%
weight: 27.4KG Size: 2279*1134*35mm ,15series 4parallels Strong anti-cracking advantage 25 years product warranty

Model:H6T-360V Multiple PV strings inputs and controller, protections to controller,

Wide range of DC input voltage max circuit voltage: 1000V
Reliable thunderstorm& surge protection

200KW Off Grid Solar System Price

MPPT PV controller model:360V/100A
MPPT efficiency; >99.9%, Max input voltage :800V
various protection functions;
Size:500*384*228mm ,weight:27KG

Lithium Battery
Model number: TFES384-300W Voltage: 384v Capacity: 300AH Nominal capacity: 115KWh safety discharge current:150A,safety discharge coefficient:0.5C
Cycle life: 6000 Material: LiFePO4 Application: solar power With display to monitor With IOT extend warranty:10 years
With high voltage system cabinet Size:600*1000*1800mm

200KW Off Grid Solar System Price

Solar three phase Inverter power:T40kw/360v
Low voltage:324V High voltage:442V, Charging efficiency:90%-95%, AC charger 10-30A ,60% stronger 100% Germany brand IGBT materials Output: 220V 380V 415V 50/60HZ
With IOT extend warranty:5 years

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

200KW Off Grid Solar System Price

200KW Off Grid Solar System Price

Cables (Quantity: 1 set)

25mm2 battery cable 180pcs

6mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

Get price now


How the off grid solar system working?
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.


What's the difference between off grid and on grid solar power system?

Off Grid Solar Power System

On Grid Solar Power System

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

Solar System Installation Case

200KW Off Grid Solar System Price

Tanfon Airport Projects200kw solar plant system(click to know more details about this project)
