Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system, water pump, street lights, CCTV.
2)Troubleshoot and reduce maintenance costs
3)Develop your branded APP to enhance competitiveness
Solar Power System Three Phase Output Complete Kit Connection Diagram
How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.
What's the difference between off grid and on grid solar power system?
Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
|Solar Energy System Product Details|
Solar Panel (Quantity: 156 pieces)
FS380W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.25A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
PV combiner (Quantity: 2 pieces)
Model: H8T-360v Multiple PV strings inputs
Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Solar Controller (Quantity: 2 pieces)
MPPT controller model: 360v/100A
Charging efficiency: 90%-95%,
Charging mode, intelligent control.
Various protection functions
Solar Battery (Quantity: 180 pieces)
Full sealed Solar power gel battery,
Service life: 8-10 years ,
Solar Inverter (Quantity: 1 piece)
Pure sine wave inverter 60KW/360VDC input
Use copper transformer; Bypass function with AC charger;
Product size: 1000*600*1460mm Weight:550KG
Output: 220V 380V 415V 50/60HZ
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Cables (Quantity: 1 set)
180pcs 16mm2*35CM battery cable
16pcs 16mm2*1M battery cable
4mm2 PV cable 400M
25mm2 battery cable 100M
Terminals and MC4
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
|Solar Power System Projects|

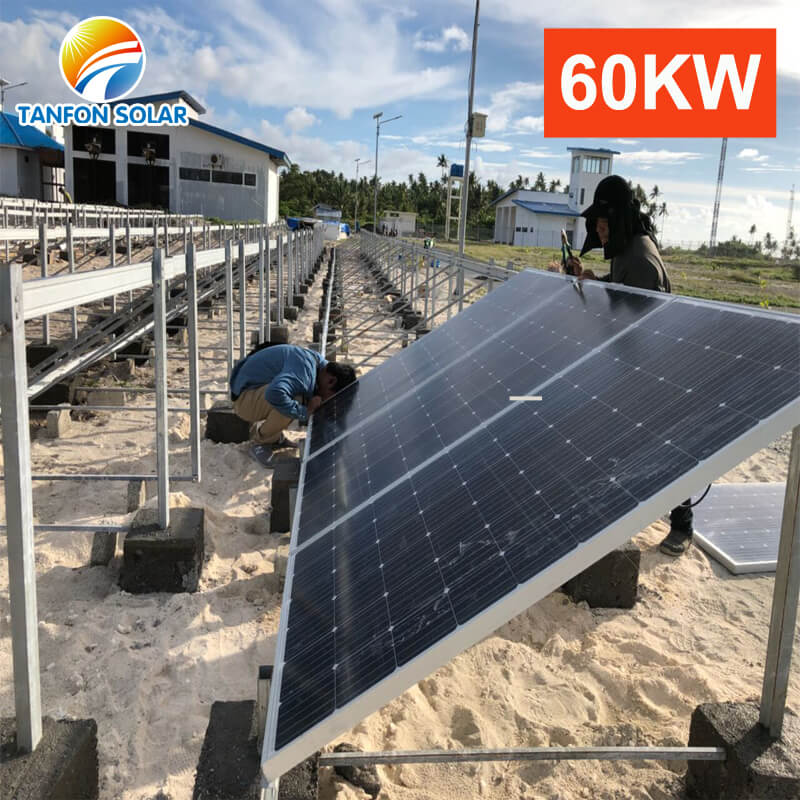

Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)
Why Choose Tanfon?
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
|Solar power system feedback|
|Tanfon Factory Picture|
|Solar Products FAQ|
Q: What can be included for this system from TANFON?
A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
Q: What can Tanfon supply?
A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
Q:Will TANFON go to Global Exhibition?
A:we hope tanfon team also can meet with you in your country!
