What Tanfon solar power plant advantage:
24 hours storage design
One stop service
Save 90% Electricity Bill

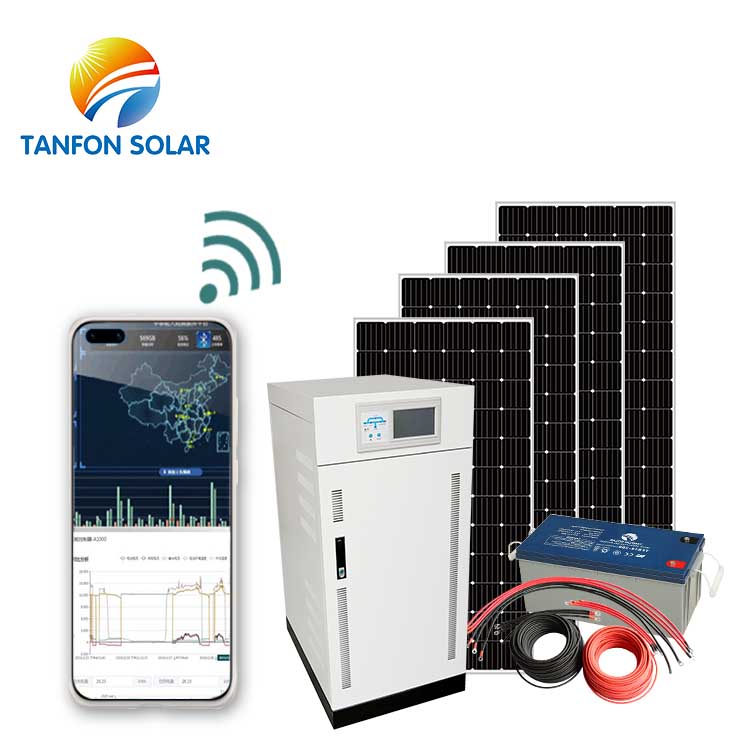

15000 Watt Solar Energy Generator 15 kva Off Grid Triphase Full System
15 kw Off Grid Triphase Full System
Who we are?
Tanfon is TOP10 solar power plant project factory in china
15 Kva solar system for responding RFP in Ethiopia
What we do?
Expert of solar power plant,industrial solar power generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases
How we do ?
Tanfon solar--German technology, Chinese price, Global service
1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.
2).Our Chinese factory is mainly responsible for the supply chain management and production
3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local
|solar power plant Product Details|
Solar poer plant Panel (Quantity: 78 pieces)
FS380W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.75A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
PV combiner (Quantity: 1 piece)
Model: H6T-384v Multiple PV strings inputs
Simplify wiring between PV array and controller,
protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Product Size: 400*425*145mm
Solar power plant Controller (Quantity: 1 piece)
MPPT controller model: 360V/100A
Charging efficiency; 90%-95%,
charging mode, intelligent control,
various protection functions
Solar power plant Inverter (Quantity: 1 piece)
Pure sine wave inverter:
15kw(full power Triphase)
DC input: 360v AC charger 15-20A
100% Germany brand IGBT materials
Double protection, easy after sales service
O/P: 220V 380V 415V 50/60HZ
Product Size: 785*580*1197mm
Solar power plant Battery (Quantity: 60 pieces)
Full sealed Solar power gel battery,
Service life: 6-8 years ,
Solar power plant Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
solar power plant Cables (Quantity: 1 set)
62pcs 32mm2*35CM battery cable
4pcs 50mm2*1M battery cable
4mm2 PV cable 200M
Terminals and MC4
solar power plant Easy installation:
If this off grid 15000 watt solar power plant configuration do not suit for you request, please send inquiry to us to discuss more, we will make the suitable design system for you
|solar power plant system projects:|
|Why TANFON is your right Choice?|
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
solar power plant Customer Real Feedback:cost of solar energy solar power kit
