120KW Solar System Price 120KVA Off Grid Solar Power Panel With Battery


Product Specification:

  • Place Of Origin:
  • BrandName: TANFON
  • MOQ: 1 set,Accpet OEM &ODM
  • Certificate: ISO, ETL, TUV, CE, RoHS
  • Payment: T/T, L/C, Paypal, Western Union
See Price

120KW Solar System Price 120KVA Off Grid Solar Power Panel With Battery



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Malaysia,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Malaysia,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local



Solar Energy Ssytem Product Details



Three Phase 120KVA Off Grid Solar Power System

150KW Off Grid Solar System Price

Solar Panel (Quantity: 390 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 3 pieces)

Model: H10T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

150KW Off Grid Solar System Price

150KW Off Grid Solar System Price

Solar Controller (Quantity: 3 pieces)

MPPT controller model: 360v/150A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 180 pieces)

Capacity: 2V/1200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 479*175*338mm

150KW Off Grid Solar System Price

150KW Off Grid Solar System Cost

Solar Inverter (Quantity: 1 piece)

Power Inverter: 120kw     DC input: 360v

Output: 380v 220v 50Hz (3phase )

Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

150KW Off Grid Solar System Cost

150KVA Off Grid Solar System Cost

Cables (Quantity: 1 set)

25mm2 battery cable 180pcs

6mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M



If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.



Get 120KW Solar System Price Now

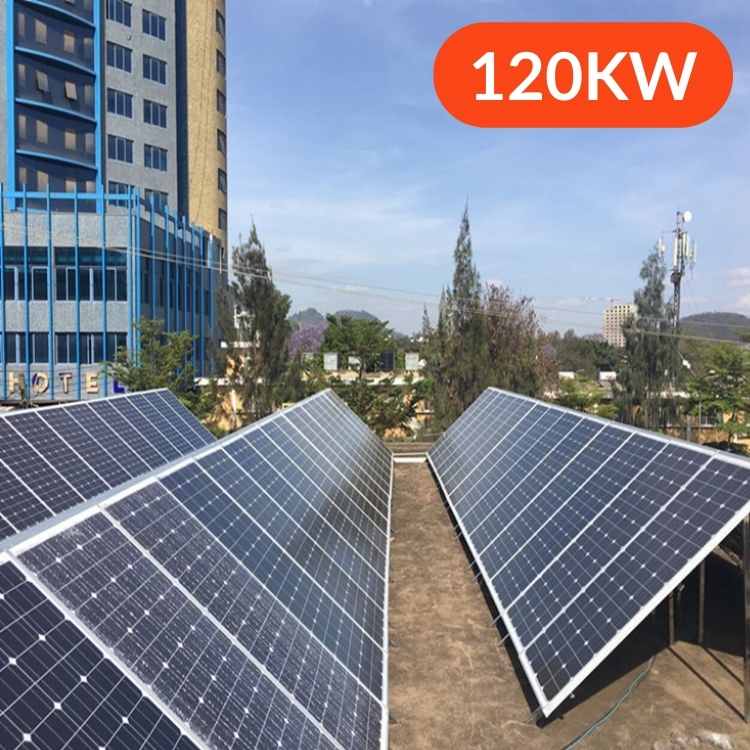

Solar System Installation Case


(click to know more details about this project)



150KVA Off Grid Solar System Cost

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



Tanfon Factory Picture



150KVA Off Grid Solar System Price

150KVA Off Grid Solar System Price



150KVA Off Grid Solar System Price
