Single Phase Solar System
10kw solar system with battery .jpg
  • 10kw solar system with battery .jpg

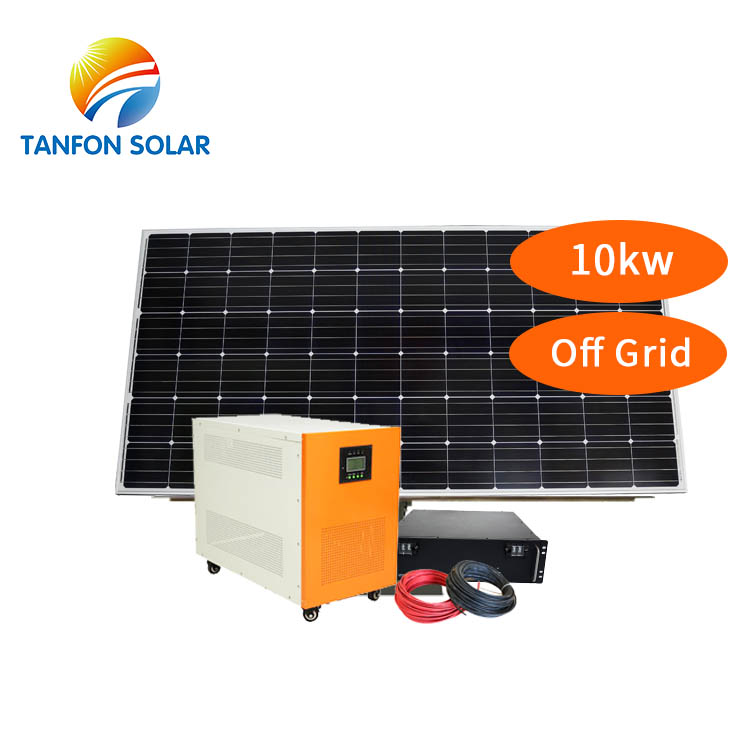

Solar System 10000 Watt Off Grid Solar Power Energy Panel Nigeria


Product Specification:

  • Place Of Origin:
  • BrandName:
  • MOQ:
  • Certificate: ISO, ETL, TUV, CE, RoHS
  • Payment: T/T, L/C, Paypal, Western Union
See Price

Who we are?

Tanfon is TOP10 solar powered generator project factory in china

solar power generator

What we do?

Expert of  home system,industrial solar powered generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases



How we do ?

Tanfon solar--German technology, Chinese price, Global service

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation

Solar generator Product Details



Solar System 10000 Watt Off Grid Solar Power Energy Panel Nigeria

solar powered generator

Solar Panel (Quantity: 20pieces)

FS350W mono solar poered generator panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Solar generator PV combiner (Quantity: 1 piece)

Model: H6T-96v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 360*345*145mm

solar power generator

solar power generator

IGBT Solar generator Inverter (Quantity: 1 piece)

Inverter power: TF10kw/96v

MPPT Controller model: 96v/100A, AC charger: 15-20A

Bypass function with AC charger

Double protection, easy after sales service

O/P: 110V, 220VAC

Solar powered generator Battery (Quantity: 16pieces)

Capacity: 12V/200AH

Full sealed Solar power system gel battery,

Service life: 6-8 years ,

Size:522*240*219mm

solar power generator

solar power generator rack

Solar powered generator Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar powered generator Cables (Quantity: 1 set)

14pcs 16mm2*35CM battery cable

4pcs 16mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

solar power generator



Easy installation:

solar powered generator

If this off grid 10000 watt solar powered generator configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

solar powered generator

solar powered generator

Solar powered generator projects:



solar powered generator

Why TANFON is your right Choice?

Quality:

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



Solar powered generator Customer Real Feedback:

Send Inquiry now!



write us

Welcome to our company website, thank you for your letter, we will give you a reply in the first time, would you please leave your information and contact way!

Submit A Request
Top 10 solar project solution factory in china
Pass the SGS inspection certificate of qualification for the follow countries: Algeria, Gabon, Ghana, Cameroon, Kenya, Qatar, Ivory Coast, Ethiopia, Tanzania, Saudi Arabia, Nigeria, Burundi, Mongolia, Uganda, Egypt.
