Protable DC and AC Solar System
portable solar panel kit
  • portable solar panel kit
  • solar panel generator

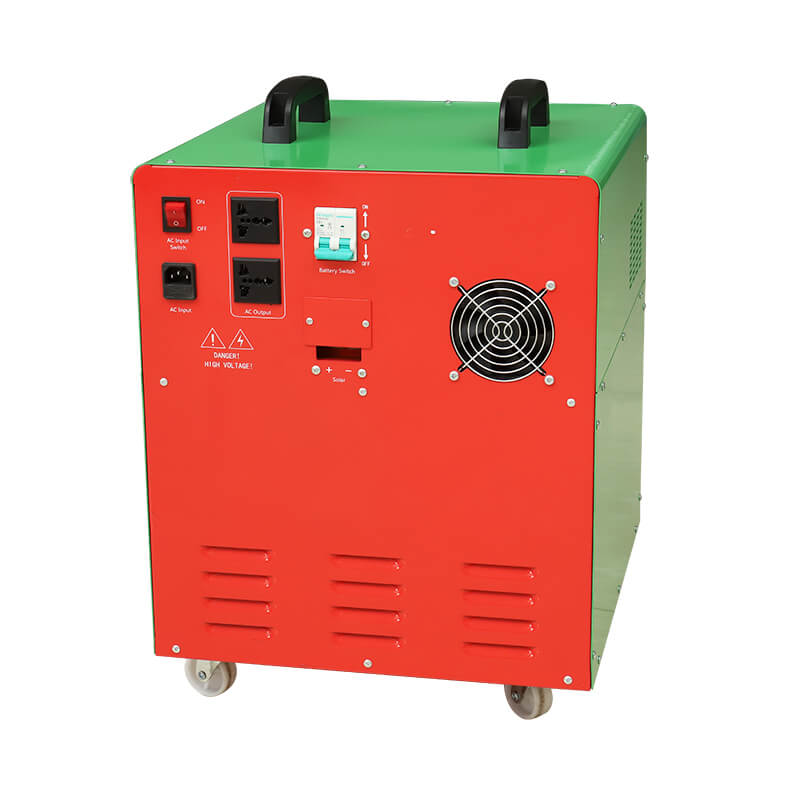

Portable solar panel kit generator 1kw inverter battery for DC and AC load


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

portable solar panel kit

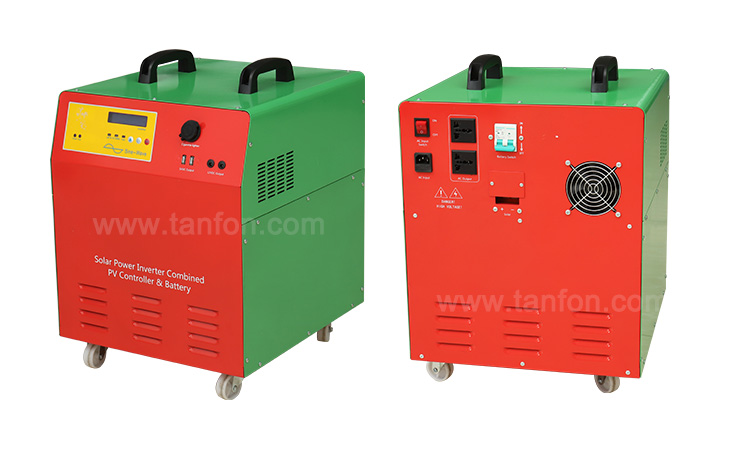

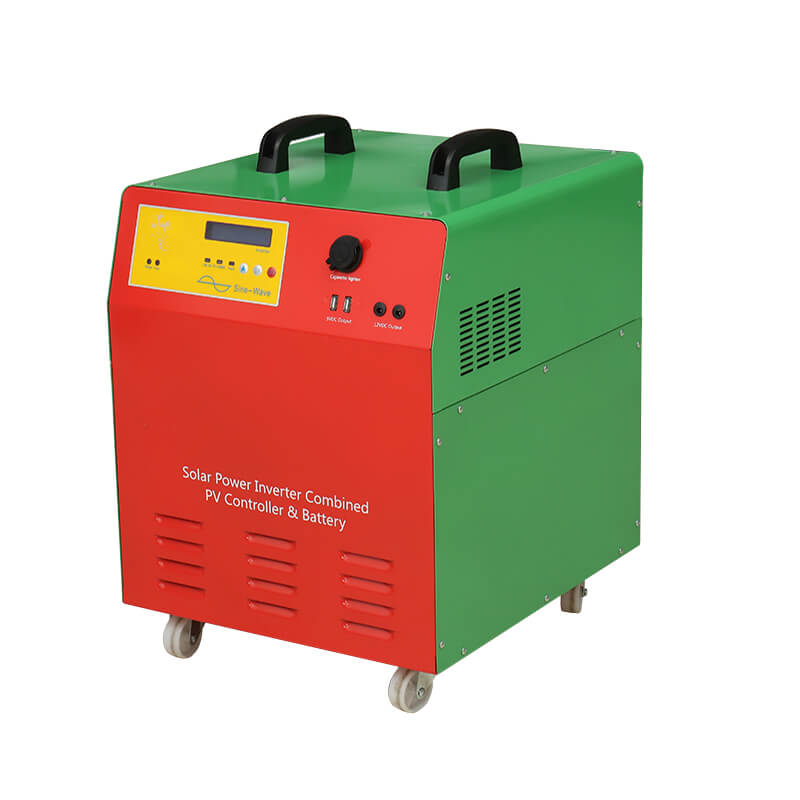

Portable solar panel kit (Solar power inverter combined PV controller & battery)



portable solar panel kit



portable solar panel kit



Portable solar panel kit inverter battery generator features
1. Solar power controller and inverter with AGM free maintenance battery together
2. Completely controlled by CPU.
3. Inverter use copper transformer, pure sine wave output.
4. Have 5V, 12V DC output.
5. Two LCD displays, clearly to know the status.
6. Have bypass function and AC charger (UPS function)
7. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc.

Capacity:

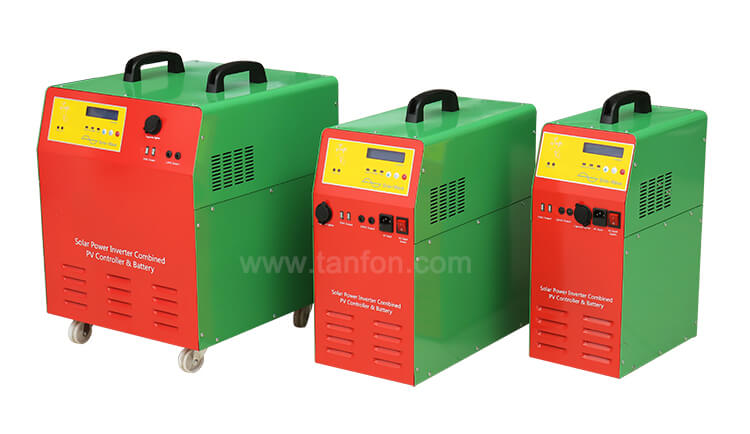

DC portable solar panel kit 4.5Ah to 55Ah

DC&AC portable solar panel kit inverter battery generator 100w to 5000w

Inverter controller and battery all in one box max capacity can be designed 5000w.

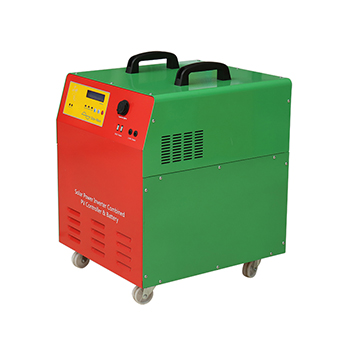

portable inverter generator

1000W portable solar panel kit inverter battery generator hybrid box
Model SCB1000W
Rated power(W) 1000W
Rated DC voltage(V) 24V
Line input Input voltage(V) 165-275V
Charge current(A) 42A
Inverter output AC Output voltage(V) 220VAC±5%
DC output voltage(V) 5V&12V
Output frequency 50Hz/60Hz±1%
Wave form Pure Sine Wave, THD<4%(Full Load)
Solar input Maximum voltage(V) 44V
Rated power(Wp) 1000Wp
Charge current(A) 20A
MPPT range(V) 24V-50V
Charging efficiency 90%-95%, Peak on 97%
Battery Capacity(AH) 55AH*2pcs or 55AH*4pcs
Over charge protective voltage(V) 28.6V
Over charge recover voltage(V) 27.4V
Over discharge alarm voltage(V) 40V
Over discharge recover voltage of battery(V) 25V
other Voltage drop between solar module and battery(V) ≤0.3V
Voltage drop between loads and battery(V) ≤0.15V
Start speed of cooling fan Have
Environment Humidity 0-90% Maximum,non-condensable
Protective Functions Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
Control method MPPT
Product Size :D*W*H(mm) 423*260*453mm
Package size 520*370*520mm
N.W./G.W.(kg) 46/48mm

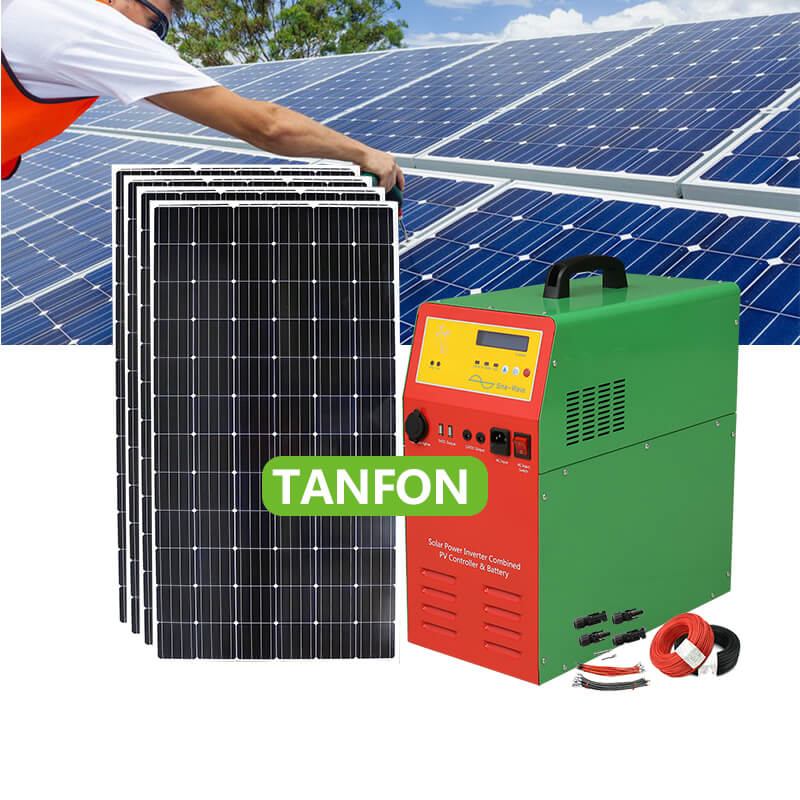

All-in-one portable solar panel kit inverter battery generator-ASP1000w
System Basic Information

solar panel rated output power: 500W

Suitable for daily power consumption : >3KWH

Allowable max loads power : 1000W

solar electric system

Solar Panel (Quantity: 2pcs)

FS250W mono solar panel (poly optional)

Vmp: 34.4V    Voc: 43.2V      Imp: 7.27A

Size: 1640*992*35mm

Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Ship free one for service

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

portable inverter generator
portable solar panel kit

Portable inverter battery generator (QTY: 1pc)

Model: SCB1000W/24V

Inverter: 1000W/24V(pure sine wave)

LCD display, With AC charger built in

AC Output: 110v, 220v, 230v, 240v (optional)

Output: 5V and 12V (led lights and mobile charge)

MPPT controller: 30A/24v

Build-in Gel battery: 12V/55AH (2pcs)

AGM free maintenance valve control

Cables (Quantity: 1 set)

4mm2 PV cable 50M

Terminals and MC4

solar electric system pv cables



Portable solar panel kit inverter battery generator application



portable inverter generator



Home lighting, fans working, camping lighting, outdoor party lighting, ect.

Portable solar DC power system, portable solar DC&AC power system, inverter controller and battery all in one box

portable inverter generator

Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.



Solar power kit Feedback



portable inverter generator



Want to get more feedbacks from our customers using the solar electric system, please contact to us.



Tanfon Factory Solar portable inverter battery generator producing pictures



3000 sets portabel solar panel kit inverter battery generator order producing



portable inverter generator



Portable solar panel kit inverter battery generator Package



solar power kit



Tanfon Inverter Factory in Foshan, welcome to visit our factory.  (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)



Portable solar panel kit inverter battery generator 40' container loading



portable inverter generator



Portable solar panel kit inverter battery generator Certificate



solar electric system portable inverter generator



Portable solar panel kit inverter battery generator FAQ

Q1. Are you factory?

A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.

Q2. How long is solar electric system portable inverter generator products warranty?

A2.YES, All products are at least 2 years warranty.

Q3.What is the shipping way of solar electric system portable inverter generator?

A3. Ship by sea.

Q4. What is the payment method?

A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / MoneyGram /Alibaba can also be used.

Q5.Can we design packaing?

A5.YES.We can customer's own packing

Q6.Can we add our logo on products?

A6.YES.you can add your logo on products.

Q7.Can we customize product?

A7.YES.OEM&ODM.

Q8.what is TANFON solar electric system portable inverter generator after sales service

A9.during the warranty, ship free PCB by DHL or FEDEX.

Q9.what is your trade Asusurance

A10:100% product quality protection

        100% product on time shipment protection

        100% payment protection for your covered amount

 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
