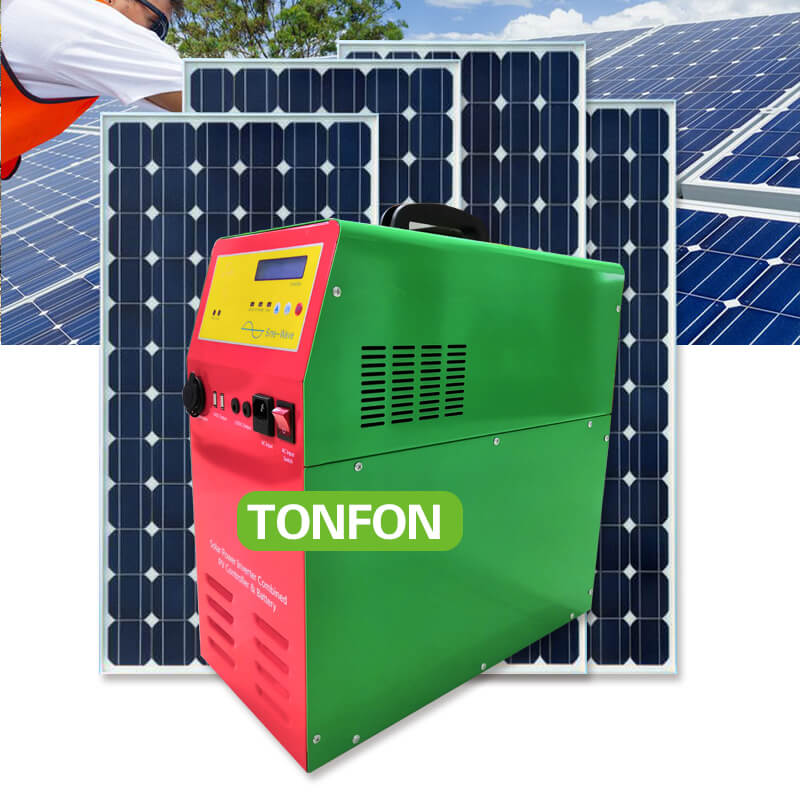

|Portable inverter generator (Solar power inverter combined PV controller & battery)|
|Solar electric system portable inverter generator features|
|1. Solar power controller and inverter with AGM free maintenance battery together|
|2. Completely controlled by CPU.|
|3. Inverter use copper transformer, pure sine wave output.|
|4. Have 5V, 12V DC output.|
|5. Two LCD displays, clearly to know the status.|
|6. Have bypass function and AC charger (UPS function)|
|7. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc.|
DC portable solar electric system 4.5Ah to 55Ah
DC&AC solar portable inverter generator solar electric system100w to 5000w
Inverter controller and battery all in one box max capacity can be designed 5000w.
|300W solar portable inverter generator controller battery hybrid box|
|Rated DC voltage(V)||12V|
|Line input||Input voltage(V)||165-275V|
|Inverter output||AC Output voltage(V)||220VAC±5%|
|DC output voltage(V)||5V&12V|
|Wave form||Pure Sine Wave, THD<4%(Full Load)|
|Solar input||Maximum voltage(V)||21V|
|Charging efficiency||90%-95%, Peak on 97%|
|Battery||Capacity(AH)||55AH*1pc or 100AH*1pc|
|Over charge protective voltage(V)||14.3V|
|Over charge recover voltage(V)||13.7V|
|Over discharge alarm voltage(V)||20V|
|Over discharge recover voltage of battery(V)||12.5V|
|other||Voltage drop between solar module and battery(V)||≤0.3V|
|Voltage drop between loads and battery(V)||≤0.15V|
|Start speed of cooling fan||Have|
|Environment Humidity||0-90% Maximum，non-condensable|
|Protective Functions||Protection against anti-charge at night；Battery over charge/over discharge protection; Joint-reversed of solar modules|
|Product Size :D*W*H(mm)||343*225*443mm|
|All-in-one solar electric system portable inverter generator-ASP300w|
|System Basic Information||
solar panel rated output power: 300W
Suitable for daily power consumption : >1.5KWH
Allowable max loads power : 300W
Solar Panel (Quantity: 1pc)
FS200W mono solar panel (poly optional)
Vmp: 17.2V Voc: 21.6V Imp: 7A
Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%. 25 years life time (CE TUV)
Ship free one for service
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Solar portable inverter generator (QTY: 1pc)
Inverter: 300W/12V(pure sine wave)
LCD display, With AC charger built in
AC Output: 110v, 220v, 230v, 240v (optional)
Output: 5V and 12V (led lights and mobile charge)
MPPT controller: 20A/12v
Over charge protective voltage: 14.3v
Constant charge voltage: 13.5v
Build-in Gel battery: 12V/55AH (1pc)
Max DC charge: 14.5v
AGM free maintenance valve control
Cables (Quantity: 1 set)
4mm2 PV cable 50M
Terminals and MC4
|Solar electric system portable inverter generator application|
Home lighting, fans working, camping lighting, outdoor party lighting, ect.
Portable solar DC power system, portable solar DC&AC power system, inverter controller and battery all in one box
|Why Choose Tanfon?|
|Solar power kit Feedback|
Want to get more feedbacks from our customers using the solar electric system, please contact to us.
|Tanfon Factory Solar portable inverter generator producing pictures|
3000 sets solar power kit battery powered generator order producing
|Solar electric system portable inverter generator Package|
Tanfon Inverter Factory in Foshan, welcome to visit our factory. (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)
|Solar electric system portable inverter generator 40' container loading|
|Solar electric system portable inverter generator Certificate|
|Solar electric system portable inverter generator FAQ|
Q1. Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.
Q2. How long is solar electric system portable inverter generator products warranty?
A2.YES, All products are at least 2 years warranty.
Q3.What is the shipping way of solar electric system portable inverter generator?
A3. Ship by sea.
Q4. What is the payment method?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / MoneyGram /Alibaba can also be used.
Q5.Can we design packaing?
A5.YES.We can customer's own packing
Q6.Can we add our logo on products?
A6.YES.you can add your logo on products.
Q7.Can we customize product?
Q8.what is TANFON solar electric system portable inverter generator after sales service
A9.during the warranty, ship free PCB by DHL or FEDEX.
Q9.what is your trade Asusurance
A10:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
