Protable DC Solar System
Portable DC solar system
  • Portable DC solar system

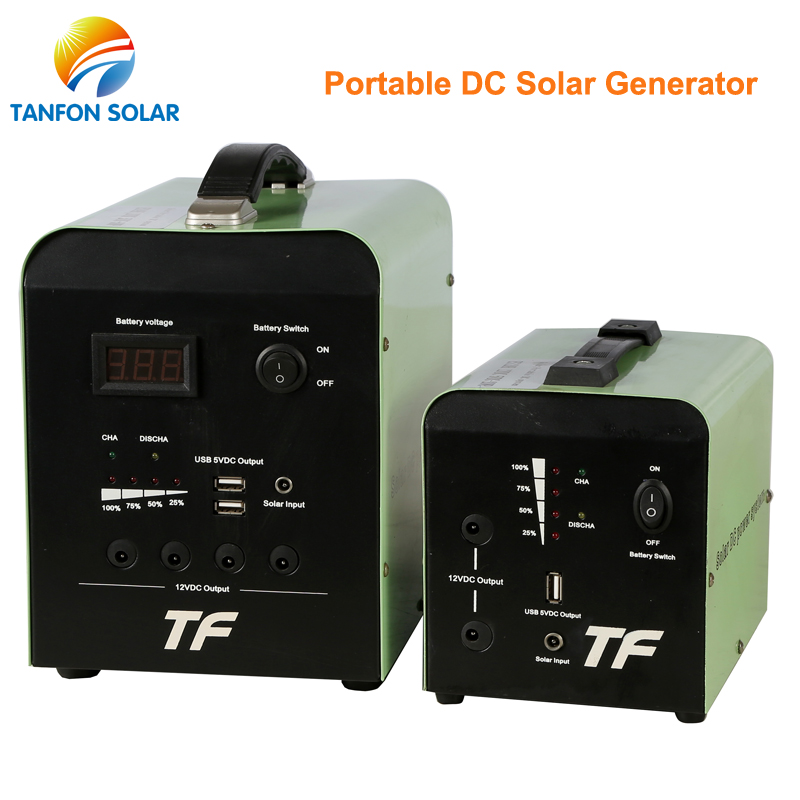

Portable DC solar system home small kit generator


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 2 set
See Price

Portable DC solar system home small kit generator

portable dc solar system

Portable DC solar system description Portable dc solar system application

Battery: 7AH ~150AH deep cycle maintenance-free battery

Output: DC12V output hole for lights

           USB 5V for mobile or MP3 MP4 charge

           45WH~1250WH power generating per day

Function: lighting and mobile charge, optional for AC grid charger

Working time: 8hrs~64hrs.

Solar panel:10W~300W

1. Normally lighting for LED bulb

2. The wild camping necessities

3. Charge phone

4. Radio

5. Home lighting use

6. With all 12VDC device



 ES-3W/4.5AH/6V Portable DC solar system

Product detail specification

 portable dc solar system kit

portable dc solar system

Solar panel

High efficiency solar panel 3W 10.8V

Size: 210*130*17mm

Battery

Built in 6V/4.5AH Lead Acid battery

Controller

Built in 6V/5A MPPT controller

Output

DC6V*2pcs / USB5V*1pcs

Other parts

3w LED bulb *2pcs with 4M cable

USB data *1pcs

size

Box: 250*200*100mm

weight

GW: 3.5KG

Produce explain

1: charge time 3w solar panel give 4.5AH battery about 8-10h

2: working time, 2pcs 3W LED bulb lighting about can lighting 4-8h

3: Function: overcharge protect. Overdischarge protect . Battery status

4: Working temperature: - 20℃ - + 55℃



ES-10W/7AH/12V Portable DC solar system

Product detail specification

portable dc solar system

Solar panel

High efficiency solar panel 10W 18V

Size: 340*260*17mm with 4M cable

Battery

Built in 12V/7AH Lead battery

Controller

Built in 12V/5A MPPT controller

Output

DC12V*2pcs / USB5V*1pcs

Other parts

3w LED bulb *2pcs with 4M cable

USB data *1pcs

size

Solar panel packing : 360*280*35mm

Box packing: 300*250*300mm

weight

GW: 7.5KG

Produce explain

1: charge time 10w solar panel give 7AH battery about 8-10h

2: Working time, 2pcs 3W LED bulb lighting about can lighting 5-10h

3: Function: overcharge protect. Overdischarge protect . Battery status

4: Working temperature: - 20℃ - + 55℃



 ES-20W/12AH/12V Portable DC solar system

Product detail specification

 portable dc solar system

Solar panel

High efficiency solar panel 20W 18V

Size: 340*470*25mm

Battery

Built in 12V/12AH Lead Acid battery

Controller

Built in 12V/5A MPPT controller

Output

DC12V*2pcs / USB5V*1pcs

Other parts

3w LED bulb *2pcs with 4M cable

USB data *1pcs

size

Solar panel packing : 360*500*40mm

Box packing: 300*250*300mm

weight

GW: 12KG

Produce explain

1: charge time 20w solar panel give 12AH battery about 7-8h

2: working time, 2pcs 3W LED bulb lighting about can lighting 15-20h

3: Function. overcharge protect. Overdischarge protect . Battery status

4: Working temperature: - 20℃ - + 55℃



ES-50W/24AH/12V Portable DC solar system

 Product detail specification

portable dc solar system

Solar panel

High efficiency solar panel 50W 18V

Size: 550*670*30mm

Battery

Built in 12V/24AH Lead battery

Controller

Built in 12V/10A MPPT controller

Output

DC12V*4pcs / USB5V*2pcs

Other parts

3w LED bulb *2pcs with 4M cable

5w LED bulb *2pcs with 4M cable

USB data *2pcs

size

Solar panel packing : 600*720*50mm

Box packing: 350*300*400mm

weight

GW: 25KG

Produce explain

1: charge time 50w solar panel give 24AH battery about 6-8h

2: working time, 2pcs 5W LED bulb lighting about can lighting 20-30h

3: Function: overcharge protect. Overdischarge protect . Battery status

4: Working temperature: - 20℃ - + 55℃



ES-100W/50AH/12V Portable DC solar system

 Product detail specification

portable dc solar system

Solar panel

High efficiency solar panel 100W 18V

Size: 1061*670*30mm

Battery

Built in 12V/50AH Lead battery

Controller

Built in 12V/15A MPPT controller

Output

DC12V*5pcs / USB5V*2pcs

Other parts

3w LED bulb *3pcs with 4M cable

5w LED bulb *2pcs with 4M cable

USB data *2pcs

size

Solar panel packing : 1200*720*50mm

Box packing: 500*300*450mm

weight

GW: 45KG

Produce explain

1: charge time 100w solar panel give 50AH battery about 6-8h

2: working time, 2pcs 5W LED bulb lighting about can lighting 40-50h

3: Function: overcharge protect. Overdischarge protect . Battery status

4: Working temperature: - 20℃ - + 55℃

Solar Generator Factory Pictures:

portable dc solar system

 3000 sets portable solar generator DC power system big order from South Africa
