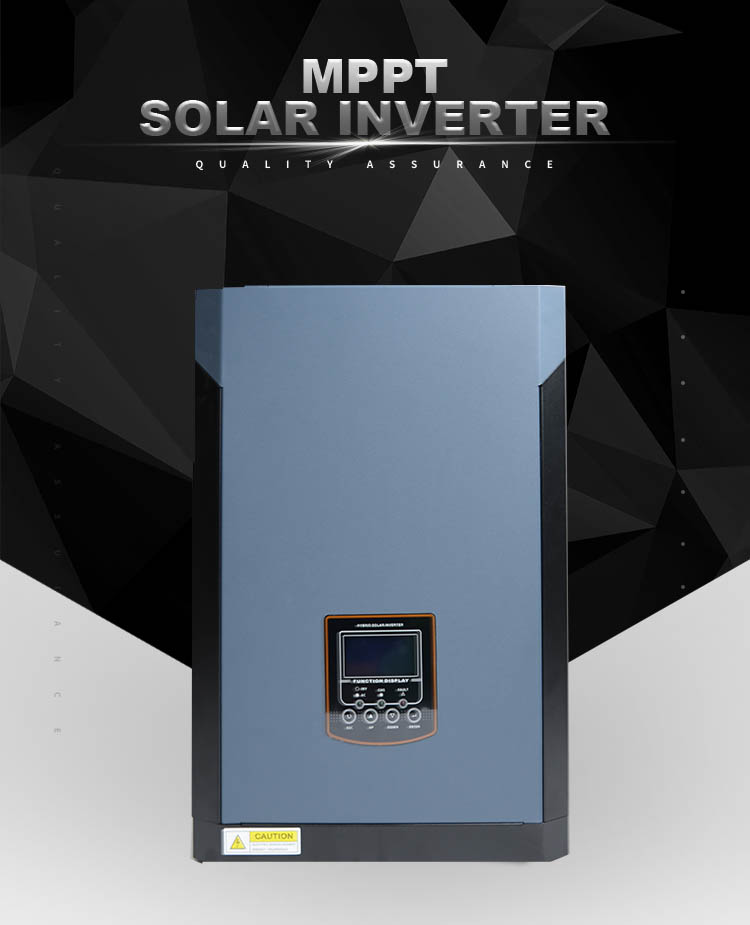

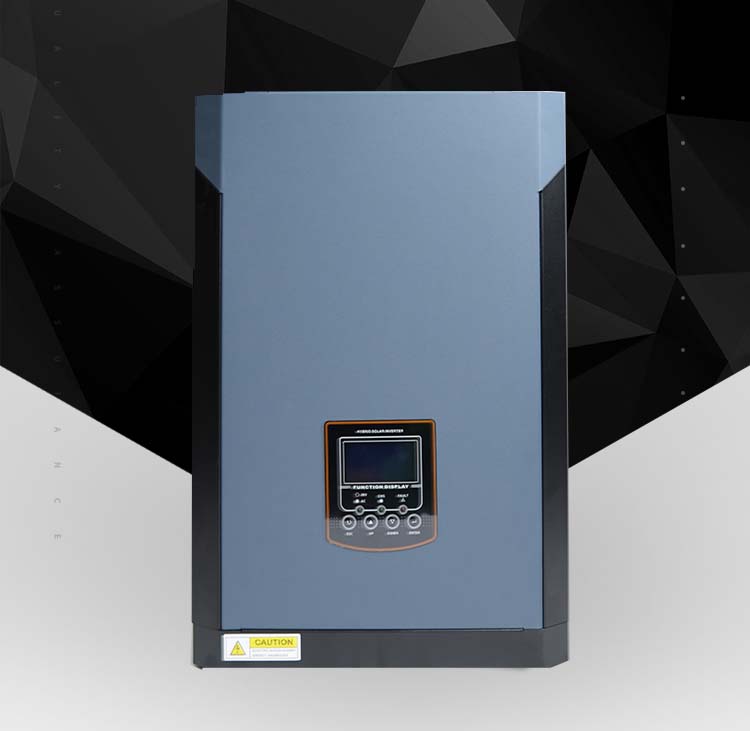

Features: Pure sine wave inverter Built-in MPPT solar charge controller Selectable input voltage range for home appliances and personal computers. Selectable charging current based on applications Configurable AC/Solar in
Place Of Origin: Foshan, Guangdong Province, China
BrandName: TANFON
MOQ: 1 set,Accpet OEM &ODM
Certificate: ISO, ETL, TUV, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
|
MODEL |
Victor NM II-2000-24 |
Victor NM II-3200-24 |
Victor NM II-5200-48 |
|
Rated Power |
2000VA/2000W |
3200VA/3200W |
5200VA/5200W |
|
INPUT |
|||
|
Voltage |
230VAC |
||
|
Selectable Voltage Range |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
||
|
OUTPUT |
|||
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
||
|
Surge power |
4000VA |
6400VA |
10400VA |
|
Efficiency(Peak) |
97% |
||
| Efficiency(Peak) Battery to INV | 94% | ||
|
Transfer Time |
10ms (for personal computers) 20ms (for home appliances) |
||
|
Wave form |
Pure Sine Wave |
||
|
BATTERY & AC CHARGER |
|||
|
Battery Voltage |
24VDC |
24VDC |
48VDC |
|
Floating Charge Voltage |
27VDC |
27VDC |
54VDC |
|
Overcharge Protection |
33VDC |
33VDC |
63VDC |
|
Maximum charge current |
40A |
80A |
63A |
|
SOLAR CHARGER |
|||
|
MAX.PV Array Power |
2000W |
4000W |
5000W |
|
MPPT Range@ Operating Voltage |
120~450VDC | ||
|
Maximum PV Array Open Circuit Voltage |
500VDC |
||
|
Maximum Charging Current |
60A |
80A |
80A |
|
Maximum Efficiency |
98% |
||
|
PHYSICAL |
|||
|
Dimension.D*W*H(mm) |
100*300*440 |
||
|
Net Weight (kgs) |
8kg |
9kg |
10kg |
| Communication interface | USB/RS232/GPRS/WIFI | ||
|
OPERATING ENVIRONMENT |
|||
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
||
|
Operating Temperature |
0°C to 55°C |
||
|
Storage Temperature |
-15°C to 60°C |
||
Why Choose TANFON solar inverter Products?
1.Sample service:Applicable to quality test,function test etc
2.Repair service:Two year warranty
3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .
4.ODM service:Powerful R&D department can provide professional technical support
5.OEM services:More than 100 pieces ,you can decide the trademark and package
6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.
Solar inverter solar Seven Management Systems:
| Name | Picture | Advantage |
| Supply System |  |
Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier. MOS tube adopts an imported IR brand. |
| QC System |  |
ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. |
| Production System |  |
Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability |
| Factory Inspection System |  |
Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. |
solar inverter packing&load container:
Certificate
We have ISO9001, CE, RoHS ;have pass COC,IEC62109,The test report will be applied to Algeria, Botswana, Côte d'Ivoire, Ethiopia, Gabon, Ghana, Kenya (PVoC), Kuwait (KUCAS), Lebanon, Libya, Mauritius, Nigeria (SONCAP), Philippines, Qatar, Russia, Saudi Arabia, Tanzania / Sangria Zimbabwe, Zimbabwe and Morocco countries
We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
