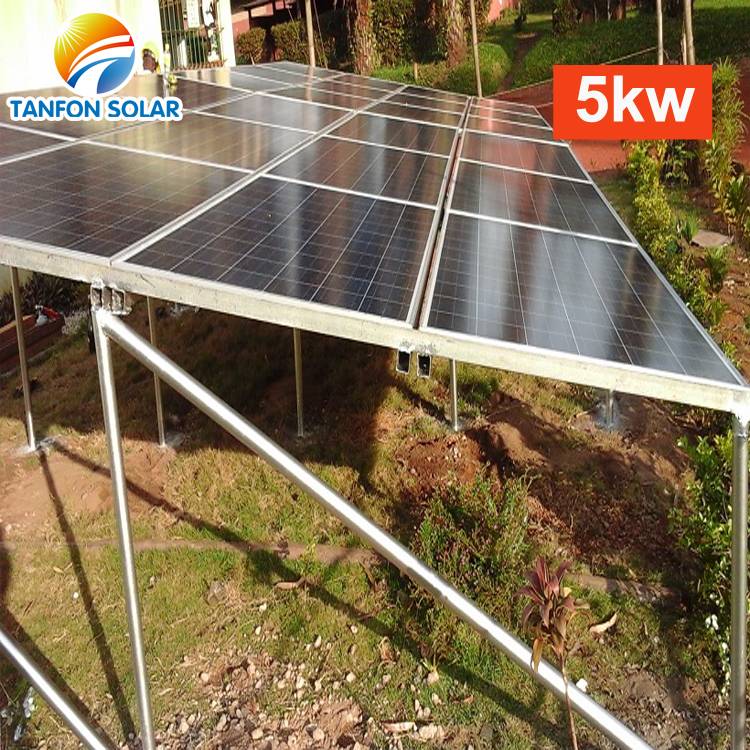

On and off grid solar system 5 kw with battery storage


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

On and off grid solar system 5 kw with battery storage

solar power projects



Tanfon factory supply: off grid solar system, on grid solar system, on and off grid hybrid solar system, off grid solar system without battery.



We provide complete set solar power system that include all parts for customers, installation tool can be choose. Customers can easy install the system according to our detailed connect diagram and user’s manual.

On and off grid solar system working way:

  • Inverter transfer solar panel DC current to AC current, supply solar power to run loads directly, if solar power is excess, the power will charge to battery automatically. When the battery power is full also, inverter will send the excess power to grid. grid power to the load(by pass).
  • When the grid shut down, it will switch to off grid status, transfer solar DC power to AC power,supply solar power directly to the load.When the solar panel can not provide enough power to the load, it will use battery power
  • When the solar panel only generate few power, it will switch to grid, supply



TANFON on&off grid solar power system- OFP-5KW

Solar panel rated output power: 5325W

Allowable max loads power : 5KW/6KVA

 250 watts mono solar panel

FS355W mono solar panel(poly optional)

Vmp: 38.39V        Voc: 47.13V         Imp: 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance:25 years 80 % 20 year 85% 10 years 90%

Connect: 5pcs panels in series as a string, each string connect to PV combiner

Inverter power: BF5KW/96V

Max input voltage: 280VDC

Max input current: 33A

Less standby power consumption

Soft or variable frequency start option

Working way: solar power to inverter take the load first,excess power sale to grid

output: 220V or 380V

on and off grid inverter 5kw
150Ah gel battery

Capacity: 12V/150AH full sealed

Solar power Gel battery

Service life: 5-6 years

Size: 483*170*239mm

Connect way: 8pcs in series as a string





Slope Rooftop or Flat rooftop including complete fittings

wind load: 55m/s, snow load: 1.5kn/m2

structure: Anodized Aluminum + stainless steel, Angle adjustable

(other type of rack can be customized as per client's requirement )

solar panel rack.jpg

solar system PV cables

4mm2 cable, (one red and one black)

International standard, with specification suitable for solar system



Solar+Grid mode

1- when plenty of solar, solar provide power to load and charge battery, excess solar is fed in to the grid.

2- when solar is not enough, solar and city power provide power to load and charge battery.

3- When AC fails, solar and battery provide power to load.

4- when no solar, city power provide power, if city power fails, battery provide power.



Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
  • Selling: Three days per time of follow-up services, video inspection.
  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour
  • The fastest will be shipped in 7 days
  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.

Solar system project update

10kw solar panel system.jpg

Customers Feedback

solar home system 5kw

Solar system high efficiency working feedback.



Tanfon factory

 solar power factory

 Tanfon home solar system certificates

 solar CE certificate



 solar system complete set packing

Shipping

Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.

FAQ

Q: What can be included for this system from TANFON?

A:This system includes: Solar panels, PV array combiner, Off grid Solar inverter, Solar panel mounting rack, PV cables.

Q: Is the solution for complete set? If not, what else are needed?

A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption.

Q: Who arranges the shipping?

A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters can be about 20 years

Q:what is TANFON solar system after sales service?

A: during the warranty ,Solar panel--ship free new one ;battery—ship the new one ,

Inverter/controller---ship free PCB by DHL or Fedex.

Q:what is your trade Assurance?

A:100% product quality protection

100% product on time shipment protection

100% payment protection for your covered amount

 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
