Solar Street Light System
solar powered led street lights
  • solar powered led street lights

solar street lighting system 60w solar powered led light price list


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar led light 30W



TANFON Solar powered street lights are a very good example on what can be done with solar energy. A growing number of solar street lighting projects are running in Africa, Asia and the Middle East. The concept is straightforward and we shall see more countries migrating this way. Well chosen, solar street lights are cost-effective, cost-saving and reliable.



Solar street lighting system Applications
  • Led Solar Street Light
  • Pathway Lighting
  • Ramp Lighting
  • Private Road Lighting
  • Sidewalk Lighting
  • Remote Area Lighting
  • Square Lighting
  • Jogging and Bike Path Lighting
  • Perimeter Security Lighting
  • Farm & Ranch Lighting
  • Wildlife Area Lighting
  • Park Lighting
  • Gate Lighting
  • Yard Lighting
  • Parking Lot Lighting
  • Campus Lighting
  • Boat Dock Lighting



solar street lighting system



TANFON 60W solar street lighting system

solar street lighting system

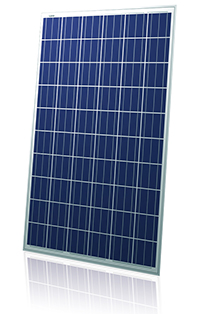

 Solar panel

 150W polycrystalline solar panel

 Vmp: 17.2V   Imp: 8.72A     Voc: 21.6V

 Open current (A): 0.68A

 Cell Efficiency(%): 18%

 Size of module(mm): 1480*670*35

 Weight per piece(kg): 10.9KG

 Warranty: 10years product warranty and 25years 80% of power

solar street lighting system

 LED Lamp

 Power: 60W LED  BridgeLux LED chip

 Lumen (LM): >6600LM

 LED color temperature: 3000K-7000K     Input voltage: DC24V

 Dimension:550*250*70mm     Drive power efficiency:0.95

 Storage temperature:﹣40℃~﹢60℃

 Long Life span: up to 60,000 hours

 Warranty: 3years product warranty and 10years 80% of power

solar street lighting system

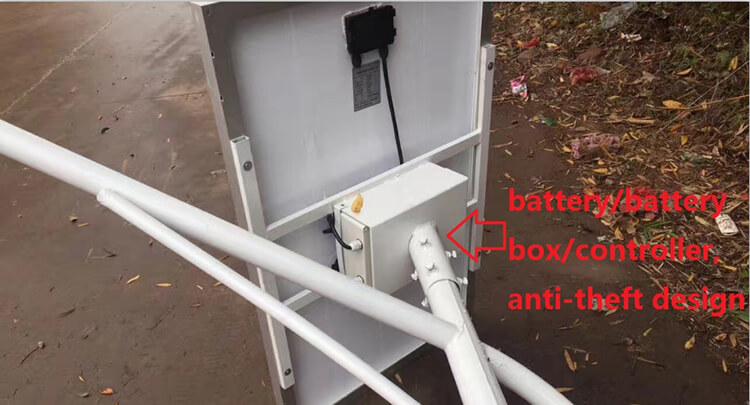

 24V/48AH Lithium battery, 24V10A controller fix inside the battery box, anti-theft  design.

 Battery: Standard charge voltage:25.2V

 Discharging cut off voltage:18V

 Operating temperature: Charge 0~60°C Discharge -20~60°C

 Max.charge current:0.5C     Max.discharge current:1C

 Controller: Equalization voltage(10minutes):29.6V

 Boost voltage(10minutes):28.8V Float voltage:27.2V

 Normal voltage:12V/24V,automatic recognition

solar street lighting system

 Pole

 Total high:7 meters  Material: high quality galvanized steel

 Top diameter:60mm    Bottom diameter:160mm

 Wall thickness:3mm   Material:Q235

 Weight: 60kg    With single arm.

 With power coating.  With solar panel bracket

 With 300mmX300mmX16mm base plate.



solar street lighting system

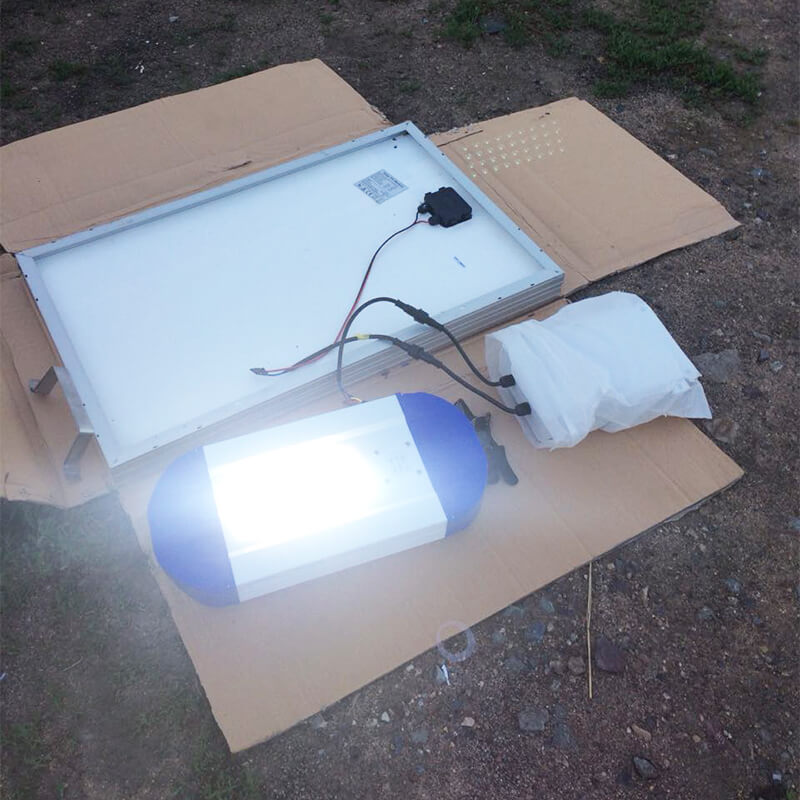

solar panel street lights


solar panel street lights

TANFON led solar street light workshop

solar street lighting system

solar street lighting system

solar panel street lights

Led solar street light SGS inspection

solar street lighting system



Solar Street Lighting System FAQ

Q:Are you factory or trading company?

A: We have 3000 sqm modern factory, with 4 production lines. We have 40 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.

Q.How long does the solar power can be stored of solar street lighting system?

A: Solar power of the integrated solar panel street lights can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. How does your light work?

A: Operating mode: Light control + Human Sensing control. Controller uses Motion sensor. people come full power, people leave 30% power.

Q: Do you supply pole?

A: Yes, we supply you complete solar street lighting system with pole. Well, you also can buy the pole in your local place.

Q: Can your solar street lighting system be installed by the sea?

A: Yes, of course. The whole hot-dip galvanized lamp pole is used for good anti-corrosion and windproof performance.

Q. What is the mounting height?

A: We suggest thesolar powered led street lights of 20W, 30W, 40W for 3-5m, the solar powered led street lights of 50W, 60W, 80W for 6-8m.
