Solar Street Light System
20w led solar light system
  • 20w led solar light system

solar powered street lights 20W led lamp system for outdoor


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar powered street lights

Solar powered street lights are a very good example on what can be done with solar energy.

A growing number of solar powered street lights projects are running in Africa, Asia and the Middle East.

Some European and US cities are currently running pilot projects.

The concept is straightforward and we shall see more countries migrating this way.

well chosen, solar powered street lights are cost-effective, cost-saving and reliable.

solar powered street lights



Solar powered street lights Applications
  • solar led Street Light
  • Pathway Lighting
  • Ramp Lighting
  • Private Road Lighting
  • Sidewalk Lighting
  • Remote Area Lighting
  • Square Lighting
  • Jogging and Bike Path Lighting
  • Perimeter Security Lighting
  • Farm & Ranch Lighting
  • Wildlife Area Lighting
  • Park Lighting
  • Gate Lighting
  • Yard Lighting
  • Parking Lot Lighting
  • Campus Lighting
  • Boat Dock Lighting

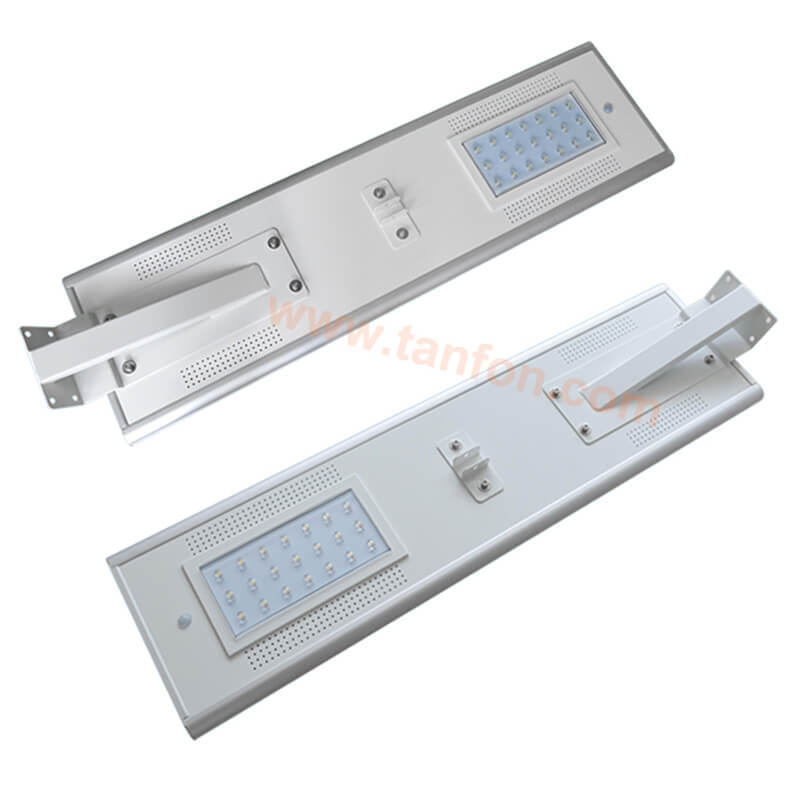

TANFON A-SLS20W solar powered street lights system
Solar panel
  • 50W/18V Monocrystalline sillicon solar panel, waterproof resign package. Sillicon chip import from Germany. PV efficiency>20%
  • Solderability and tension ensured by quality printing paste
LED Lamp
  • 20W High Lumens
  • Lumen(LM): 2800-3200
  • Chip import from USA
  • LED Chip: High Brightness Bridgelux, high efficiency, low loss, luminous flux 110lm/w
  • PHILIPS and CREE for optional
Battery
  • 17AH High efficiency Lithium Battery
  • Long life cycle, >2000 times deep cycle, 8 times of lead acid battery
  • No memory effect, highly efficient charge anytime. no reduction of capacity
  • low self-discharge rate <3% monthly
MPPT Controller
  • Multicrest MPPT tech, adapts to the solar panel which is under shadow or partly damaged
  • Auto identify day/night
  • Very low dormancy loss: 0.06W
Colour Temperature
  • 7200-8000K
Discharge time
  • Over 36 hours, considering 3-5 rainy days
Working temperature
  • -30~+60 degrees
Waterproof rate
  • IP65
Mounting height
  • Suggest 5M, install distance: 25m to 28m
Warranty
  • 3 years

Tanfon 8W-120W solar powered street lights system/Garden light is Integration design (panel+battery+LED lamp all in one box)

solar powered street lights


solar powered street lights

TANFON solar powered street lights factory

solar led street light

solar powered street lights

Solar powered street lights system SGS inspection

solar powered street lights

Solar powered street lights FAQ

Q. Can I have a sample order for solar powered street lights?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q.How long does the solar power can be stored?

A:Solar power of the integrated solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How to Choose the solar powered street lights System Voltage ? 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light.

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. How to control the luminance of the solar powered street lights?

A:Our solar street light adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.

Q. What is the mounting height?

A: We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.
