Solar Street Light System
60w-solar-light-system
  • 60w-solar-light-system

solar led street light 24v lithium battery 60w solar powered lights


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar led street light

Solar powered street lights are a very good example on what can be done with solar energy.

A growing number of solar street lighting projects are running in Africa, Asia and the Middle East.

Some European and US cities are currently running pilot projects.

The concept is straightforward and we shall see more countries migrating this way.

well chosen, solar street lights are cost-effective, cost-saving and reliable.

solar led street light



Solar led street light Applications
solar led Street Light Pathway Lighting Ramp Lighting
Private Road Lighting Sidewalk Lighting Remote Area Lighting
Square Lighting Jogging and Bike Path Lighting Perimeter Security Lighting
Farm & Ranch Lighting Wildlife Area Lighting Park Lighting
Gate Lighting  Yard Lighting Parking Lot Lighting
Campus Lighting Boat Dock Lighting



TANFON A-SLS60W solar street / Garden Light system
Solar panel

85W/18V Monocrystalline sillicon solar panel, waterproof resign package. Sillicon chip import from Germany. PV efficiency>19%

Solderability and tension ensured by quality printing paste

LED Lamp

60W High Lumens

Lumen(LM): 6500-7000

Chip import from USA

LED Chip: High Brightness Bridgelux, high efficiency, low loss, luminous flux 110lm/w
PHILIPS and CREE for optional

Battery 42AH High efficiency Lithium Battery
Long life cycle, >2000 times deep cycle, 8 times of lead acid battery
No memory effect, highly efficient charge anytime. no reduction of capacity
low self-discharge rate <3% monthly
MPPT Controller Multicrest MPPT tech, adapts to the solar panel which is under shadow or partly damaged
Auto identify day/night
Very low dormancy loss: 0.06W
Colour Temperature 7200-8000K
Discharge time Over 36 hours, considering 3-5 rainy days
Working temperature -30~+60 degrees
Waterproof rate IP65
Mounting height Suggest 8M, install distance: 25m to 30m
Warranty 3 years

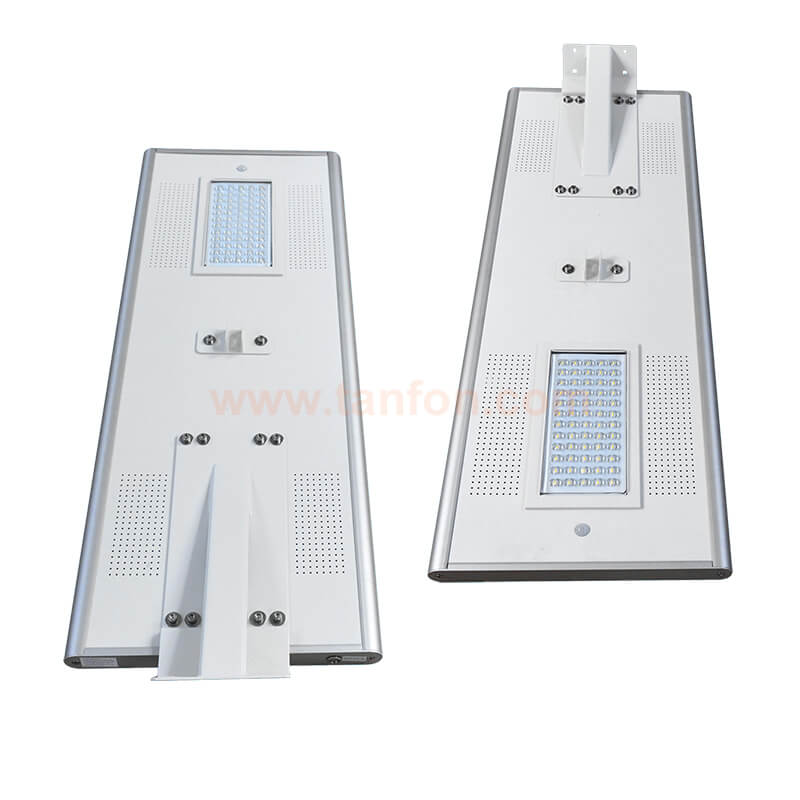

Tanfon 8W-120W solar street light system/Garden light is Integration design (panel+battery+LED lamp all in one box)

solar led street light


solar led street light

TANFON SOLAR LED STREET LIGHT FACTORY

solar led street light

solar led street light

Solar led street light system SGS inspection

solar led street light

FAQ

Q. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q.How long does the solar power can be stored?

A:Solar power of the integrated solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How to Choose the System Voltage ? 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light.

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. How to control the luminance of the solar street light?

A:Our solar street light adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.

Q. What is the mounting height?

A: We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.
