Solar Street Light System
solar street light system
  • solar street light system
  • solar led light system installation

solar led street light system pv panel and lamp separated design


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar led street light system pv panel and lamp separated design

solar led light 30W



* Solar powered street lights are a very good example on what can be done with solar energy.

* A growing number of solar street lighting projects are running in Africa, Asia and the Middle East.

* Some European and US cities are currently running pilot projects.

* The concept is straightforward and we shall see more countries migrating this way.

* well chosen, solar street lights are cost-effective, cost-saving and reliable.



Applications

· solar led Street Light          · Pathway Lighting                              · Ramp Lighting

· Private Road Lighting         · Sidewalk Lighting                             · Remote Area Lighting

· Square Lighting                  · Jogging and Bike Path Lighting        · Perimeter Security Lighting

· Farm & Ranch Lighting      · Wildlife Area Lighting                        · Park Lighting

· Gate Lighting                      · Yard Lighting                                    · Parking Lot Lighting

· Campus Lighting                · Boat Dock Lighting



Basic specification

TANFON B-SLS30W solar street Light system

Solar panel:



65W/18V Monocrystalline sillicon solar panel, waterproof resign package. Sillicon chip import from Germany. PV efficiency>19%

Solderability and tension ensured by quality printing paste

LED Lamp:

30W High Lumens

Lumen(LM): 3900-4500

Chip import from USA

LED Chip: High Brightness Bridgelux, high efficiency, low loss, luminous flux 110lm/w
PHILIPS and CREE for optional

Battery:

30AH High efficiency Lithium Battery
Long life cycle, >2000 times deep cycle, 8 times of lead acid battery
No memory effect, highly efficient charge anytime. no reduction of capacity
low self-discharge rate <3% monthly

MPPT Controller:

Multicrest MPPT tech, adapts to the solar panel which is under shadow or partly damaged
Auto identify day/night
Very low dormancy loss: 0.06W

Colour Temperature

6500-7000K

Discharge time

Over 36 hours, considering 3-5 rainy days

Working temperature

-30~+60 degrees

Waterproof rate

IP65

Mounting height

Suggest 7M, install distance: 25m to 30 m

Warranty

 3 years



Tanfon 15W-80W solar street light system/Garden light is Integration design (battery+LED lamp all in one box)



Feature:

  • Wireless application. Integrated LED light, lithium battery, micro-controller and other accessories into one system, simple and stylish. solar panel direction is adjustable.
  • Micro-computer controlled. Combined light control / time control system and microwave induction system perfectly, ensure whole system more energy-efficient.
  • Easy installation. No power required, no cables required, easy installation in 5 minutes.
  • Good heat dissipation. Solar panel, battery and light body do not connect directly, they will not conduct heat to each other, to support good heat dissipation and long lifetime.
  • Super brightness light, light efficiency is up to 210LM/W. At the same illumination, lower watt available.
  • Use lithium battery, longer lifetime, anti-theft design.
  • Modular design. All components are modular design and in standardized production. Battery can be easily replaced if needed.
  • Low cost.Compared with traditional solar led lights, much lower cost, easy to transport.



Half separated design solar street light system Advantage

1) Led lamp, light controller and battery in one box design, separate with solar panel, easy for solar panel mounting angular adjustment.

2) Long lighting time up to 36-48 hours

3) Energy Saving LED garden/street lights

5) Pole optional, easy to install

6) Have photo sensor turn on at night, turn off daytime, also can according customer design the working time

solar light system

solar led light system factory

solar light pole and mounting kits

Tanfon Sercive

Bangladesn solar street light system project



solar led light system basketball court installation from our clients

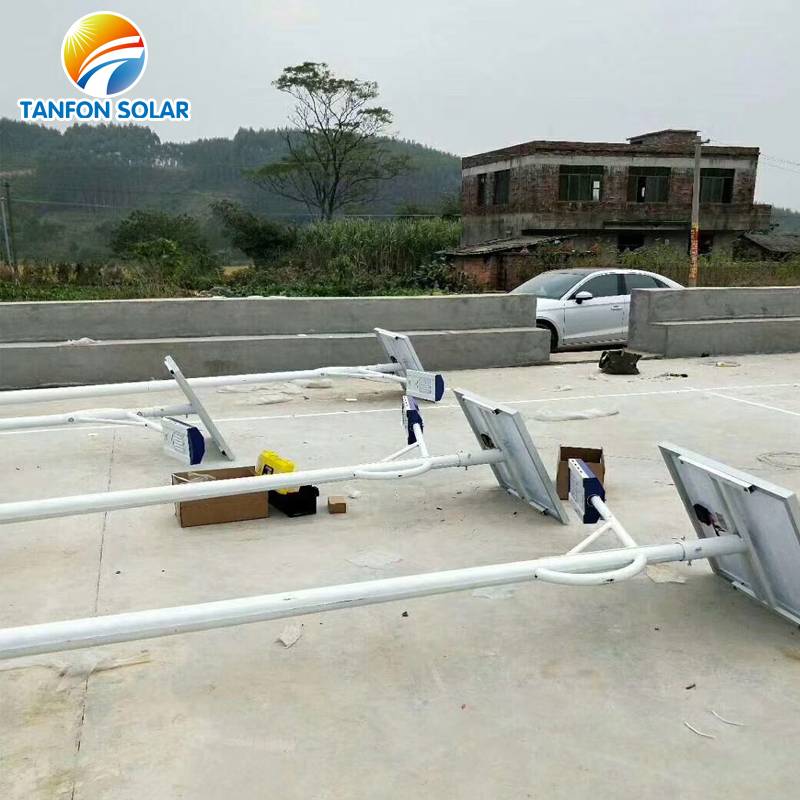

solar street light system project





Our Factory

Address:One of the third floor, NO.3 Building, Lianfeng industrial zone, zhangcha, Chancheng District, Foshan city, Guang dong, China

solar street light factory

Tanfon Solar LED street light SGS Inspection

Tanfon solar led street light SGS inspection



FAQ

Q. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q.How long does the solar power can be stored?

A:Solar power of the integrated solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How to Choose the System Voltage 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. What is the advantage of the battery?

A: Our integrated solar street light adopts long life lithium battery for storing energy, charging temperature at day time is between: 0℃-60,when temperature goes lower than 0,the control system will stop automatically to protect the batteries, and it will revive to charge the batteries while temperature goes higher than 0.Discharging temperature at night is between:-20-60, any ambient beyond it will bring damage to the batteries.

Q. How to control the luminance of the solar street light?

A:Our solar street light adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.

Q. What is the mounting height?

A: We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.



Packaging & Shipping

 solar street light li-ion battery

Solar Street Light Container Loading to Ghana



Certifications

solar street led light system CE and RoHS certificate

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
