Solar Street Light System
solar-led-light-kit
  • solar-led-light-kit

small outdoor solar garden lights 25w solar led light kit


Product Specification:

  • Place Of Origin: Foshan, Guangdong Province, China
  • BrandName: TANFON SOLAR
  • MOQ: 1 set
See Price

solar led light kit

Solar powered street lights are a very good example on what can be done with solar energy.

A growing number of solar powered street lights projects are running in Africa, Asia and the Middle East.

Some European and US cities are currently running pilot projects.

The concept is straightforward and we shall see more countries migrating this way.

well chosen, solar powered street lights are cost-effective, cost-saving and reliable.

solar led light kit



Solar led light kit Applications
  • solar led Street Light
  • Pathway Lighting
  • Ramp Lighting
  • Private Road Lighting
  • Sidewalk Lighting
  • Remote Area Lighting
  • Square Lighting
  • Jogging and Bike Path Lighting
  • Perimeter Security Lighting
  • Farm & Ranch Lighting
  • Wildlife Area Lighting
  • Park Lighting
  • Gate Lighting
  • Yard Lighting
  • Parking Lot Lighting
  • Campus Lighting
  • Boat Dock Lighting



solar panel lights



TANFON A-SLS25W solar led light kit system
Solar panel
  • 55W/18V Monocrystalline sillicon solar panel, waterproof resign package. Sillicon chip import from Germany. PV efficiency>20%
  • Solderability and tension ensured by quality printing paste
LED Lamp
  • 25W High Lumens
  • Lumen(LM): 3500-4000
  • Chip import from USA
  • LED Chip: High Brightness Bridgelux, high efficiency, low loss, luminous flux 140lm/w-160lm/w
  • PHILIPS and CREE for optional
Battery
  • 20AH LiFePO4 12.8V Lithium battery
  • Long life cycle, >2000 times deep cycle, 8 times of lead acid battery
  • No memory effect, highly efficient charge anytime. no reduction of capacity
  • low self-discharge rate <3% monthly
MPPT Controller
  • Multicrest MPPT tech, adapts to the solar panel which is under shadow or partly damaged
  • Auto identify day/night
  • Very low dormancy loss: 0.06W
Solar LED Light Kit Pole
  • 1) Material: iron Q235
  • 2) Height: 5M
  • 3) Wall thickness: 3.0mm
  • 4) Production: 140 turn 89
  • 5) Flange: 280 * 280mm
  • 6) Aperture: 200 * 200mm
  • 7) Hot galvanized, spray milky appearance fluorocarbon
Colour Temperature
  • 6500-7000K
Discharge time
  • Over 36 hours, considering 3-5 rainy days
Working temperature
  • -40~+60 degrees
Waterproof rate
  • IP65
Warranty
  • 3 years

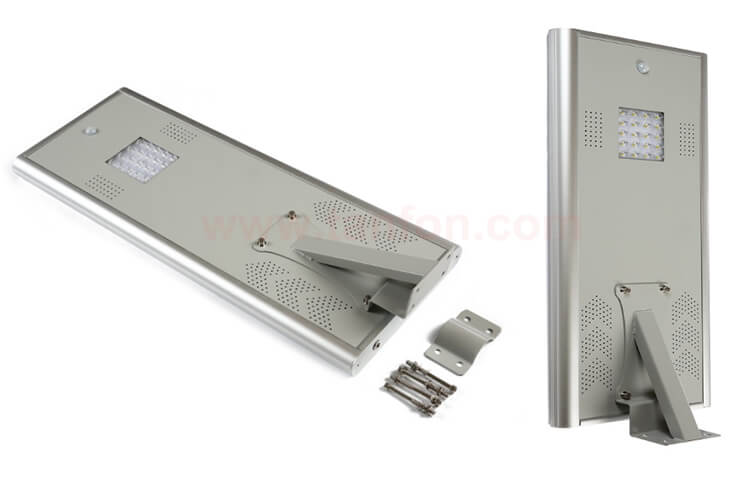

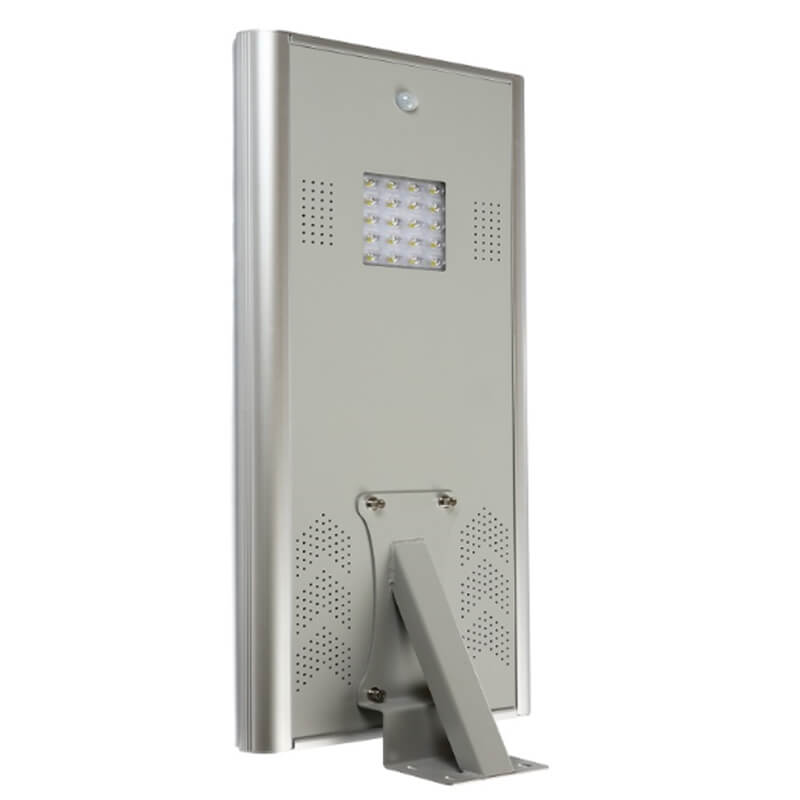

Tanfon 8W-120W solar led light kit/Garden light is Integration design (panel+battery+LED lamp all in one box)

solar led light kit

solar led light kit



solar led light kit


solar led light kit

TANFON solar led light kit workshop

solar led light kit

solar led light kit

Solar led light kit SGS inspection

solar led light kit

25W solar led light kit FAQ

Q:Are you factory or trading company?

A: We have 3000 sqm modern factory, with 4 production lines. We have 40 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.

Q.How long does the solar power can be stored of solar led light kit?

A:Solar power of the integrated solar led lights can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. How to control the luminance of the solar led light kit?

A:Our solar panel lights adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.

Q. What is the mounting height?

A: We suggest the solar led lights of 20W, 30W, 40W for 3-5m, the solar led lights of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar led lights of 20W, 30W, 40W for 25-30m, the solar led lights of 50W, 60W, 80W for 30-35m.
